Modul Konverter Step Up Down Boost Pengganti Lm2596 Dc Xl6009 Adjustable

Detail Modul Konverter Step Up Down Boost Pengganti Lm2596 Dc Xl6009 Adjustable

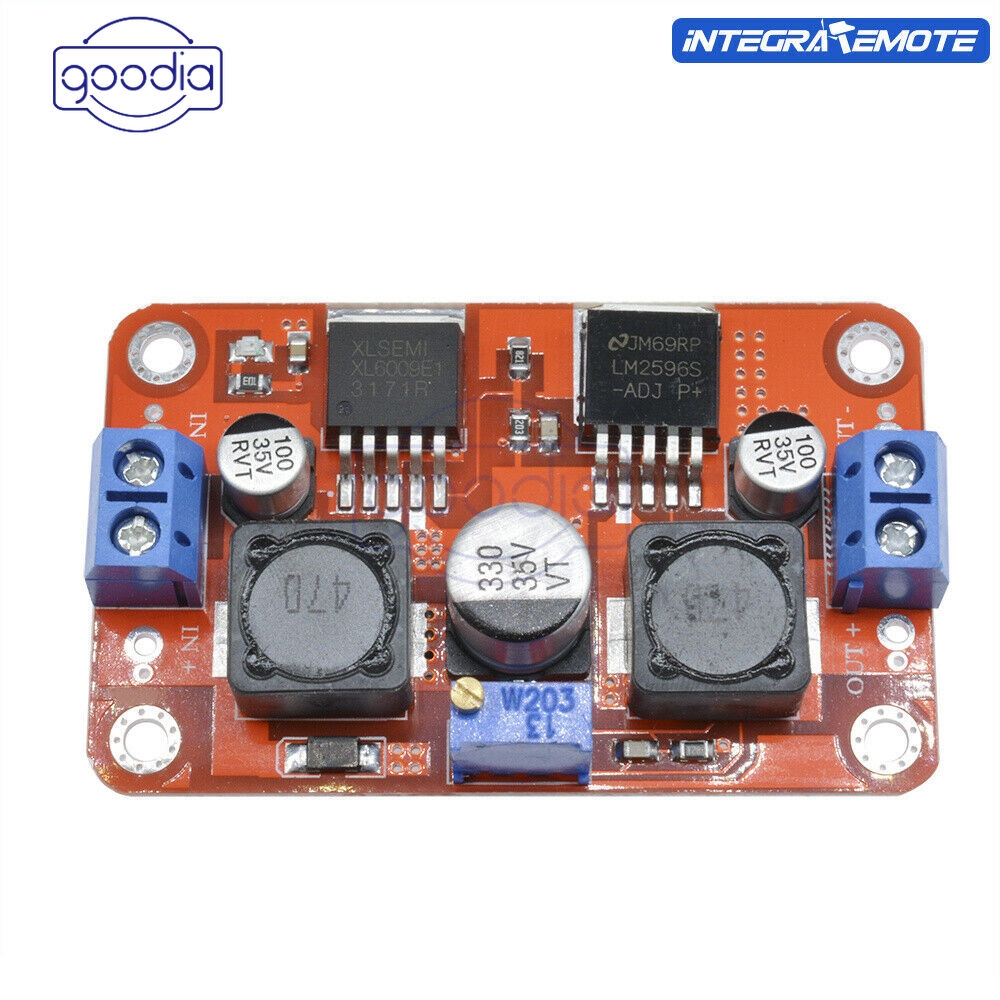

Item 1
Input: 3.5-28V.
Output: 1.25V-26V.
Output voltage independent of input voltage (3.5V-28V input, any value output 1.25V-26V).
Maximum input current 3A.
Maximum output 3A.
Rated input 1A, Output 1A.
Size:5.2cm x 3.8cm x 2cm

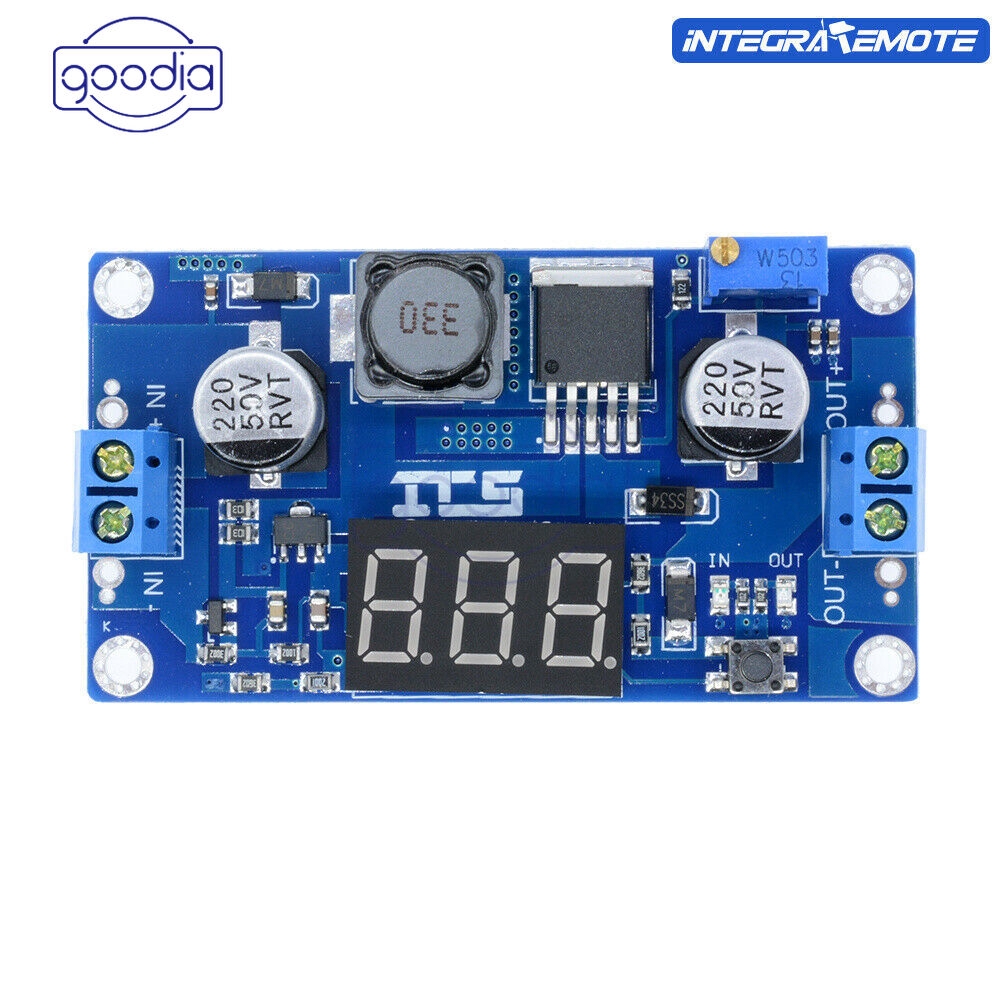

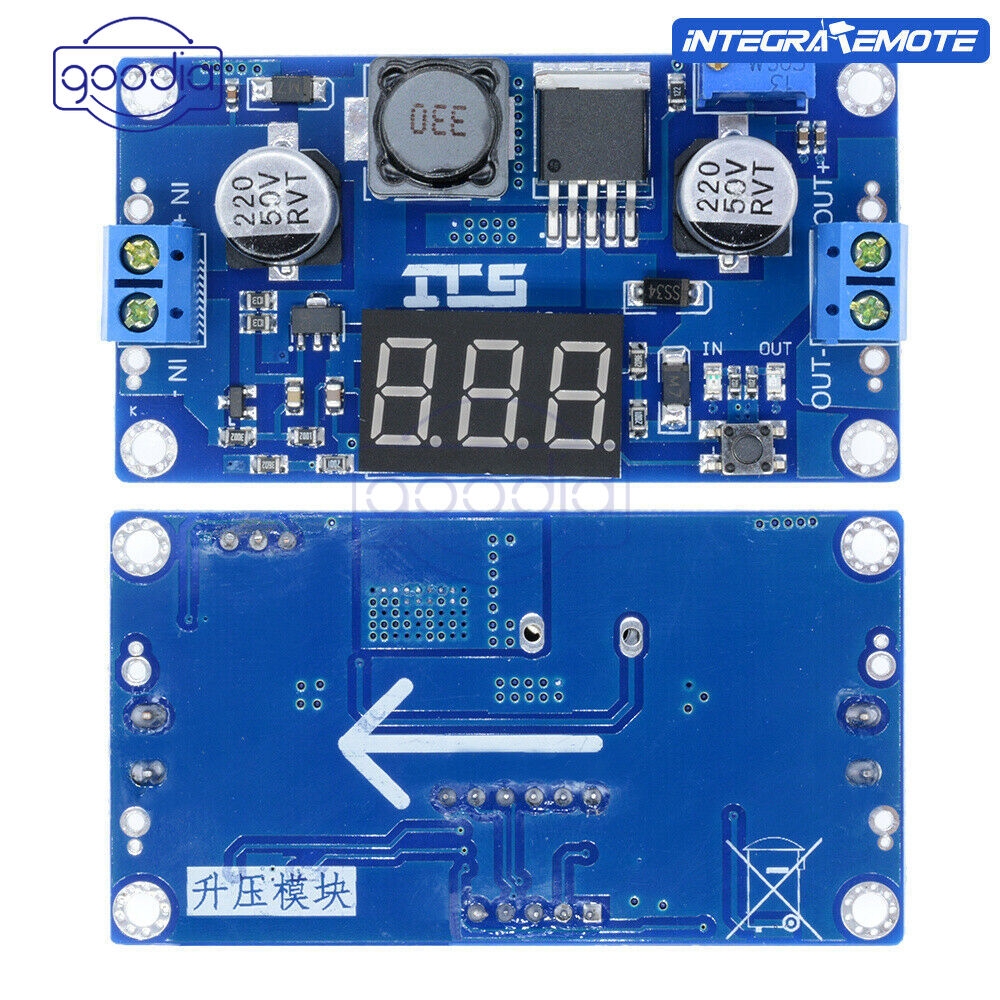

Item 2
Module features: Non-isolated boost
Rectification of non-synchronous: rectification
Input voltage 4.5V - 32V
Output voltage 5V - 55V
Input Current 4A (largest)
Conversion efficiency of 94% (maximum)
Typical efficiency of 85%
Switching Frequency 400KHz
Output ripple 50 mV
Load Regulation ± 0.5%
Voltage regulation ± 0.5%
Operating temperature -40 ℃ to +85 ℃
Dimensions 63.5 (L) * 36 (W)

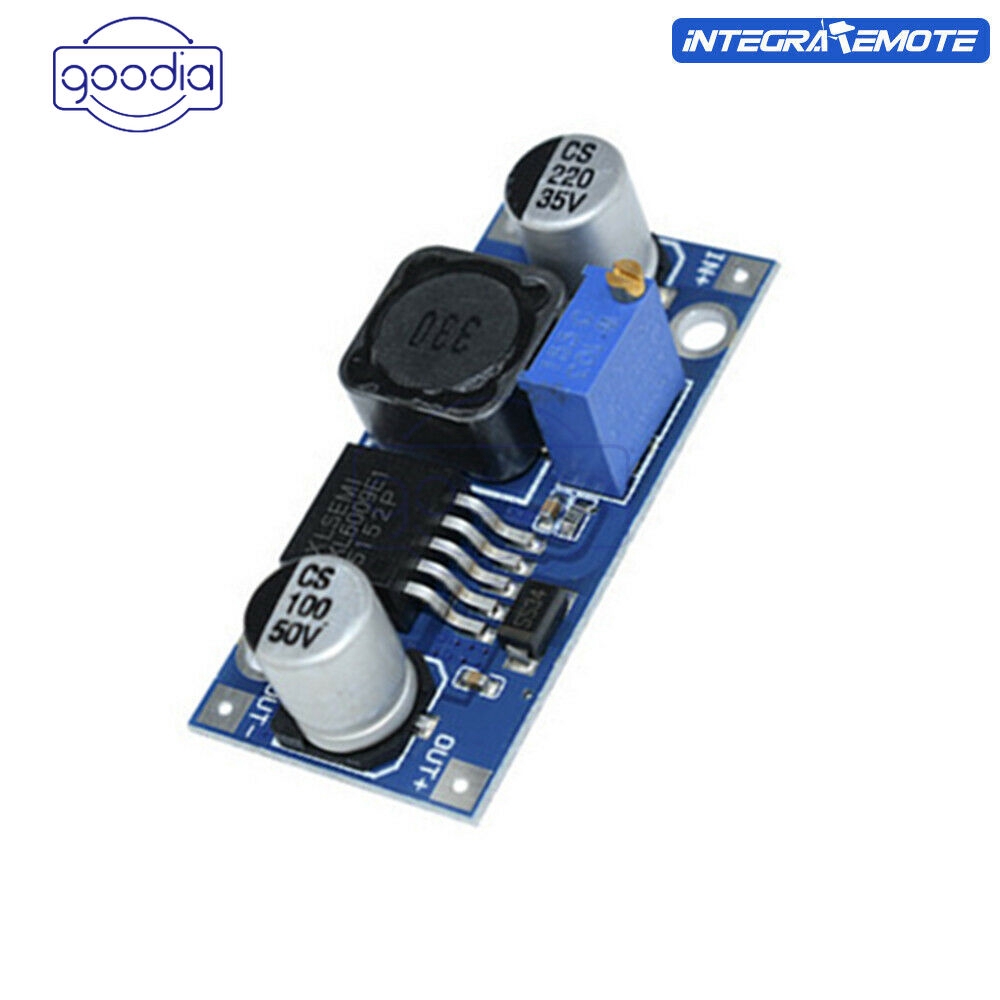

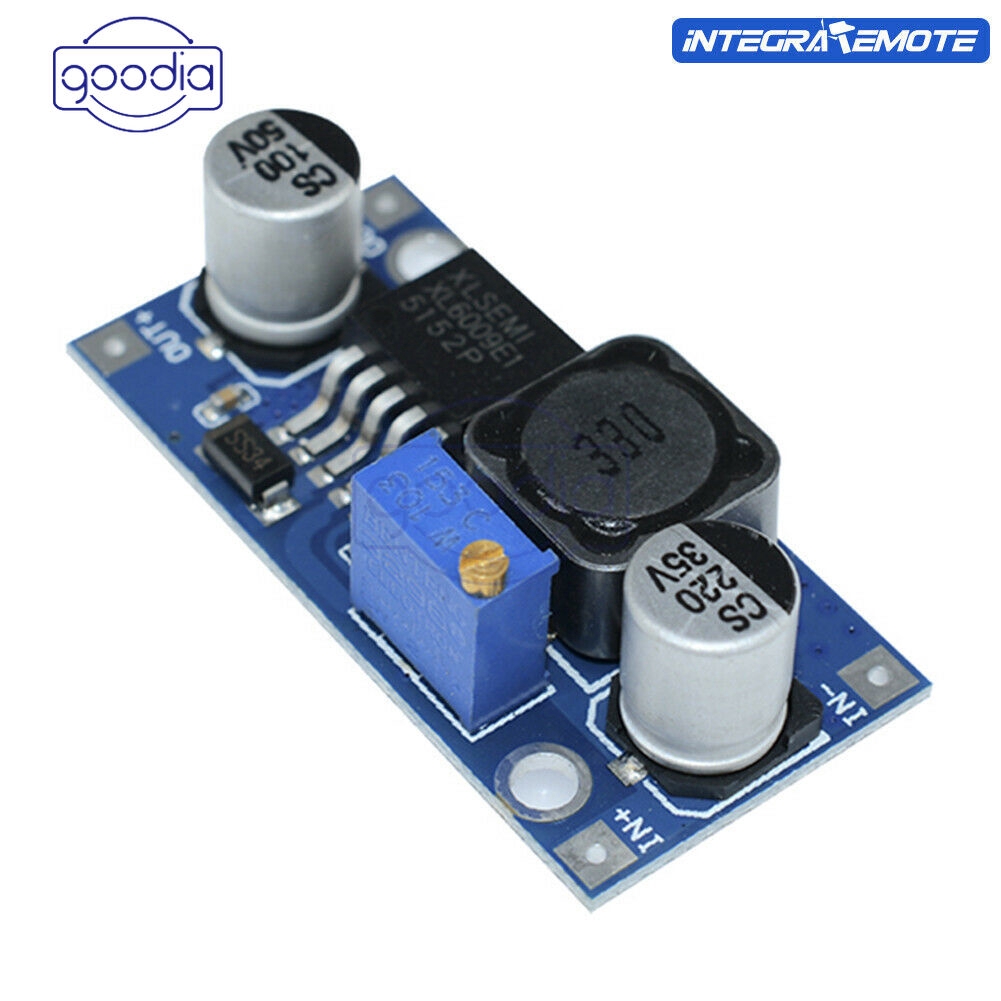

Item 3
Model Specification:
DSN6009 boost module
Module Properties: Non-isolated boost (BOOST)
Rectification: Non-Synchronous Rectification
Input Range: 3V ~ 32V
Output Range: 5V ~ 35V
Input Current: 4A (max), no-load 18mA (5V input, 8V output, no-load is less than 18mA. Higher the voltage, the greater the load current.)
Conversion efficiency: <94% (greater the pressure, the lower the efficiency)
Switching frequency: 400KHz
Output Ripple: 50mV (the higher the voltage, the greater the current, the greater the ripple)
Load Regulation：± 0.5%
Voltage Regulation：± 0.5%
Operating Temperature：-40 ℃ ~ +85 ℃
Dimensions：43mm * 21mm * 14mm (L * W * H)

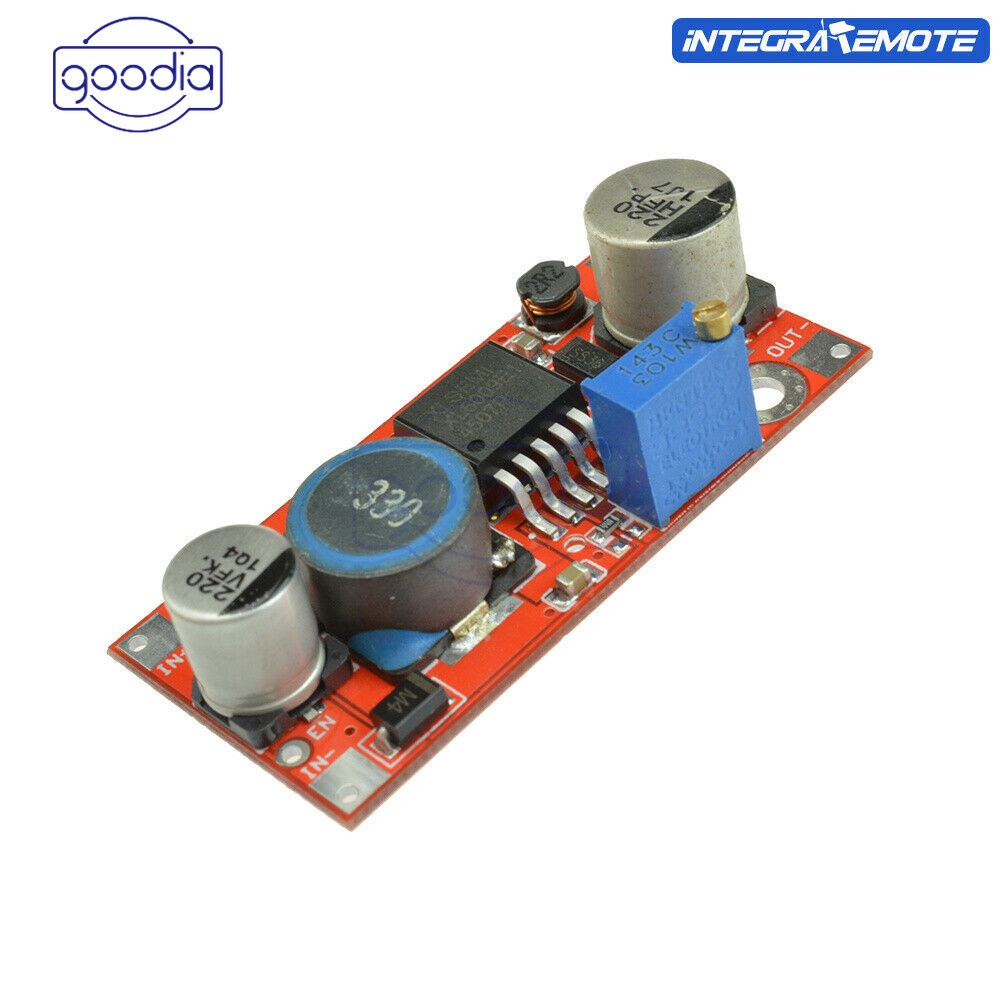

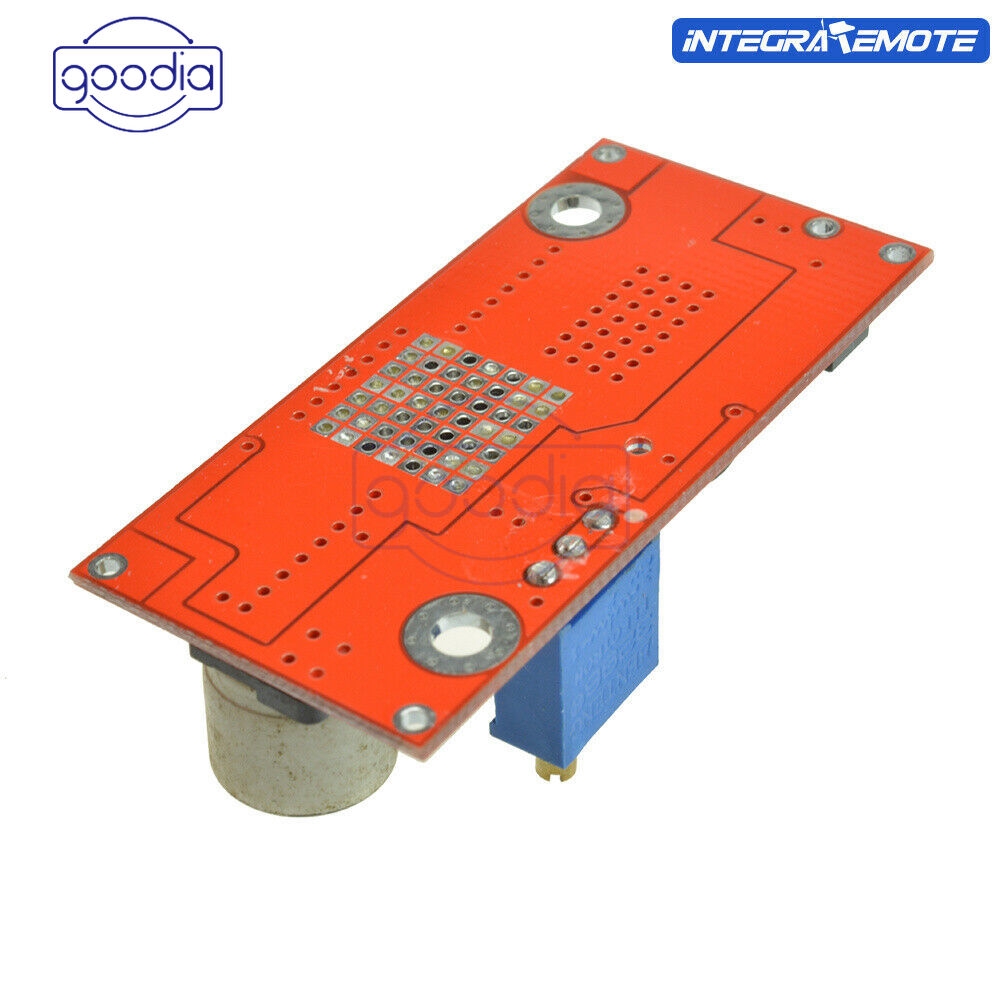

Item 4
Modules nature: Non-isolated step-up (Boost)
Rectification: Non-synchronous rectification
Input voltage: 3V-32V
Output voltage: 5V-35V
Input current: 4A (max), No-load current 18mA
Conversion efficiency: 94% (highest)
Switching frequency: 400KHz
Output ripple: 50mV (max)
Load regulation: ± 0.5%
Voltage regulation: ± 0.5%
Operating Temperature: -40 ° C to +85 ° C
Dimension: 47 x 22 x 13 mm
Short Circuit Protection: NONE
Applications:
DIY a mobile power supply
Boost charger
Power supply for electronic equipment

Item 5
Model Specification：DSN6000AUD Automatic Buck module
Module Properties：Non- isolated boost (BOOST)
Rectification：Non- Synchronous Rectification
Input Range：3.8V ~ 32V
Output Range：1.25V ~ 35V
Input Current：3A ( max ) , no-load 18mA (5V input , 8V output , no-load is less than 18mA.
Higher the voltage , the greater the load current . )
Conversion efficiency：< 94% ( greater the pressure , the lower the efficiency )
Switching frequency：400KHz
Output Ripple：50mV ( the higher the voltage , the greater the current , the greater the ripple )
Load Regulation：± 0.5%
Voltage Regulation：± 0.5%
Operating Temperature：-40 ℃ ~ +85 ℃

Item 6
Model Specification：DSN6000AUD Automatic Buck module
Module Properties：Non- isolated boost (BOOST)
Rectification：Non- Synchronous Rectification
Input Range：3.8V ~ 32V
Output Range：1.25V ~ 35V
Input Current：3A ( max ) , no-load 18mA (5V input , 8V output , no-load is less than 18mA. Higher the voltage , the greater the load current . )
Conversion efficiency：< 94% ( greater the pressure , the lower the efficiency )
Switching frequency：400KHz
Output Ripple：50mV

package: as you choose

Gambar produk
