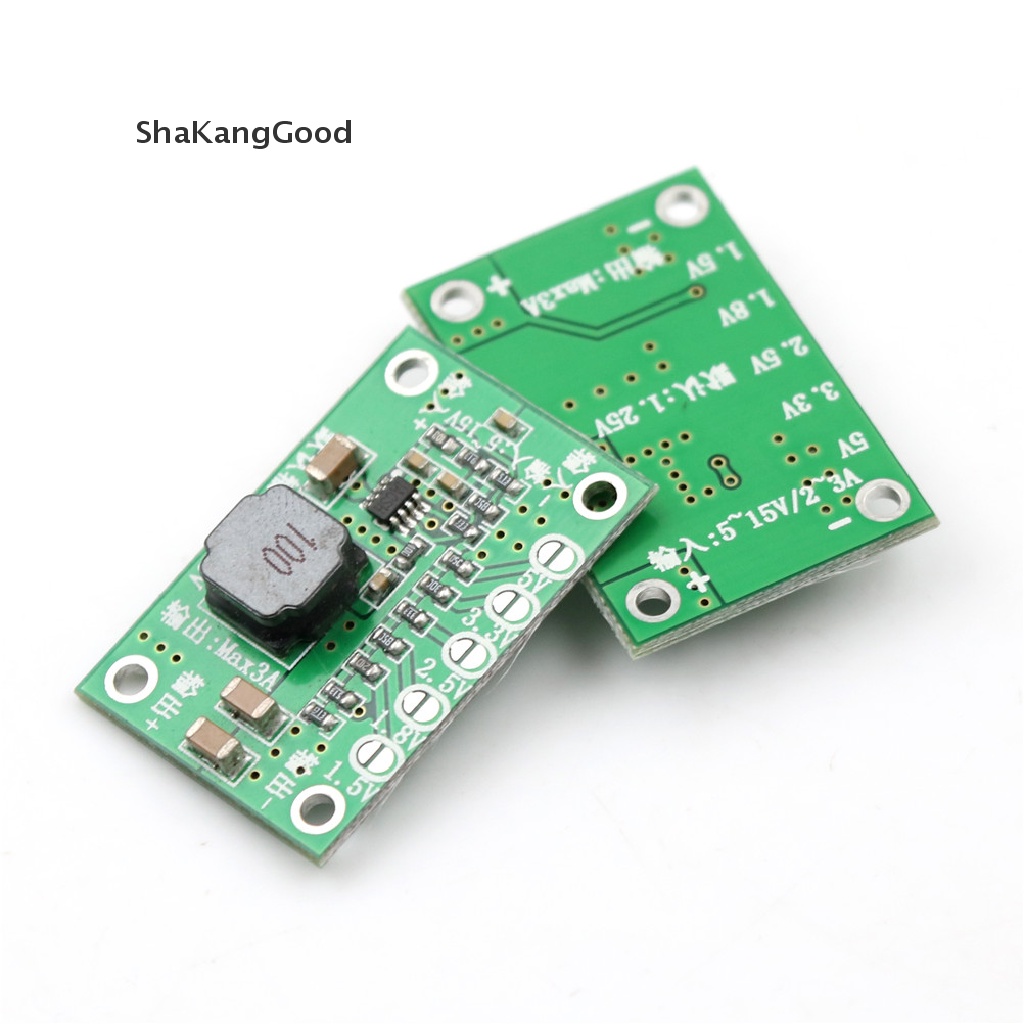

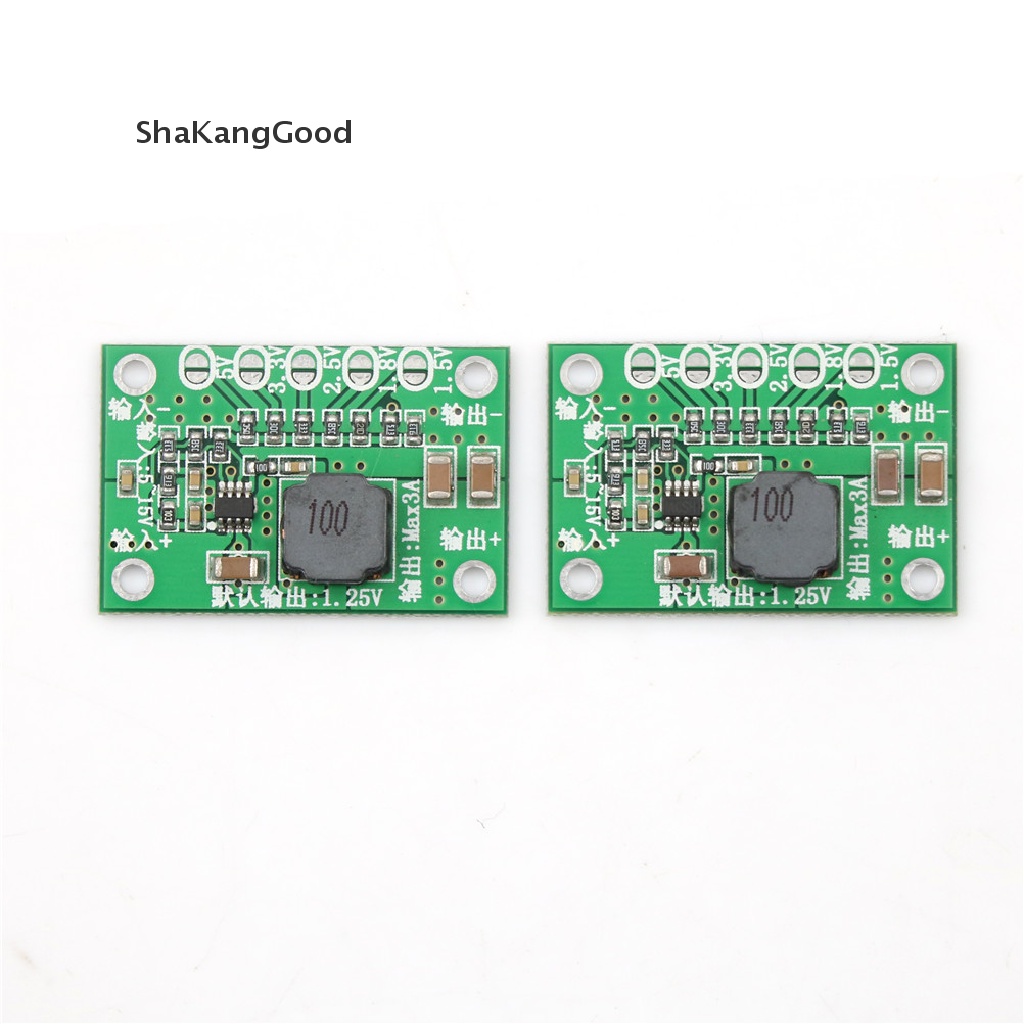

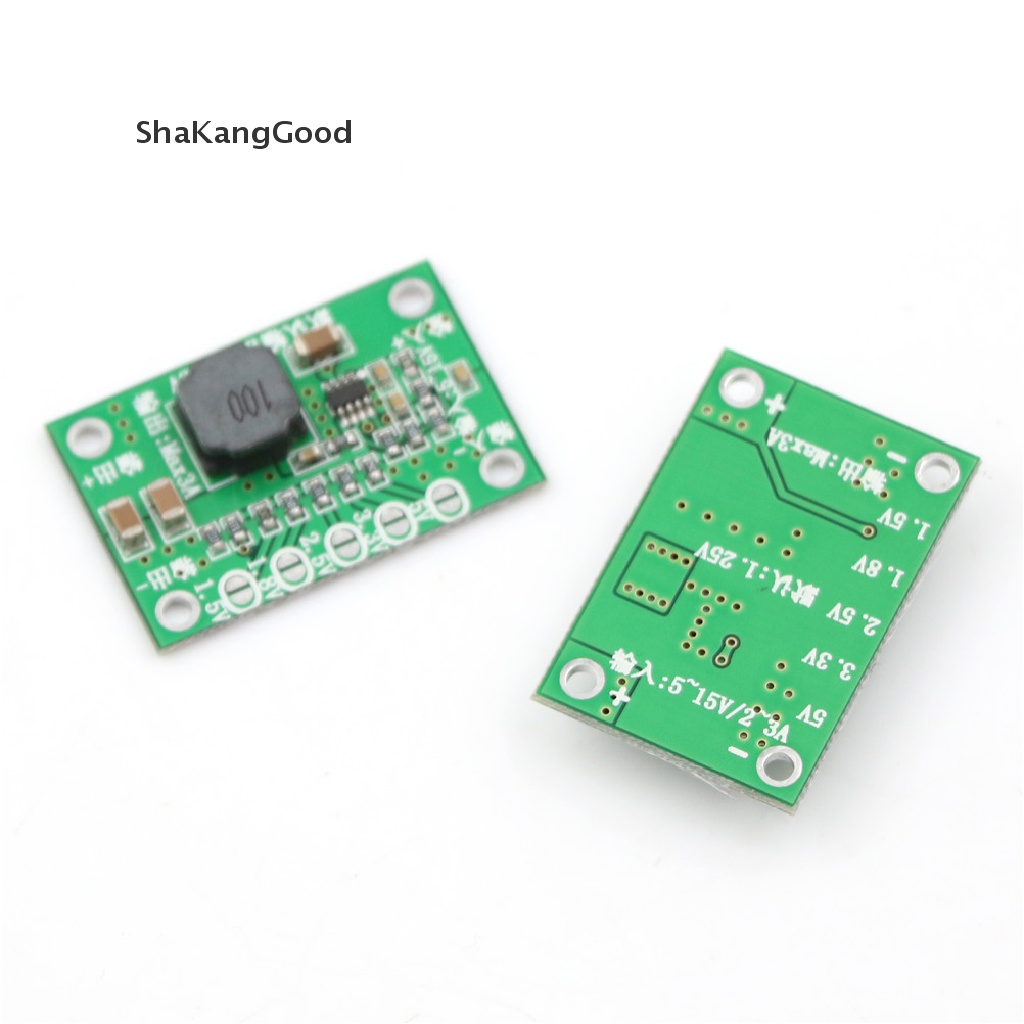

Modul Konverter Step Down Power Dc-Dc 5-16v Ke 1.5v 1.8v 2.5v 3.3v 5v 3a Skk

Detail Modul Konverter Step Down Power Dc-Dc 5-16v Ke 1.5v 1.8v 2.5v 3.3v 5v 3a Skk

Product Description
Specification:
This adjustable step down module is use MP1495 Chip. Synchronous rectification output, Power efficiency up to 90% or more.
Input Voltage: DC 5v-16v
Output Voltage: DC 1.25v, 1.5v, 1.8v, 2.5v, 3.3v, 5v
Default Output Voltage: DC 1.25v
Output Current: 3A
We do not need to adjust the Potentiometer to output the voltage, just need to short circuit pad to output the accurate Voltage, For example, if we want to output 3.3v, We just need to short ciruit pad of 3.3v, that the module will output 3.3v, if we do not short ciruit any pads, the module will output default 125v.
Application areas:
DIY mobile power, monitor power supply, embed regulator, camera power supply, car power, communications equipment supply,etc.
Package Included:
1 x Micro DC-DC Adjustable Step Down Buck Power Module

Gambar produk
