Modul Konverter Power Supply Ac-Dc Dc 5v / 12v / 24v

Detail Modul Konverter Power Supply Ac-Dc Dc 5v / 12v / 24v

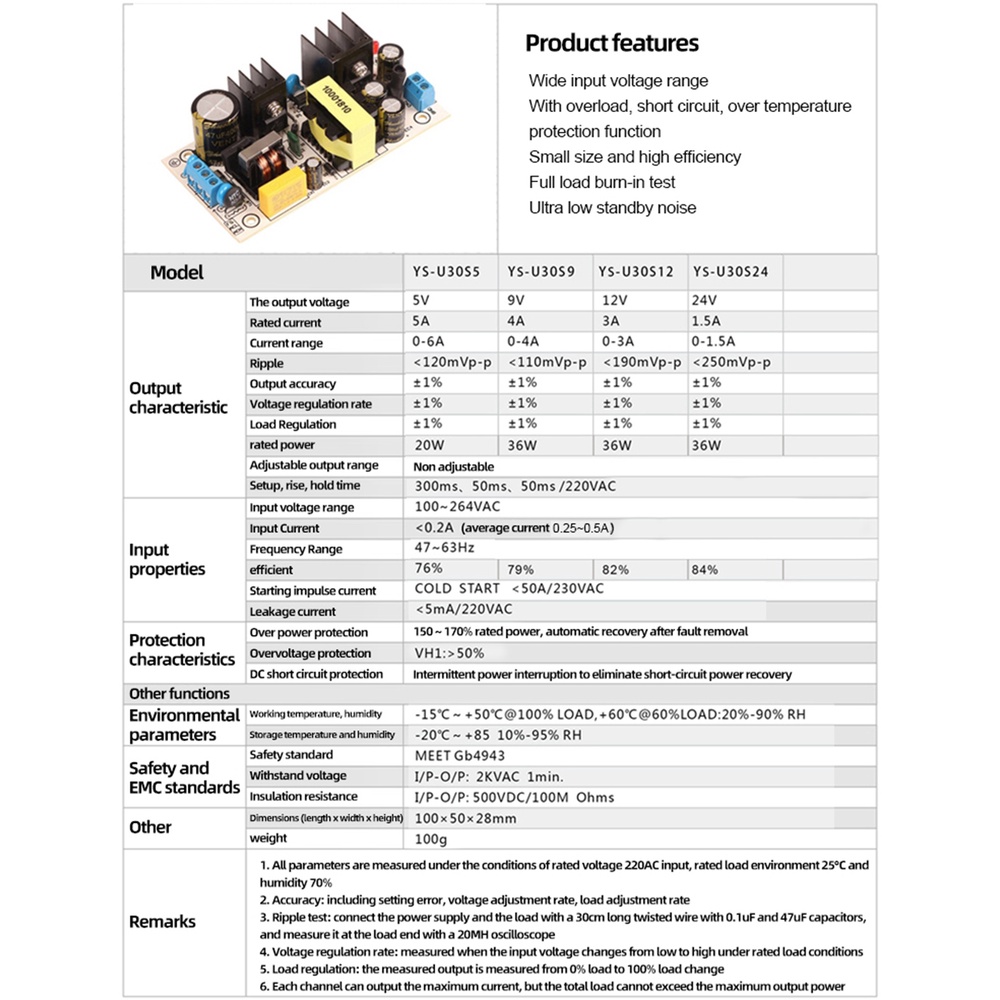

Product selling point
1: Wide input voltage range
2: With overload, short circuit, and over temperature protection functions:
3: Small size, high efficiency
4: Full load aging test
5: Ultra-low output ripple

5V output characteristics
Output voltage: 5V
Rated current: 5A
Current range: 0-6A
Ripple: <120mVp-p
Output accuracy: ±1%
Voltage adjustment rate: ±1%
Load regulation rate: ±1.2%
Rated power: 20w
Output adjustable range: not adjustable
Setup, rise, hold time: 300ms, 50ms, 50ms /220VAC

12V output characteristics
Output voltage: 12V
Rated current: 3A
Current range: 0-3A
Ripple: <190mVp-p
Output accuracy: ±1%
Voltage adjustment rate: ±1%
Load regulation rate: ±1%
Rated power: 36w
Output adjustable range: not adjustable
Setup, rise, hold time: 300ms, 50ms, 50ms /220VAC

24V output characteristics
Output voltage: 24V
Rated current: 1.5A
Current range: 0-1.5A
Ripple: <250mVp-p
Output accuracy: ±1%
Voltage adjustment rate: ±1%
Load regulation rate: ±1%
Rated power: 36w
Output adjustable range: not adjustable
Setup, rise, hold time: 300ms, 50ms, 50ms /220VAC

packing list
1*power module

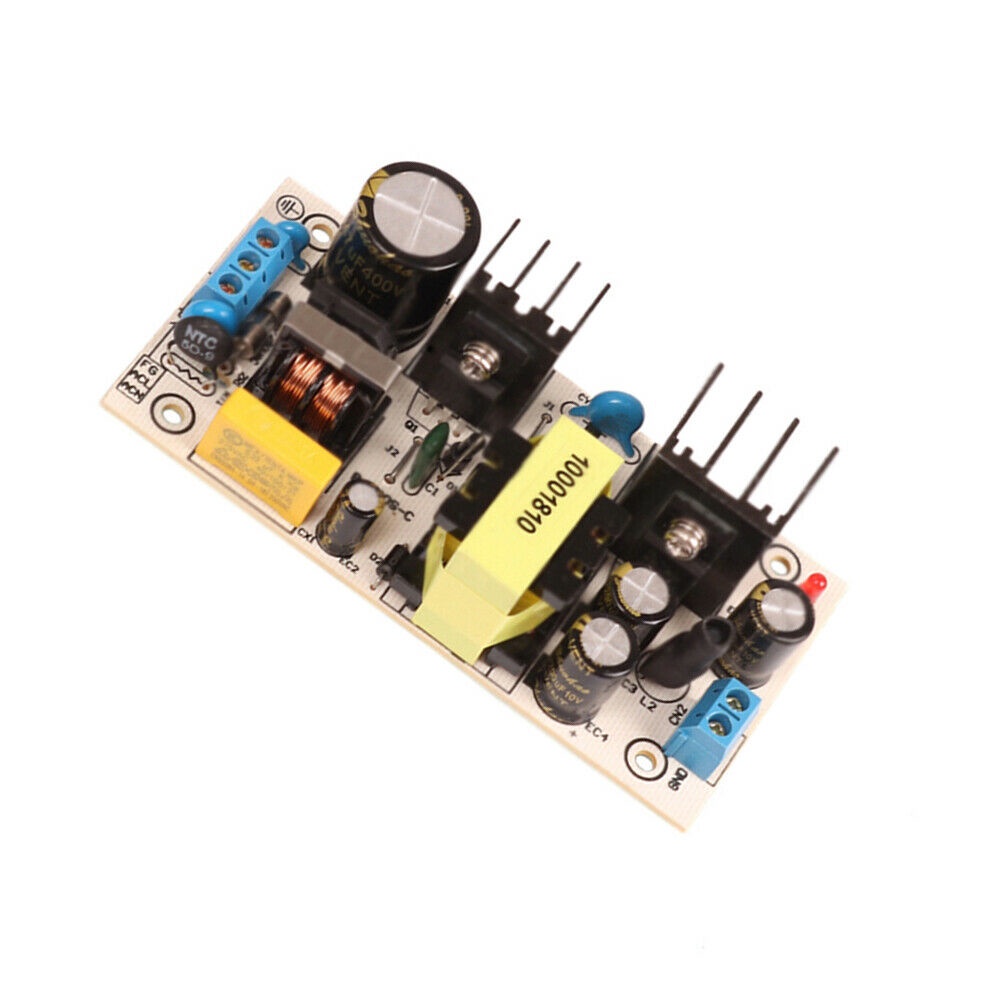

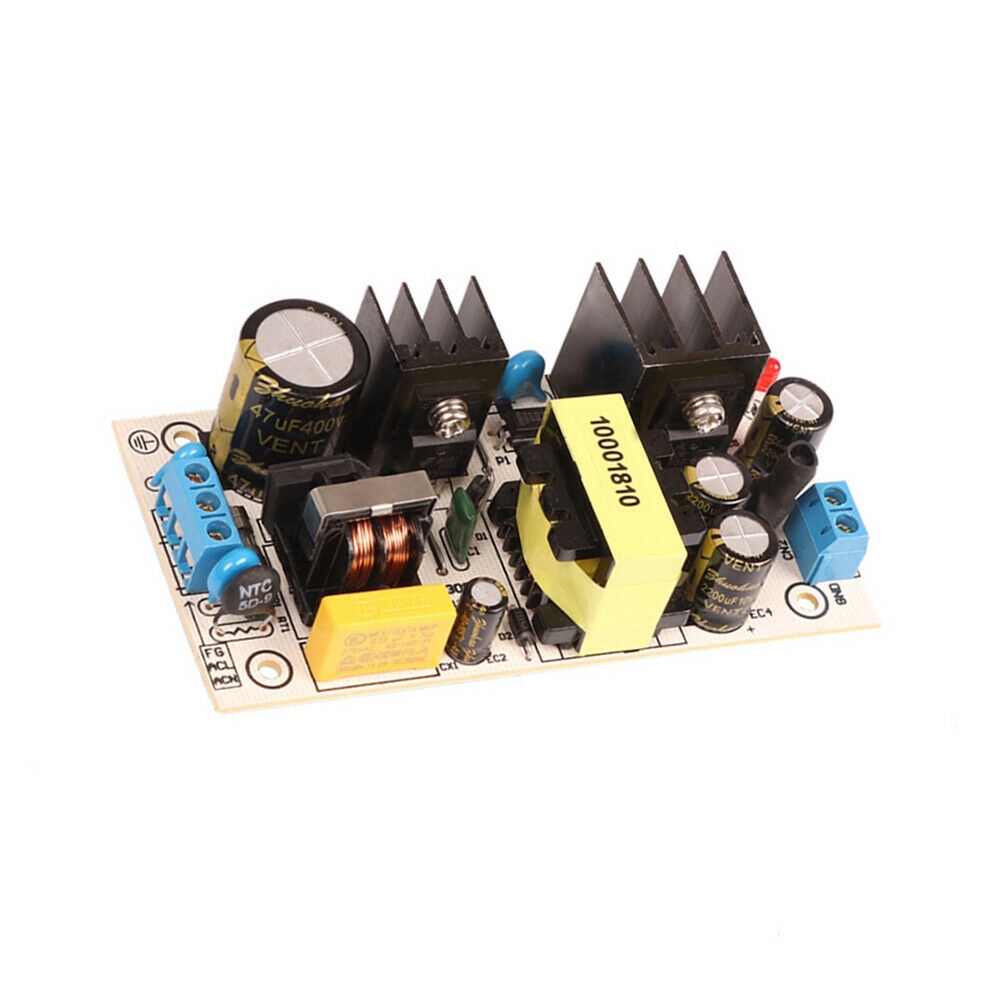

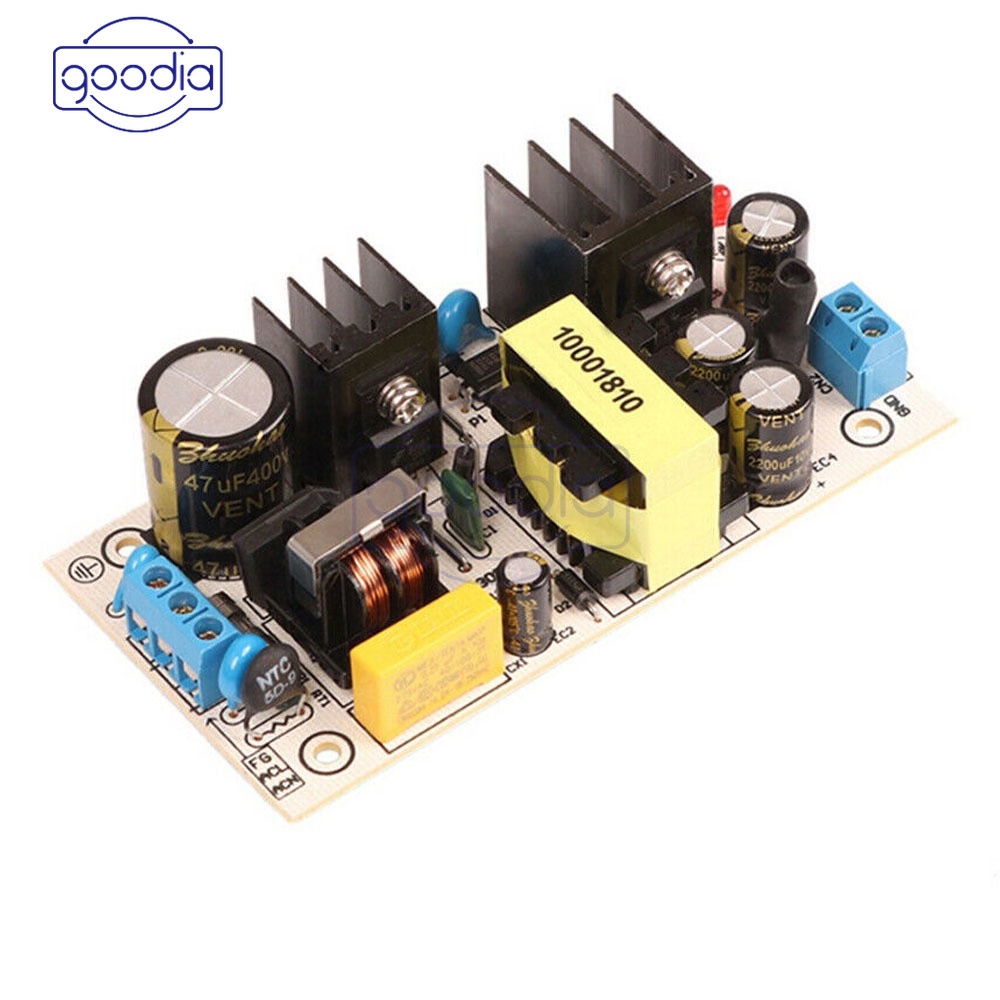

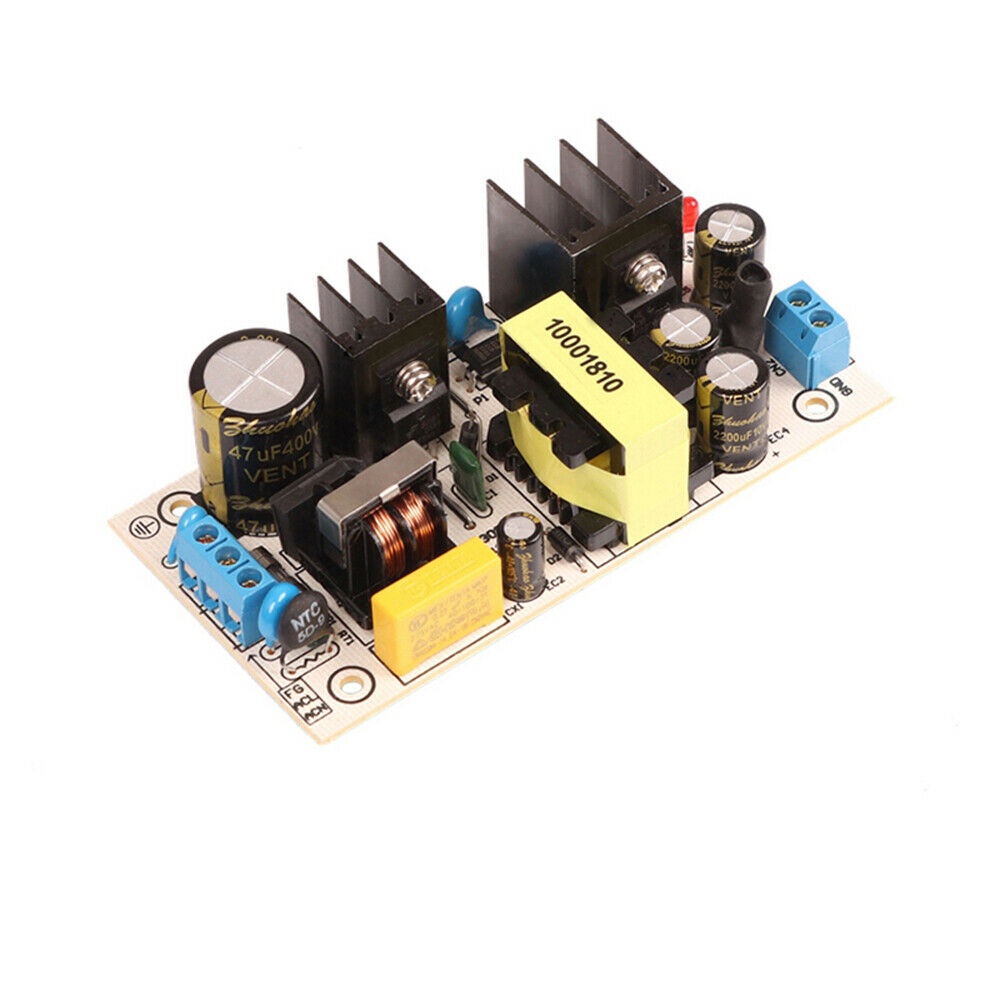

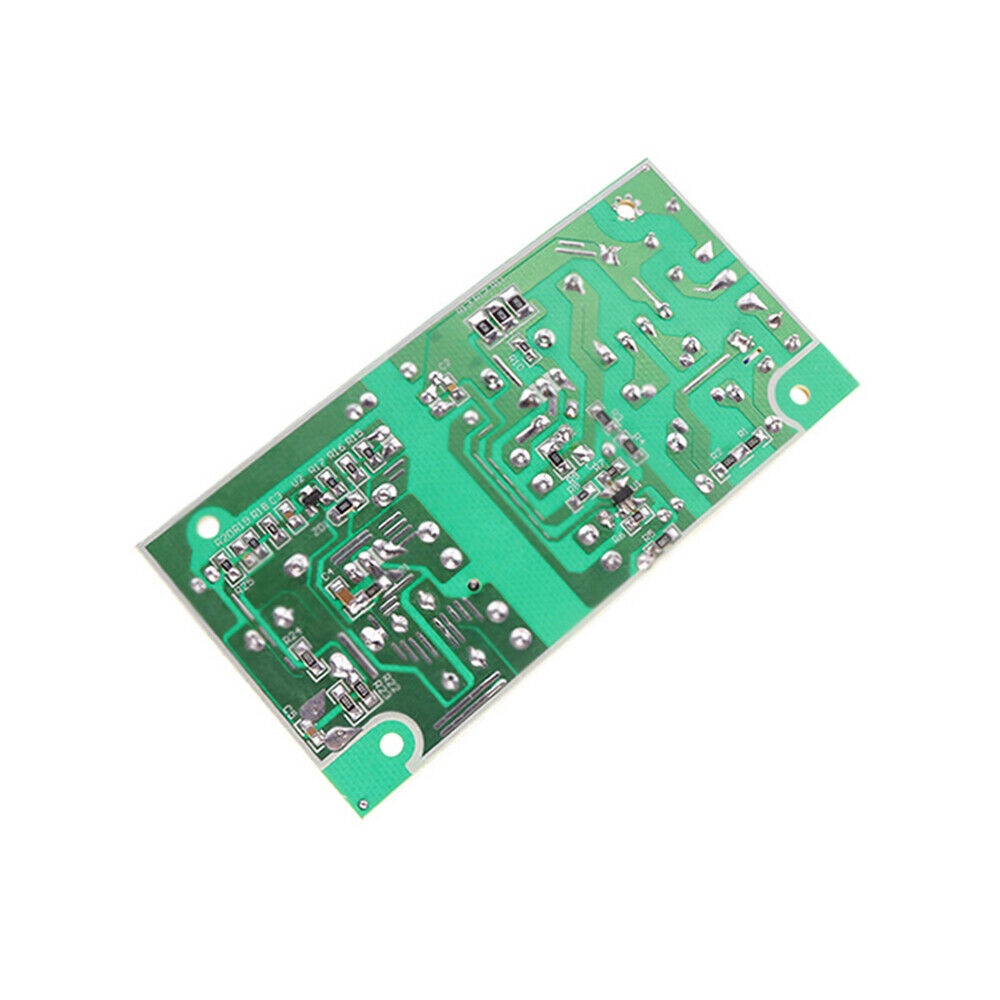

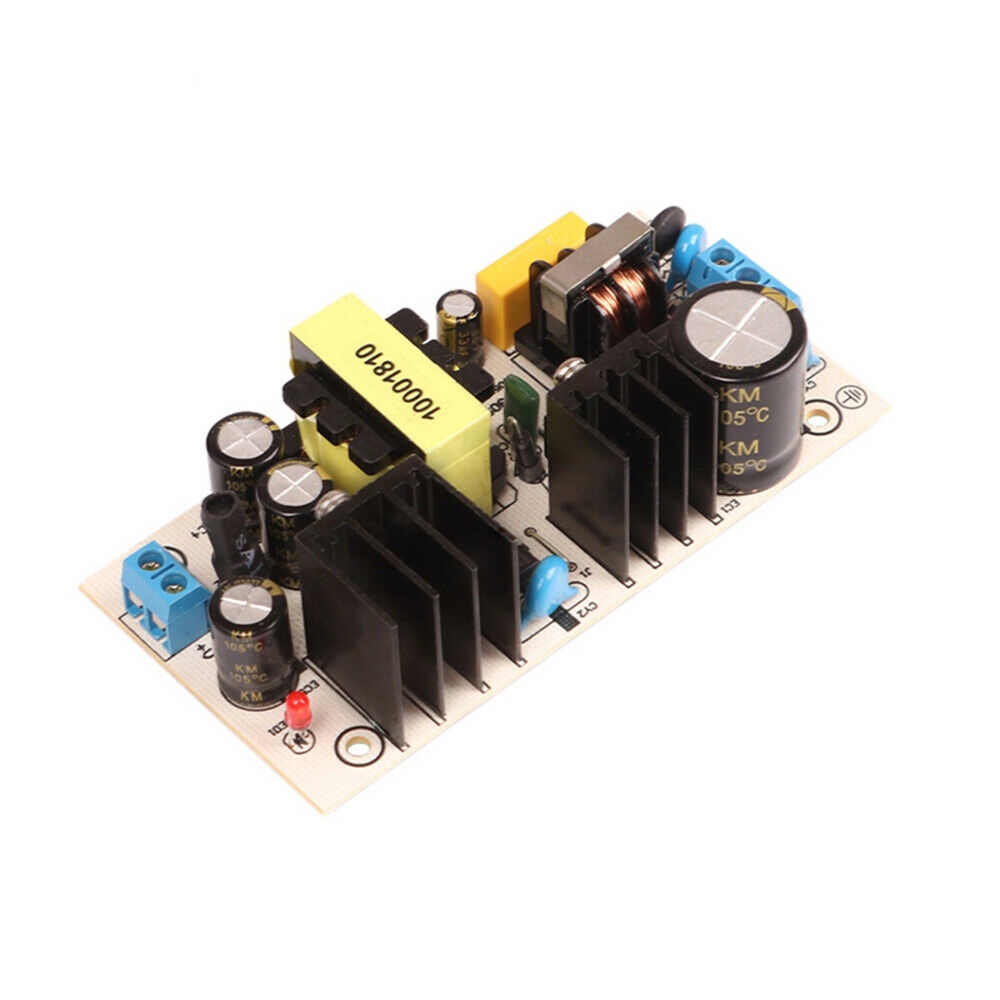

Gambar produk
