Detail Modul Konverter MAX485 TTL To RS485 Converter Module

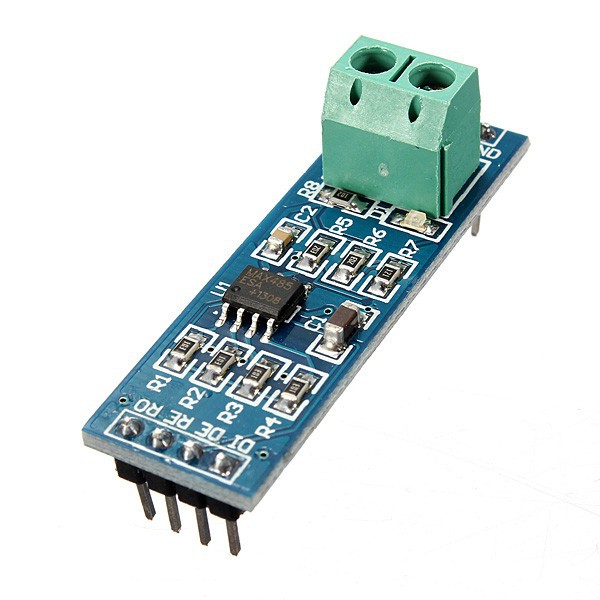

SPESIFIKASI :- On-board MAX485 chip, A low power consumption for the RS-485 communication, slew-rate limited transceiver.

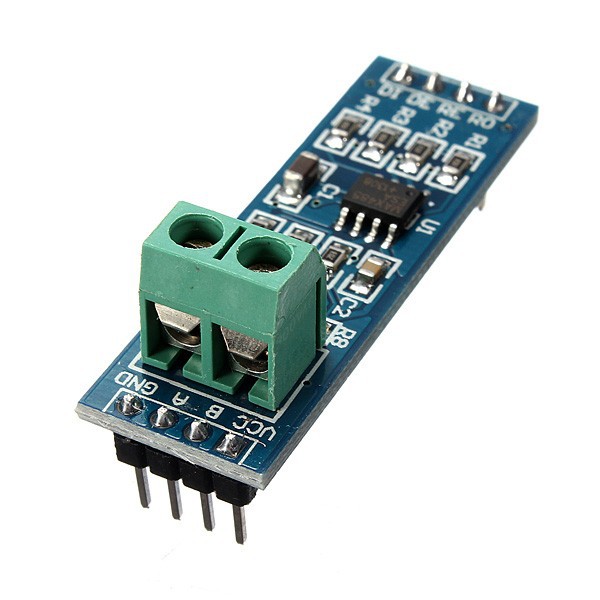

- On board then 5.08 (mm) pitch 2P terminal to facilitate RS-485 communication wiring.
- All pins of chip have been lead to can be controlled through the microcontroller
- Working voltage: 5V
- Board size: 44 (mm) x14 (mm)
