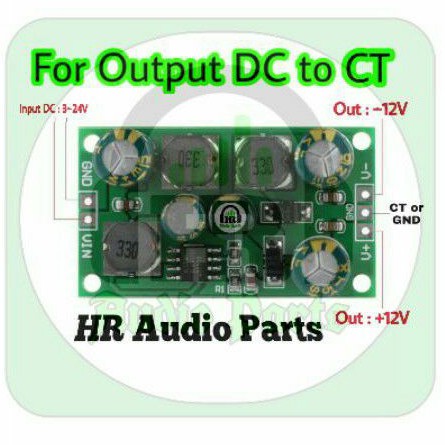

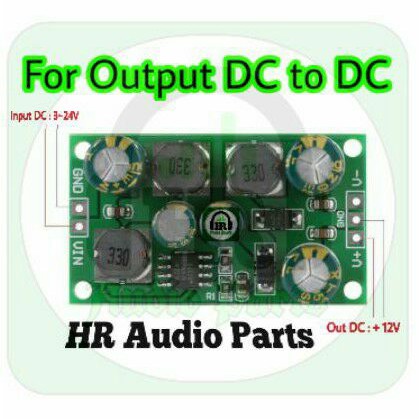

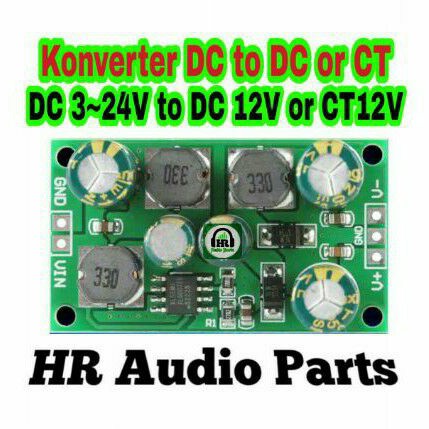

Modul Konverter DC to DC or CT Step Up or Down Converter DC 3~24V to DC / CT 12V

Detail Modul Konverter DC to DC or CT Step Up or Down Converter DC 3~24V to DC / CT 12V

Modul Konverter DC to DC or CT Step Up or Down DC 3~24V to DC / CT 12V

Features:
1. This boost-buck converter supports positive & negative dual output voltage.
2. High conversion efficiency up to 90%, stable output voltage.
3. Made with high quality electronic components, stable performance.
4. Built in frequency compensation, soft-start function, thermal shutdown function and current limit function.
5. Application: ADC, DAC, operational amplifier, audio equipment, LCD power supply and more.

Specification:
Input voltage: 3~24V
Output voltage: DC 12V or ±12V ( CT 12V )
Maximum output power: 1-8W
Conversion efficiency :70-90%
Quiescent current: 3-4mA
Accuracy : Positive voltage ±3%, Negative voltage ±5%
Working frequency: 400kHz
Operating temperature: -40~85℃
Size: 42*24*15mm / 1.65*0.94*0.59in
Weight: 12g (approx.)

Package List:
1 * Positive Negative Voltage Converter

# Monggo silahkan di order Boss 🙏 Stok Terbatas 🙏 Terima kasih 🙏
