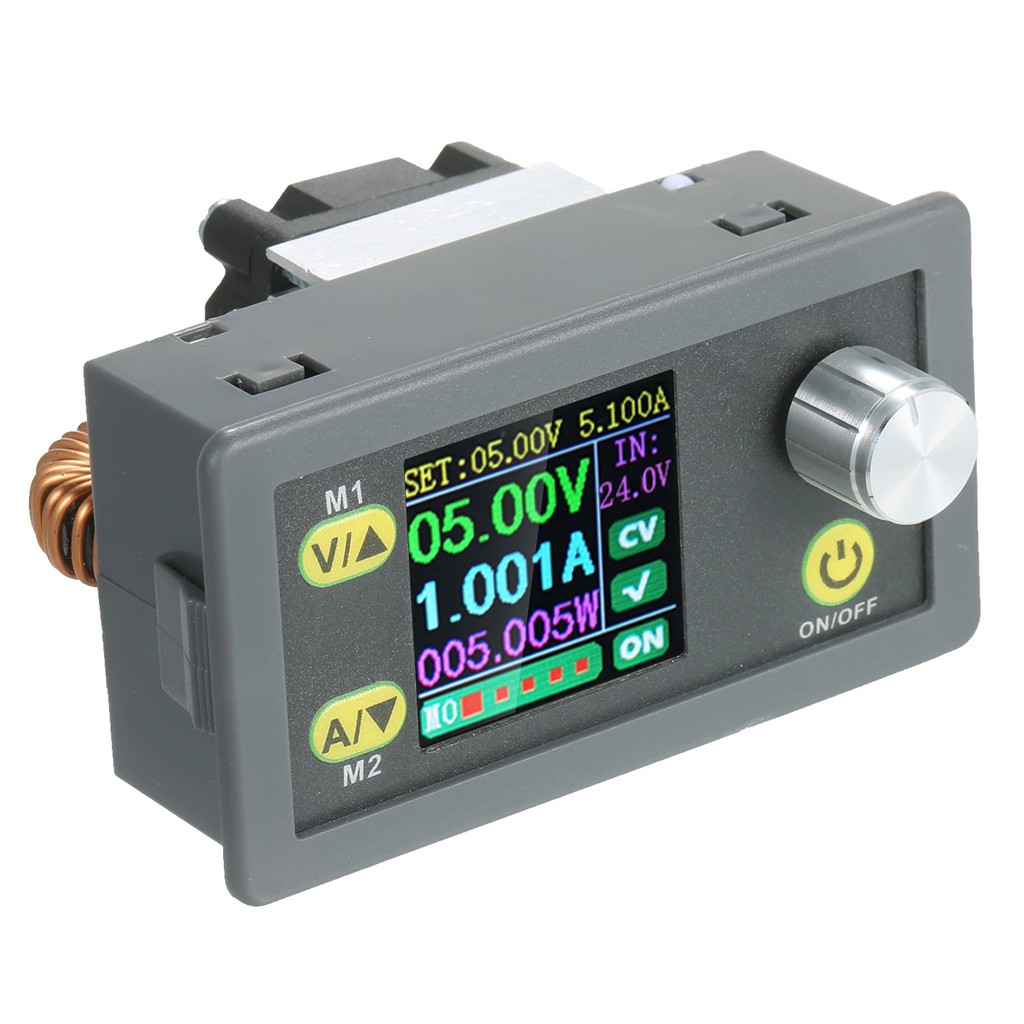

Modul Kontrol Digital 5A 80W Constant Voltage Current Power Supply Control Module Adjustable

Detail Modul Kontrol Digital 5A 80W Constant Voltage Current Power Supply Control Module Adjustable

Digital Control Module 5A 80W Constant Voltage Current Programmable Power Supply Module Adjustable Voltage Regulator Data Storage

Specifications:
Material: Electronic components
Color: Grey

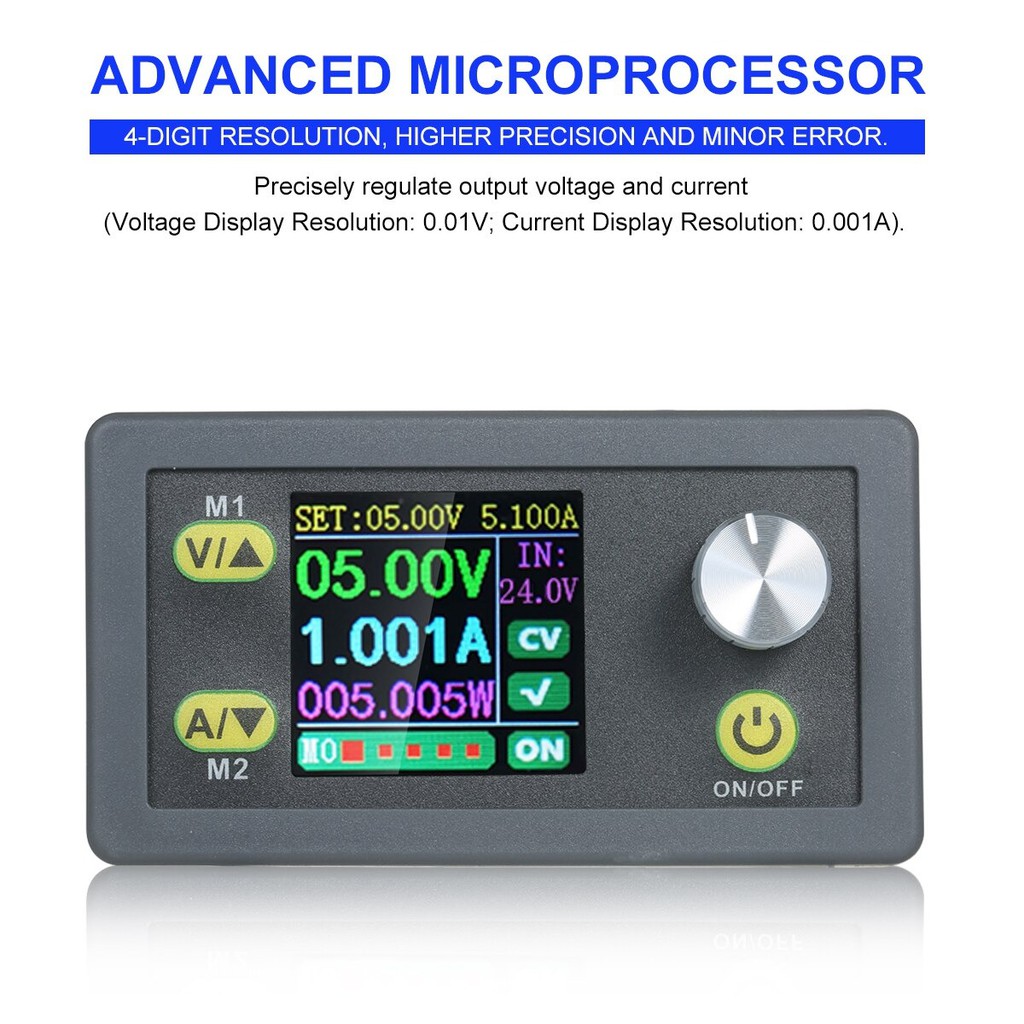

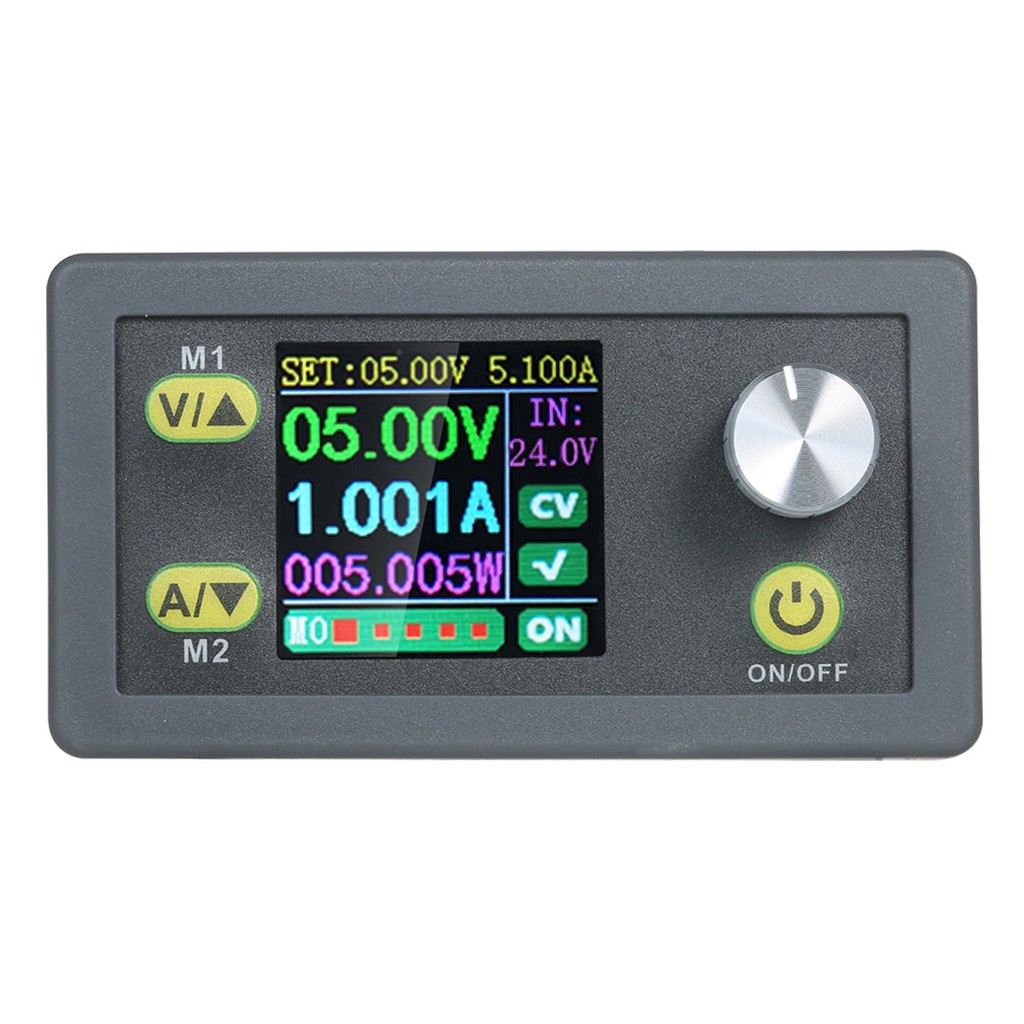

Control Method: Digital Control + 1.44-inch LED Display
Screen Brightness: 0 ~ 6 (7 levels in total)
Voltage Display Resolution: 0.01V
Current Display Resolution: 0.001A
Input Voltage Range: 6.00 ~ 36.00V
Input Voltage Accuracy: ±(1.0%+5)
Output Voltage Range: 0.60 ~ 36.00V
Output Voltage Accuracy: ±(0.3%+3)
Output Current Range: Max. 0 ~ 5.000A
Output Current Accuracy: ±(0.5%+5)
Output Power Range: 0 ~ 80.000W
Energy Measurement Range: 0 ~ 99999.999WH
Capacity Measurement Range: 0 ~ 99999.999AH
Capacity Accuracy: ±2%
Working Environment: -10 ~ 60℃
Protection Mechanism:
Input under-voltage protection; output over-voltage protection; output over-current protection; output over-power protection; timeout protection; over capacity protection; over energy protection.
Item Size: Approx. 7.9*4.3*6cm / 3.11*1.69*2.36in
Item Weight: Approx. 93g / 3.28oz
Package Size: Approx. 11.1*6.7*5cm / 4.37*2.64*1.97in
Package Weight: Approx. 118g / 4.16oz

Packing List:
1 * 80W Digital Boost Module

Gambar produk
