Detail Modul Inverter Universal led 10-42 inch Gold-16ES driver backlight

Inverter Universal LED TV / Converter / DC to DC Step Up / LED Driver / Constant Current Board

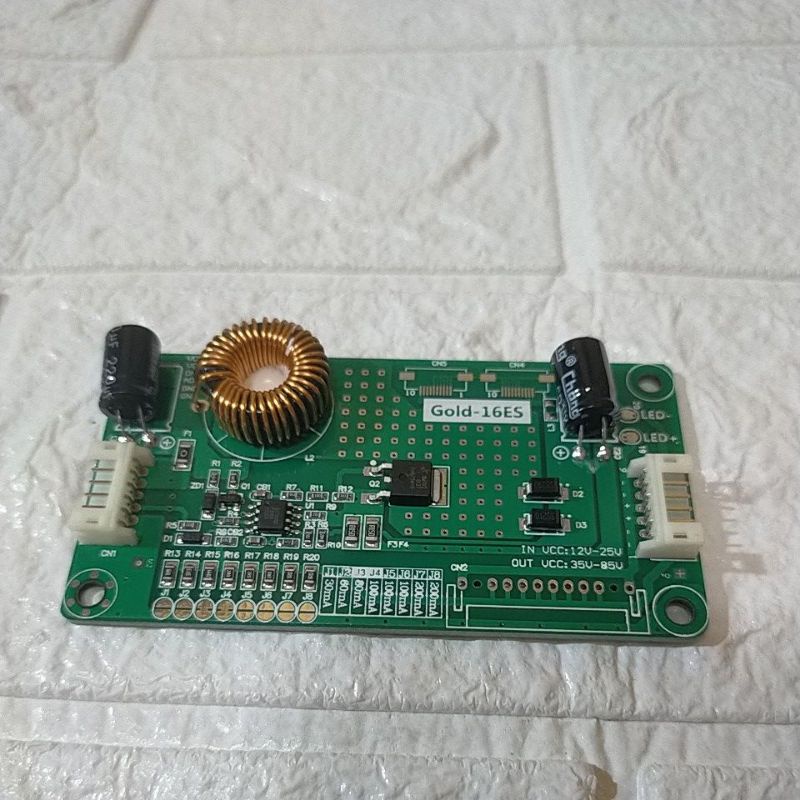

Model : GOLD-16ES

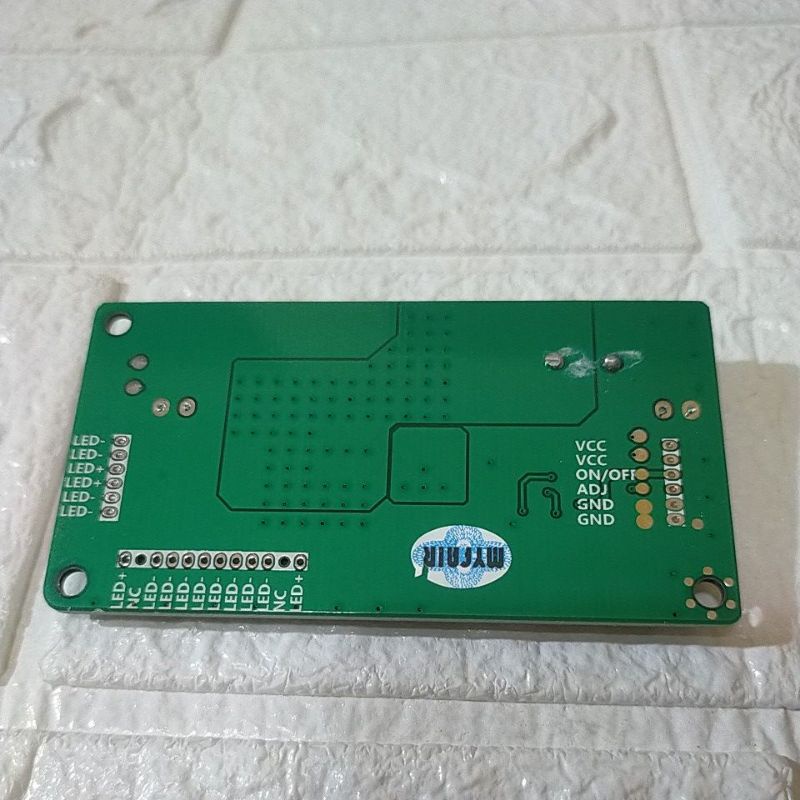

Input port :VCC, VCC,,S/W,ADJ,GND,GND
Input Voltage : 10V - 28V
Input pin :6P pitch 2.0
output voltage :8V - 165V (Auto) / 300mA constant current (20-1000mA adjustable)
output pin :6Pin

Konfigurasi pin input
-VCC : 10V - 28V
-VCC : 10V - 28V
-SW /Ena/BL-on : SWITCH ON : 3.3V/5V , OFF:0V
-ADJ/bright/DIM :ADJUSTMENT BRIGHT ON: 5V (analog) atau 3.3V 200Hz-200KHz (PWM) ,OFF : 0V
-GND : GROUND
-GND : GROUND

Output menyesuaikan bebannya 18V - 88V constant current 300mA
-LED +: LED Positif
-LED-: LED Negatif (GND)
