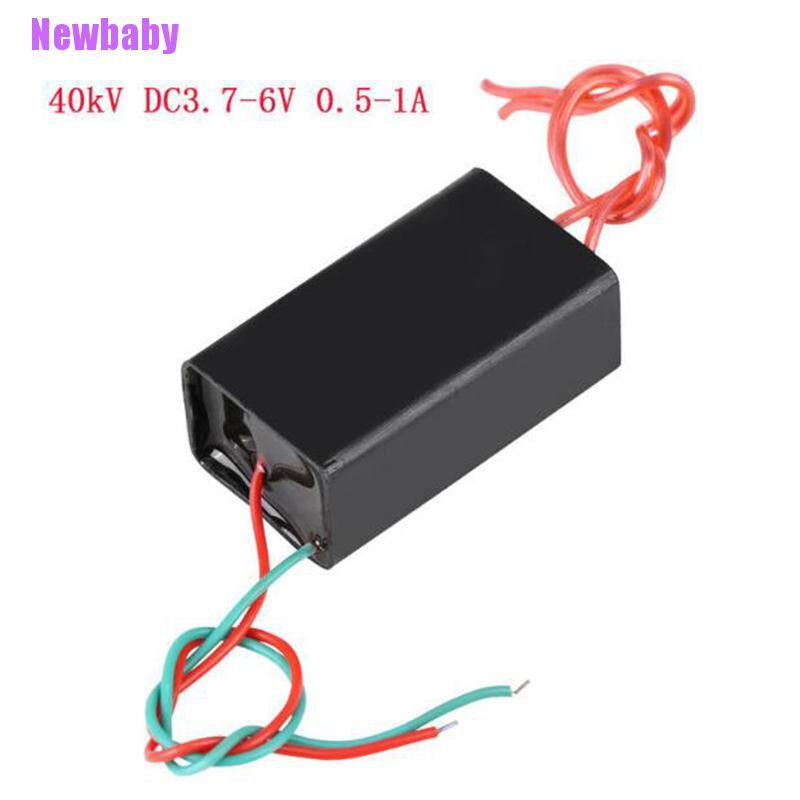

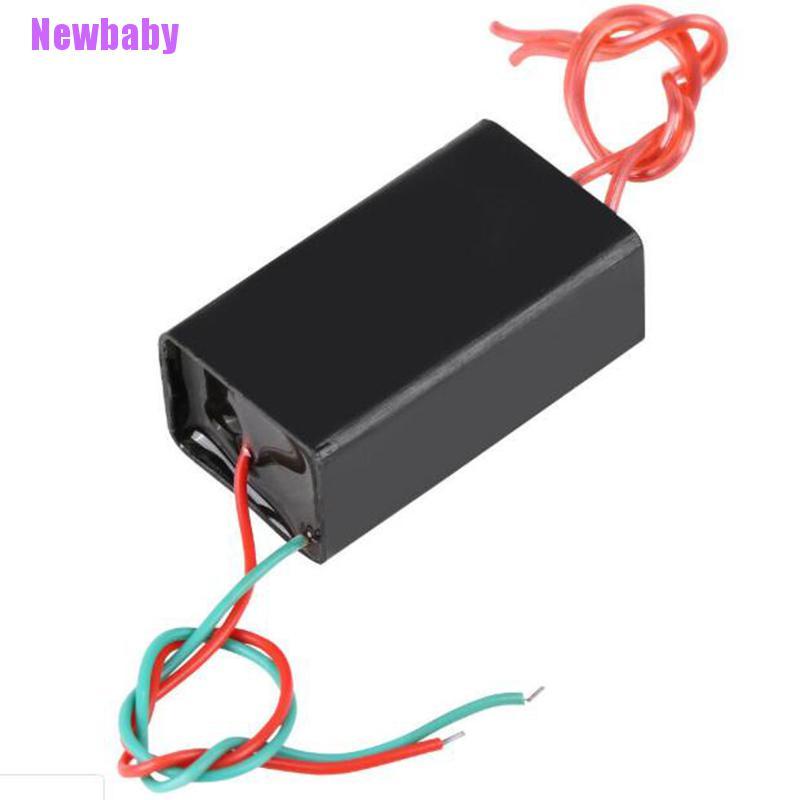

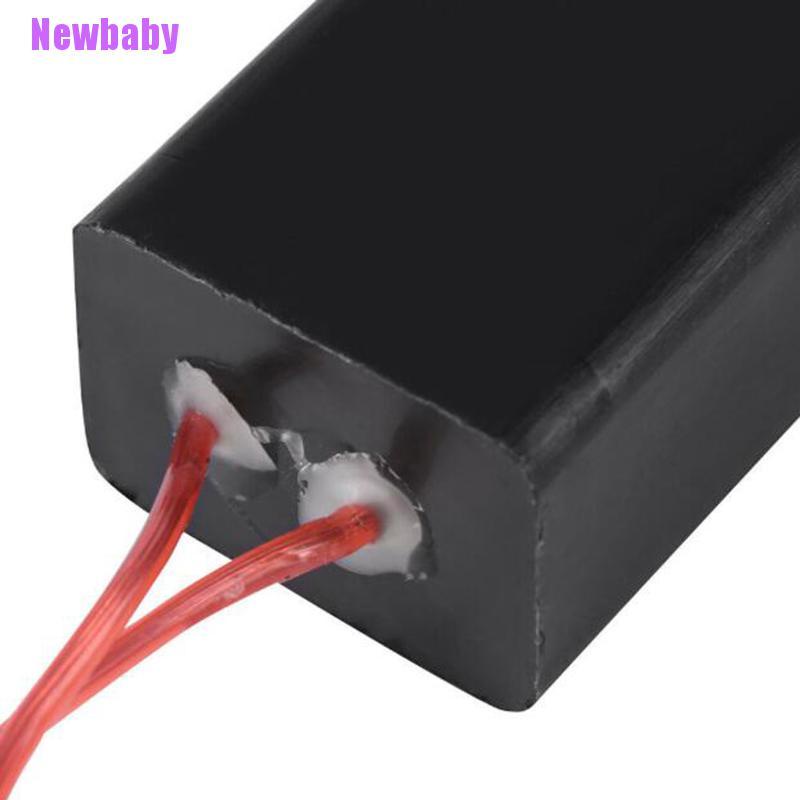

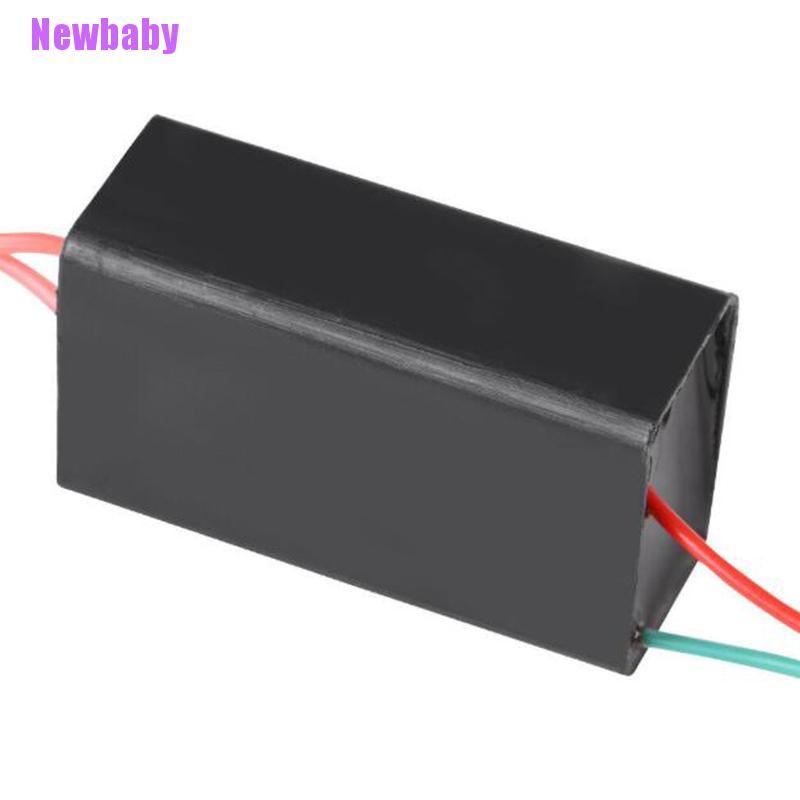

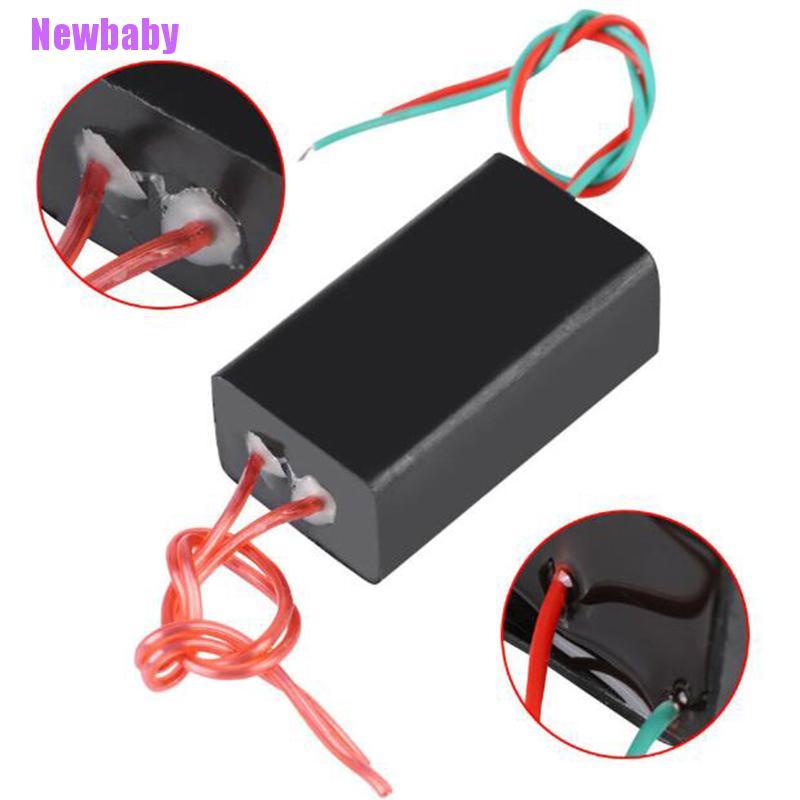

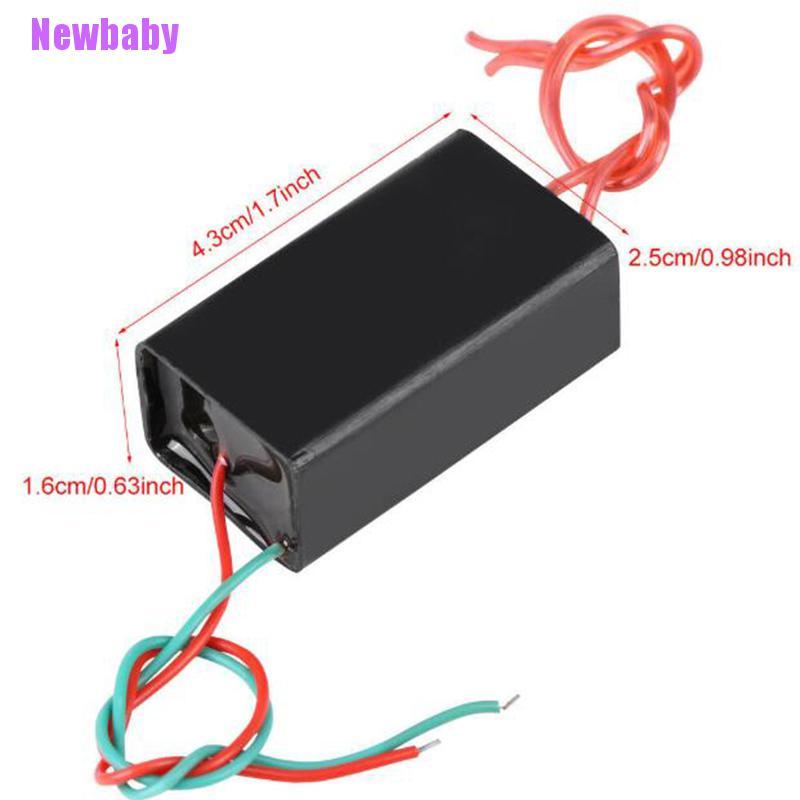

Modul Inverter Generator Pulse Ignition Coil Tegangan Tinggi

Detail Modul Inverter Generator Pulse Ignition Coil Tegangan Tinggi

Specifications:

Input Voltage: DC3.7V~6V

Current: 0.5A~1A

Output Voltage: About 40kV
Input Wire: Red(positive), Green(negative)

Electric Arc Distance: <1cm

Recommended Power Supply(not included): Single lithium battery or phone battery (can NOT use AA, AAA or 9V battery)

Note:
1, Output ends of cable should be adjusted properly before power on, and the arc distance should be shorter than 1cm.
2, The arc distance should be from short to long, do not produce a longest arc at first or the module might be damaged easily.
3, The module has high power and inner heat is not easily dissipated, so it can not work continuously for long time (<5 seconds each time).

4, The module may have some electricity left after work, so please make the wire contact with metal to discharge, in case of electric shock.

5, The electric arc is not of high temperature, so it cannot be used to light up paper or cigarette.

Package Includes:

1 x High Voltage Generator

Gambar produk
