Modul HC-SR501 Sersor Gerak PIR HCSR501 Module for Arduino

Detail Modul HC-SR501 Sersor Gerak PIR HCSR501 Module for Arduino

Modul HC-SR501 Sersor Gerak PIR HCSR501 Module for Arduino
Spesifikasi
- Working voltage: 5V to 20V
- Output: High: 3.3V, Low: 0V
- Detection angle: Approximately 120 degrees
- Ground: Connect to your Ground or 0V
- 5-20V: Connect to your power supply positive voltage - between 5V and 20V
- Detection Range: 7Meter Approx.
- Detection Angle: 120 Degrees Approx.

Electrical parameters
Model
Human body sensing module
Operating Range 4.8 ~ 20V DC voltage
Quiescent Current 50uA (wow that's low)
Level output High 3.3 V / Low 0V
Trigger L unrepeatable trigger / H repeatable trigger (default repeat trigger)
Delay time 0.5-200S (adjustable) range can be made a few tenths - tens of minutes
Blocking time 2.5S (default) can produce the range of a few tenths - tens
PCB Dimensions 32mm * 24mm
Angle sensors 100 degree cone angle
Operating Temperature -15 - +70 Degrees

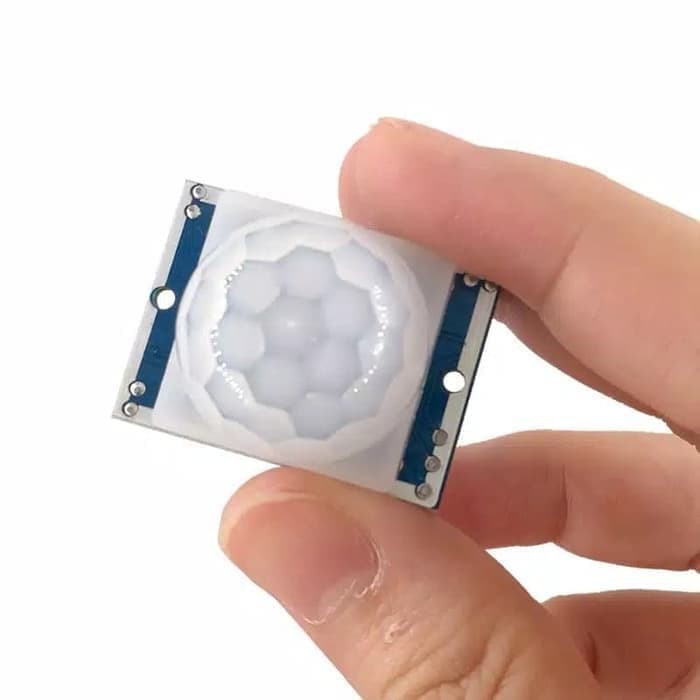

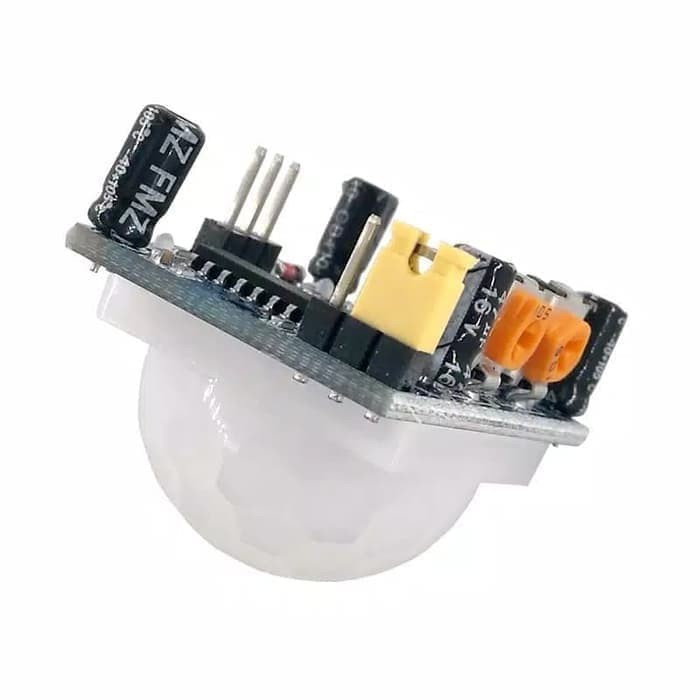

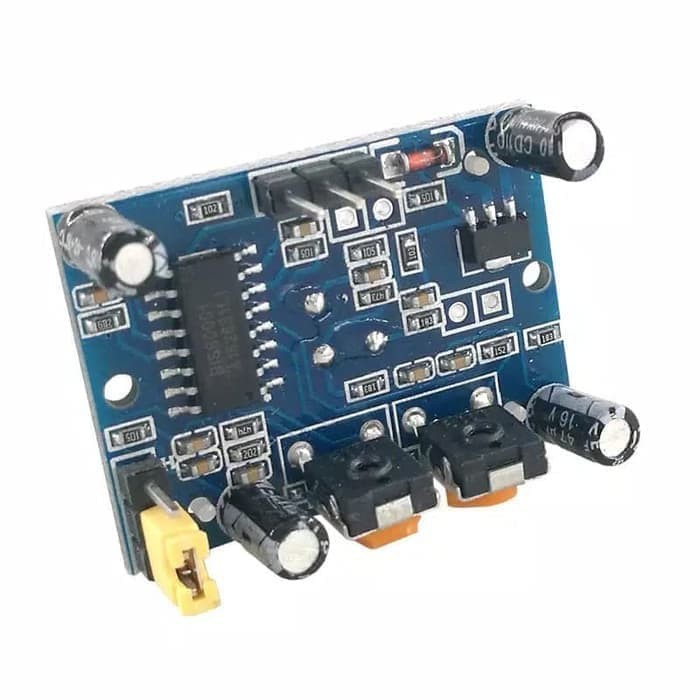

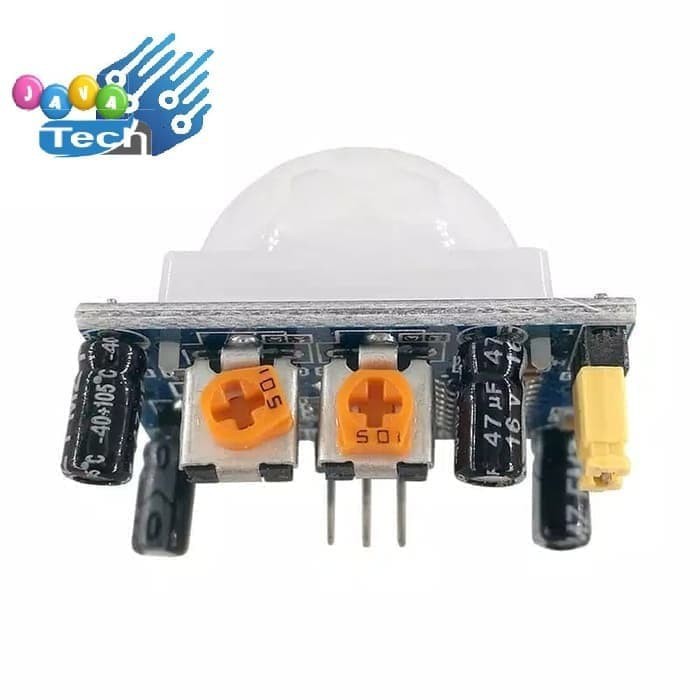

Gambar produk
