Modul FZ25 / FZ35 Digital Adjustable Electronic Load Tester

Detail Modul FZ25 / FZ35 Digital Adjustable Electronic Load Tester

Item Type: Battery capacity tester
Pattern: 4A, 25W / 5A, 35W (optional)
Rated Power Supply Voltage: DC5.0 ~ 30.0V (with anti-reverse protection, no burning after reverse connection)
Rated Load Voltage: DC1.5 ~ 25.0V (with anti-reverse connection protection, reverse connection does not burn)
Rated Load Current: 0.00 ~ 4.00A / 0.00-5.00A
Discharge Power: 25W / 35W
Constant Current Accuracy: ± (1% + 3 digit)
Voltage Accuracy: ± (0.5% + 1 digit)

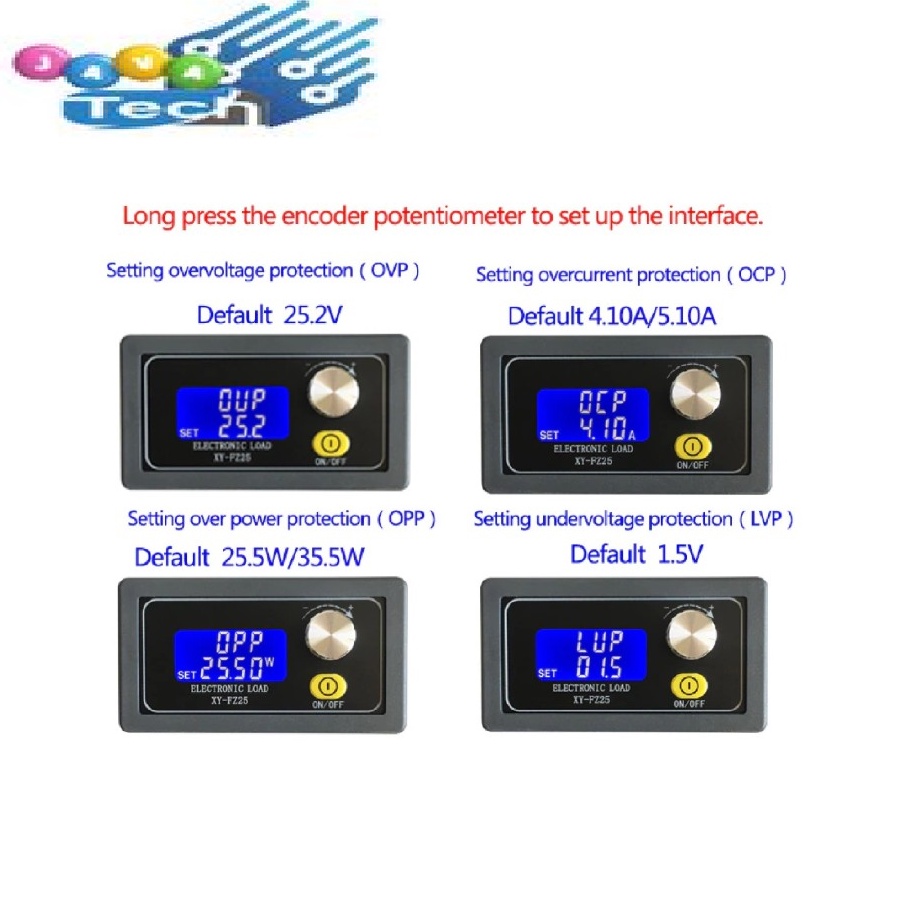

Overvoltage Protection (OVP): Default 25.2V (can be set by yourself)
Overcurrent Protection (OCP): Default 4.10A (can be set by yourself) / default 5.10A (can be set by yourself)
Over Power Protection (OPP): Default 25.5W (can be set by yourself) / default 35.5W (can be set by yourself)
Undervoltage Protection (LVP): Default 1.5V (can be set by yourself)
Over Temperature Protection (OTP): About 80 ℃ by default (cannot be set)
Fan Speed: Oil-bearing intelligent temperature control fan, speed 580 ± 10% RPM / water pressure bearing intelligent temperature control fan, speed 8000 ± 10% RPM
