Detail Modul EZ-USB FX2LP CY7C68013A USB Logic Analyzer Development Board
Cypress’s EZ-USB® FX2LP™ (CY7C68013A/14/15/16A) is a low power, highly integrated USB 2.0 microcontroller. FX2LP has a fully configurable General Programmable Interface (GPIF™) and master/slave endpoint FIFO (8-bit or 16-bit data bus), which provides an easy and glueless connection to popular interfaces such as ATA, UTOPIA, EPP, PCMCIA, DSP, and most processors.FX2LP goes into a wide range of applications such as printers, scanner, storage devices, cameras, STB, and many more. For applications needing ultra low power such as mobile phones and PMPs, EZ-USB® FX2LP18™ (CY7C68053) is ideal with its low power consumption and small package.
Key Features
Integration: Single chip integrated with USB 2.0 transceiver, smart SIE, enhanced 8051 microprocessor, and 16 kB on-chip code/data RAM
Ultra Low Power: Low 3.3 V core, ultra low 1.8 V (FX2LP18)
Connectivity: I2C, USART
Flexibility: Proprietary 16-bit GPIF.
Packages: Available in different Pb free pin/packages (56 SSOP/QFN/VFBGA, 100/128 TQFP)
This USB 2.0 Evaluation Board for Cypress CY7C68013A-56 USB Microcontroller provides an ideal tool for learning about the Cypress EZ-USB FX2LP Microcontroller. This development board breakout all the GPIO of the microcontroller, so it will be very convenient for learners to expand their own design. It alao use the actual silicon for the entire development, Cypress's software utilities and example firmware allow the user to generate USB traffic in hours, not weeks! For the very details you can access the EZ-USB® Technical Reference Manual (TRM) at Here. For software collaterals download SuiteUSB.
Features
High Speed USB2.0 specification at 480Mbps, compatible with USB 1.1
Enhance Cypress EZUSB FX2LP processor CY7C68013A-56, with USB2.0 Core, high speed 8051 core, 16K RAM, GPIF interface, Slave FIFO interface
Built in IDE interface for IDE devices
Powered by USB Port
Compact Design

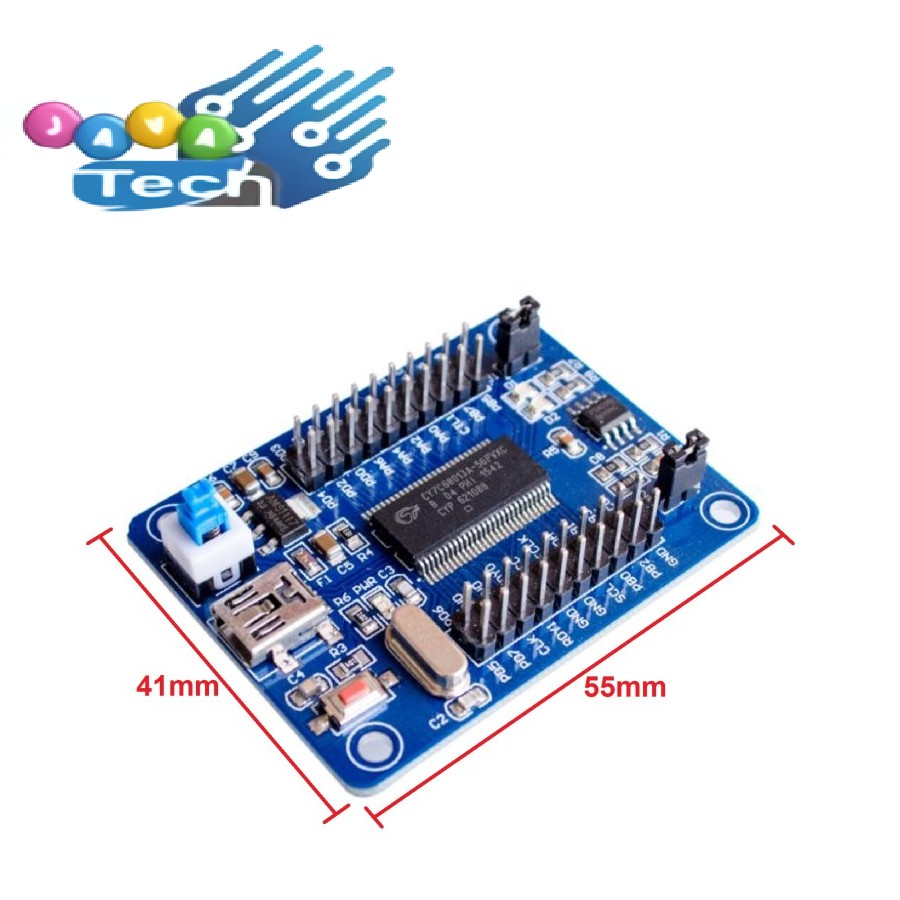

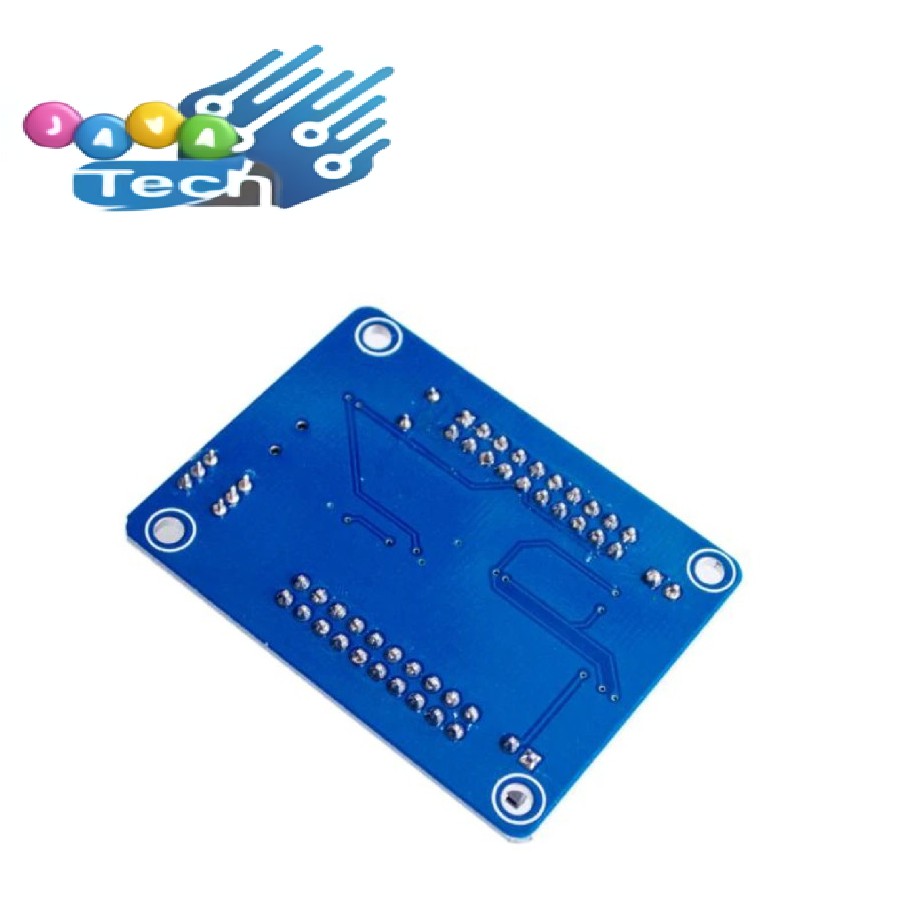

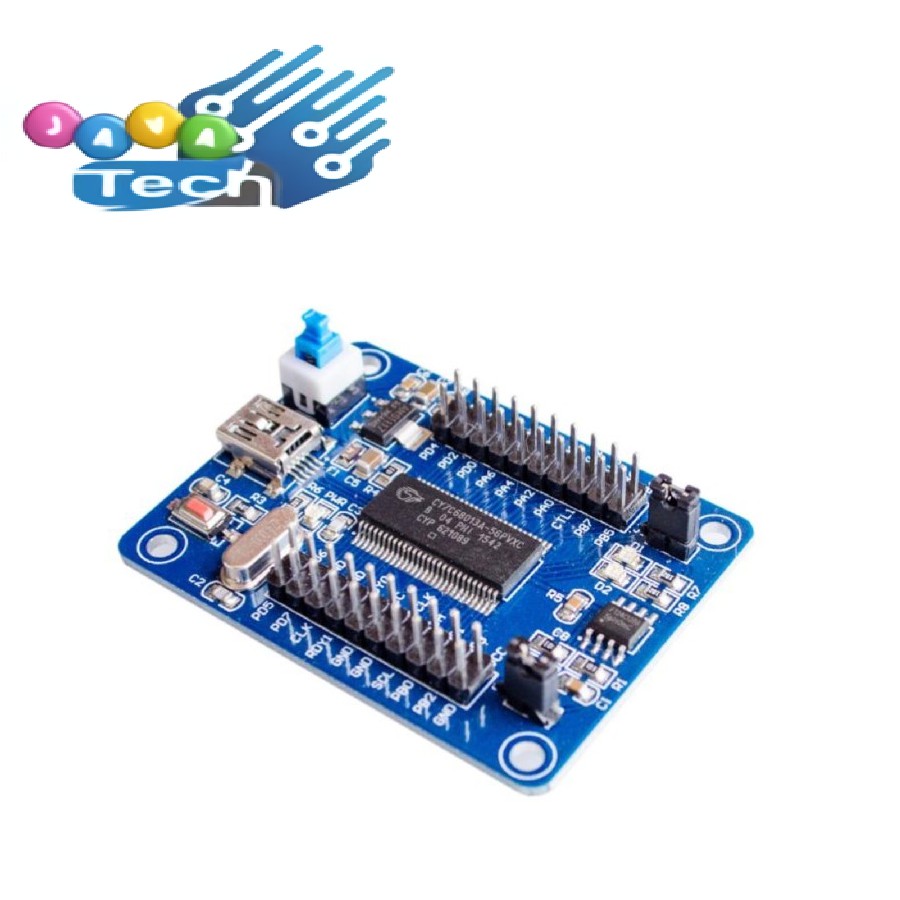

Gambar produk
