Detail Modul EZ-USB FX2LP CY7C68013A USB Logic Analyzer Development Board

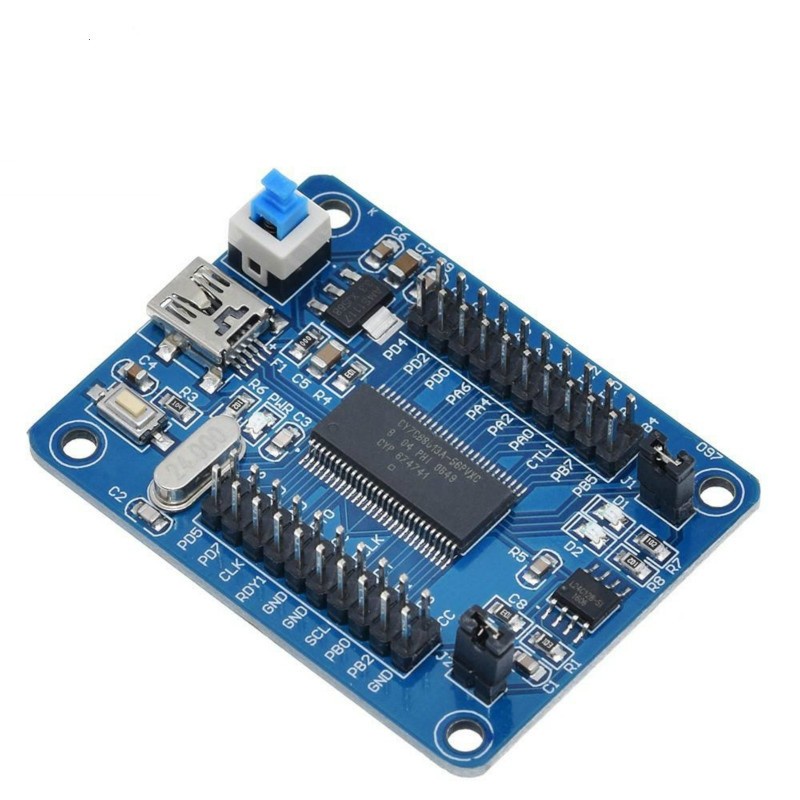

Modul EZ-USB FX2LP CY7C68013A USB Logic Analyzer Development Board

Features：

1. using CY7C68013A-56 chip: low-power version of the enhanced 51-core, 16KB
program data areas, frequency of 48Mhz, 480Mbps high-speed transmission protocol
standards, in line with USB2.0 specification, backward compatible with USB1.1.

2. firmware, EEPROM: Complete in-system programming solution with a USB cable
directly to download firmware, on-board to provide 16K (24LC128) a large program
memory (EEPROM), used as storage VID / PID and the USB firmware, the program
space to meet the CY7C68013A needs.

3. all the GPIO pin through the 2.54mm standard leads to very convenient for
learners to expand their own design.

4, with the appropriate board firmware can be achieved through the core function
of the logic analyzer
