Modul ESP8266 ESP-01 1 Channel Relay Development Board

Detail Modul ESP8266 ESP-01 1 Channel Relay Development Board

Description :
The module is equipped with SRD-05 relay with a coil powered with the voltage of 12 V, with switching options: 10 A / 250 VAC or 10 A / 30 V DC, it is also equipped with the ESP8266 module that provides the control over the devices through wi-fi. The module has 3 operation modes: STA, AP, STA + AP.Additional DAT, RST and CLK pins are used for programming the MCU.

Specification
Supply voltage of the system: 5 V
Relay SRD-05VDC-SL-C (documentation)
Coil voltage: 12 V
The maximum voltage of contacts: 250 VAC, 125 VDC*
Maximum current: 10 A
Wifi module ESP8266, ESP-01 type (not include)
Communication: UART (for programming required is the USB-UART converter )
It supports wi-fi standard - wi-fi 802.11 b, g, n
It operates in the 2.4 GHz frequency
3 operation modes: STA, AP, STA + AP
Wifi module ESP8266
It supports the AT commands
It has a built-in PCB antenna
The maximum transmission distance: 400 m
Dimensions: 45 x 28 mm

www.hackster.io/makerrelay/esp8266-wifi-5v-1-channel-relay-delay-module-iot-smart-home-e8a437

nb: belum termasuk modul wifi esp-01

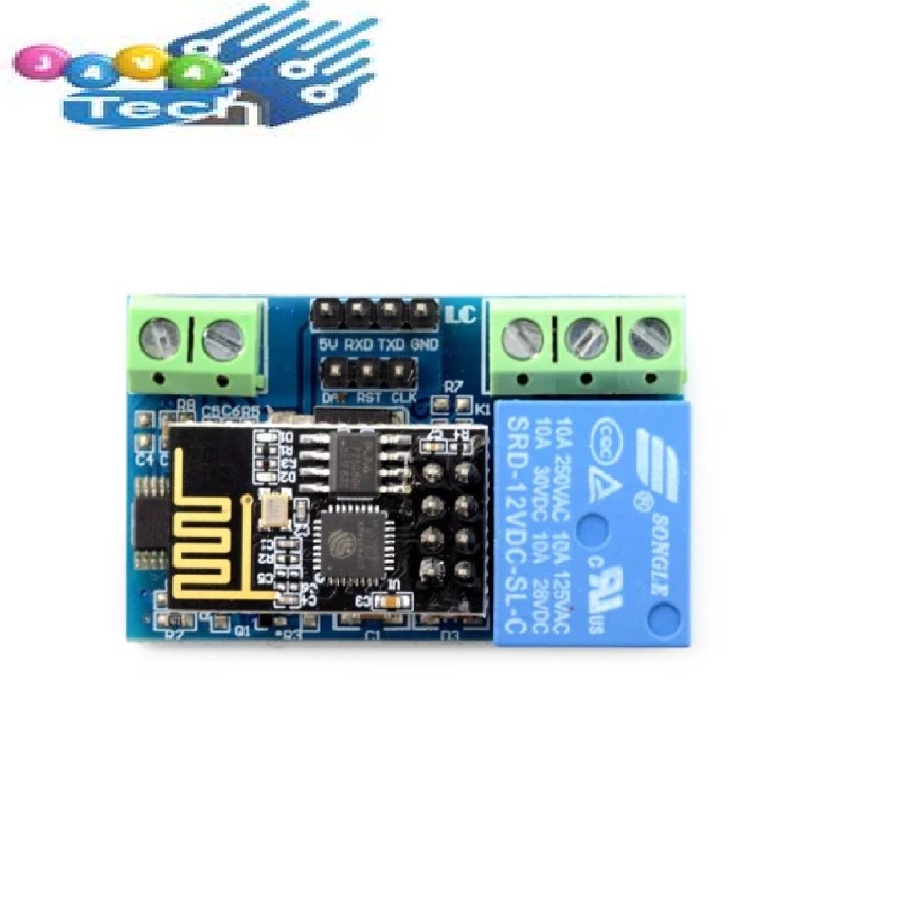

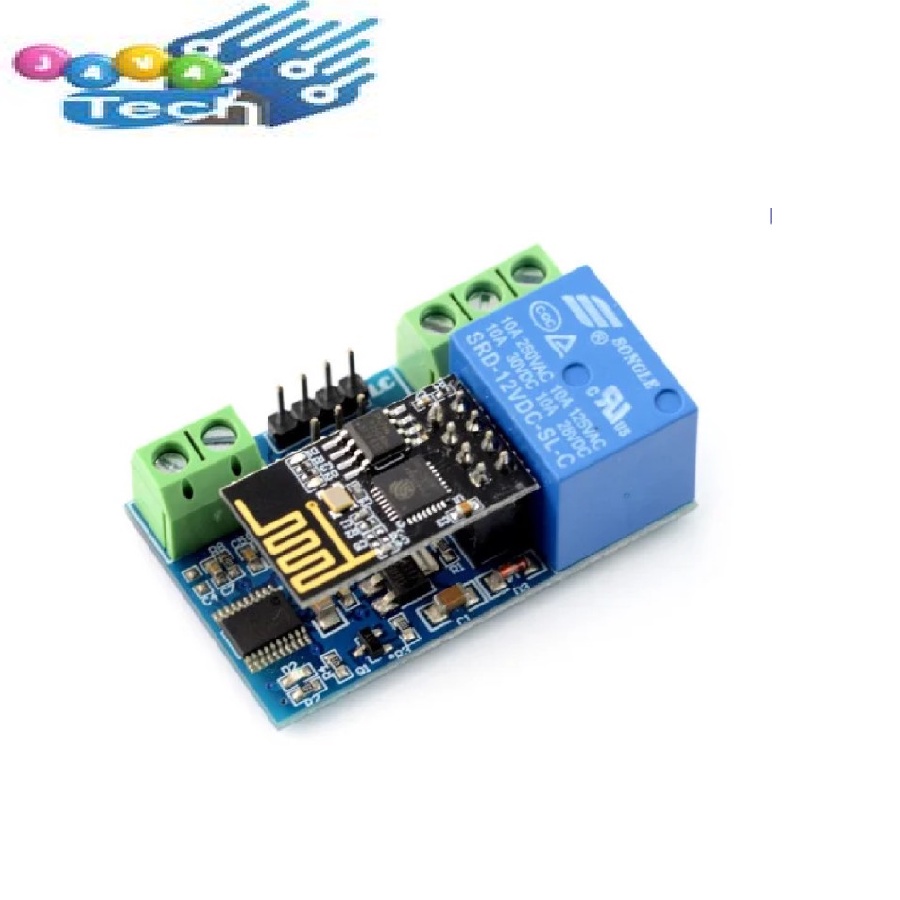

Gambar produk
