Modul ESP01 ESP-01 ESP8266 Module Wifi Wireless Arduino Uno R3 Mega

Detail Modul ESP01 ESP-01 ESP8266 Module Wifi Wireless Arduino Uno R3 Mega

Original ESP8266 ESP-01 ASLI 100%

ESP8266 -01 atau sering disebut ESP-01
Versi UPGRADE!!!! firmware versi terbaru
Board warna Hitam..sudah dilengkapi Firmware Ter-update..
Bisa langsung dipakai tanpa Flash firmware lagi..
Firmware AT command Built in versi baru

Fitur :
'' Wifi 802.11 b/g/n
'' Integrated low power 32-bit MCU
'' Integrated 10-bit ADC
'' Integrated TCP/IP protocol stack
'' Integrated TR switch, balun, LNA, power amplifier and matching network
'' Integrated PLL, regulators, and power management units
'' Supports antenna diversity
'' Wi-Fi 2.4 GHz, support WPA/WPA2
'' Support STA/AP/STA+AP operation modes
'' Support Smart Link Function for both Android and iOS devices
'' SDIO 2.0, (H) SPI, UART, I2C, I2S, IRDA, PWM, GPIO
'' STBC, 1x1 MIMO, 2x1 MIMO
'' A-MPDU & A-MSDU aggregation and 0.4s guard interval
'' Deep sleep power 10uA , Power down leakage current < 5uA
'' Wake up and transmit packets in < 2ms
'' Standby power consumption of < 1.0mW (DTIM3)
'' +20dBm output power in 802.11b mode
'' Operating temperature range -40C ~ 125C

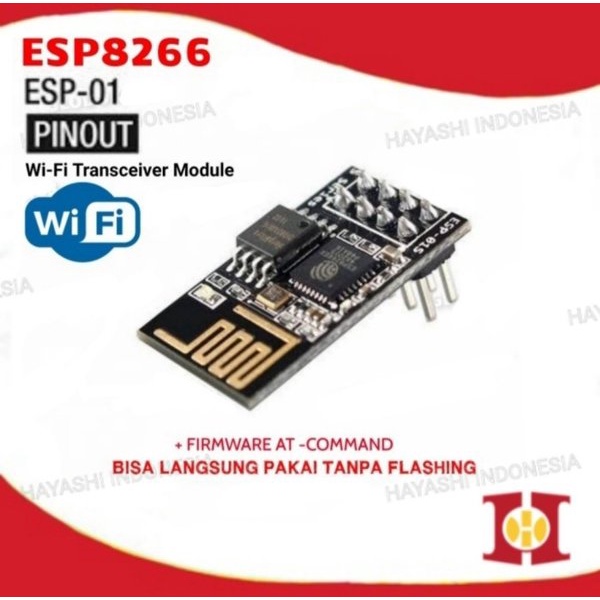

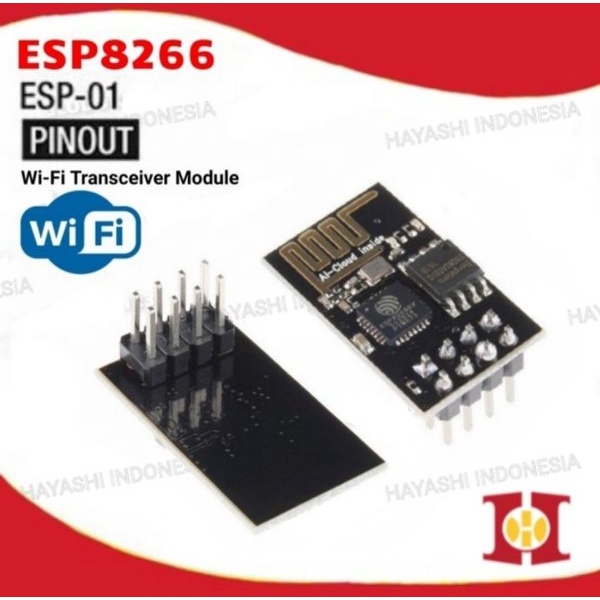

Gambar produk
