Modul DRV8825 Reprap Stepper Motor Driver
Deskripsi singkat
Komputer & Aksesoris > Komponen Desktop & Laptop > UPS & Stabilizer > Modul DRV8825 Reprap Stepper Motor Driver
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail Modul DRV8825 Reprap Stepper Motor Driver
Modul DRV8825 Reprap Stepper Motor DriverFeatures
1. maximum current of 2.5A.
2. up to 32 segments.
3. 4-layer PCB, better heat dissipation.
4. the chip resistance is smaller, less heat, and better heat dissipation.
Size: 1.5X2mm
Subdivision: 1,1 / 2,1 / 4,1 / 8,1 / 16,1 / 32
Manufacturing Process: SMT placement machine higher manufacturing, non-manual welding, yield more stable performance
Supported 3d printers :Prusa Mendel, ultimaker, printbot, makerbot like.
You can refer back Arduino code, direct drive motors
This breakout board for TIs DRV8825 microstepping bipolar stepper motor driver features adjustable current limiting, over-current and over-temperature protection, and six microstep resolutions (down to 1/32-step). It operates from 8.2 V to 45 V and can deliver up to approximately 1.5 A per phase without a heat sink or forced air flow (rated for up to 2.2 A per coil with sufficient additional cooling).
For more infomtion :https://www•pololu•com/product/21332

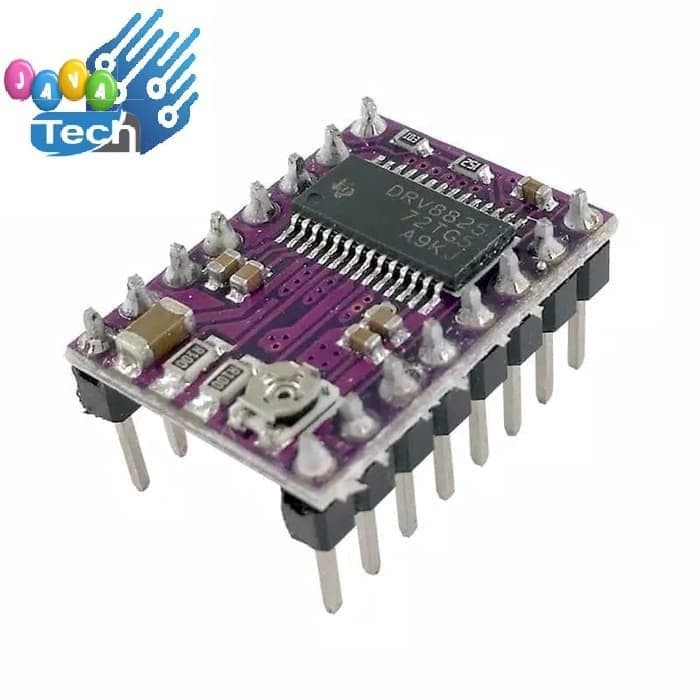

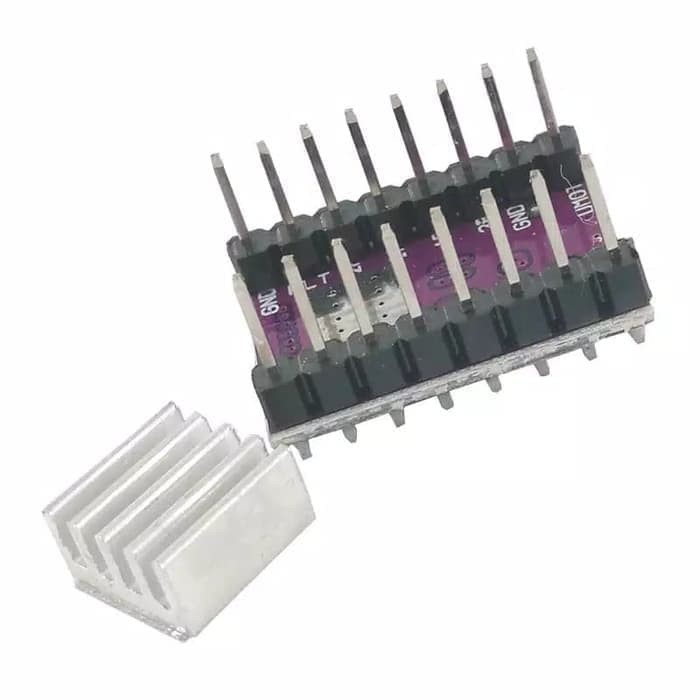

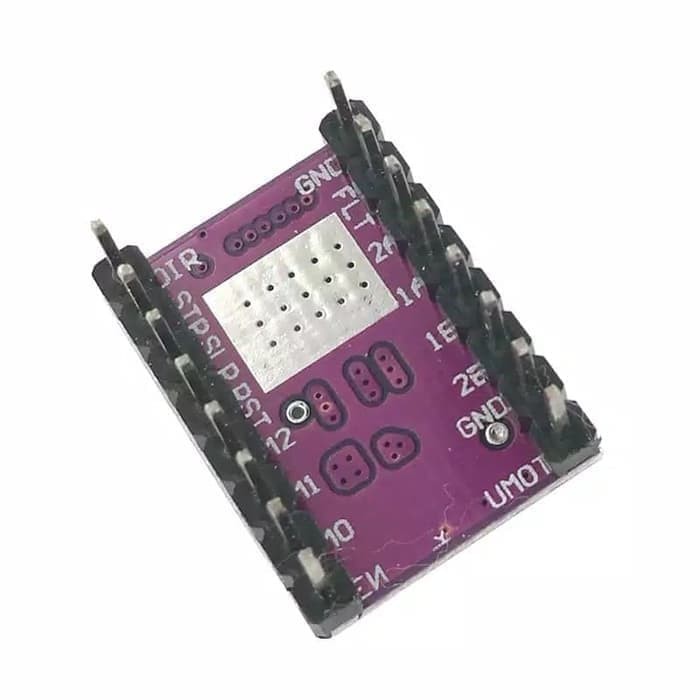

Gambar produk
