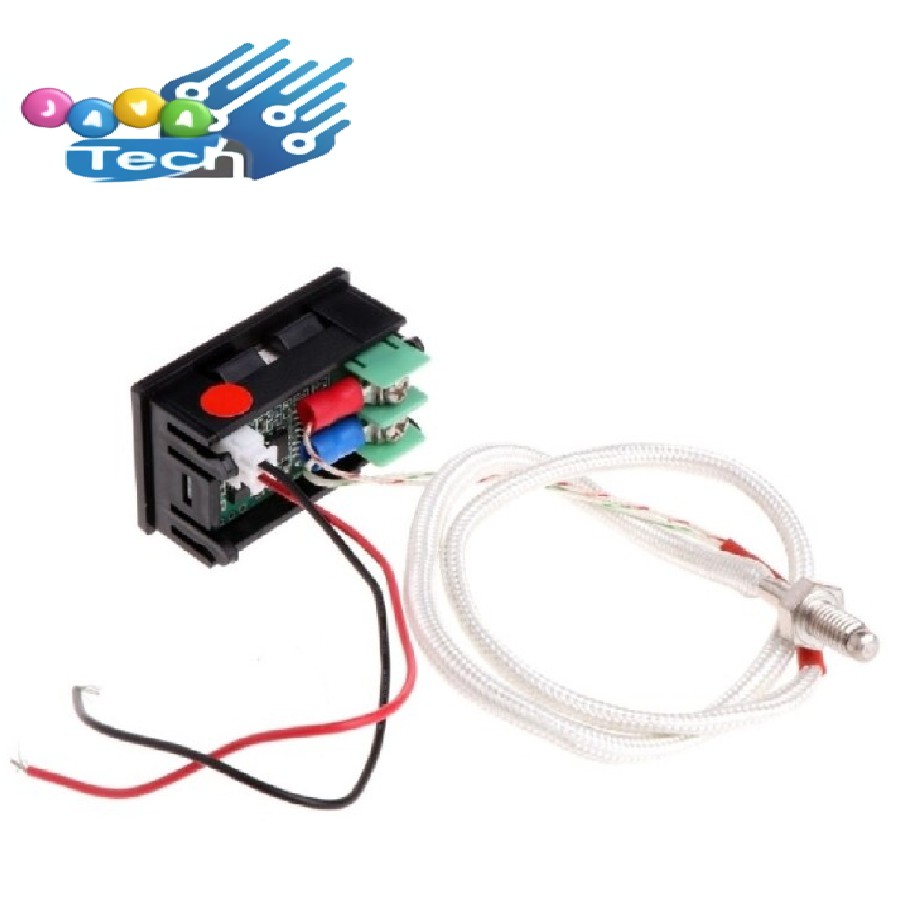

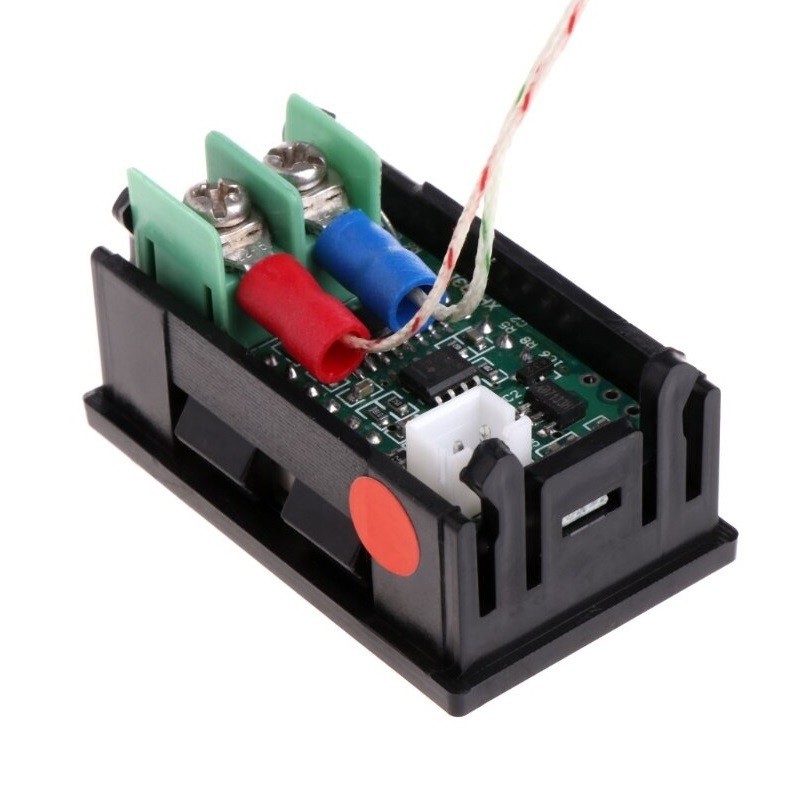

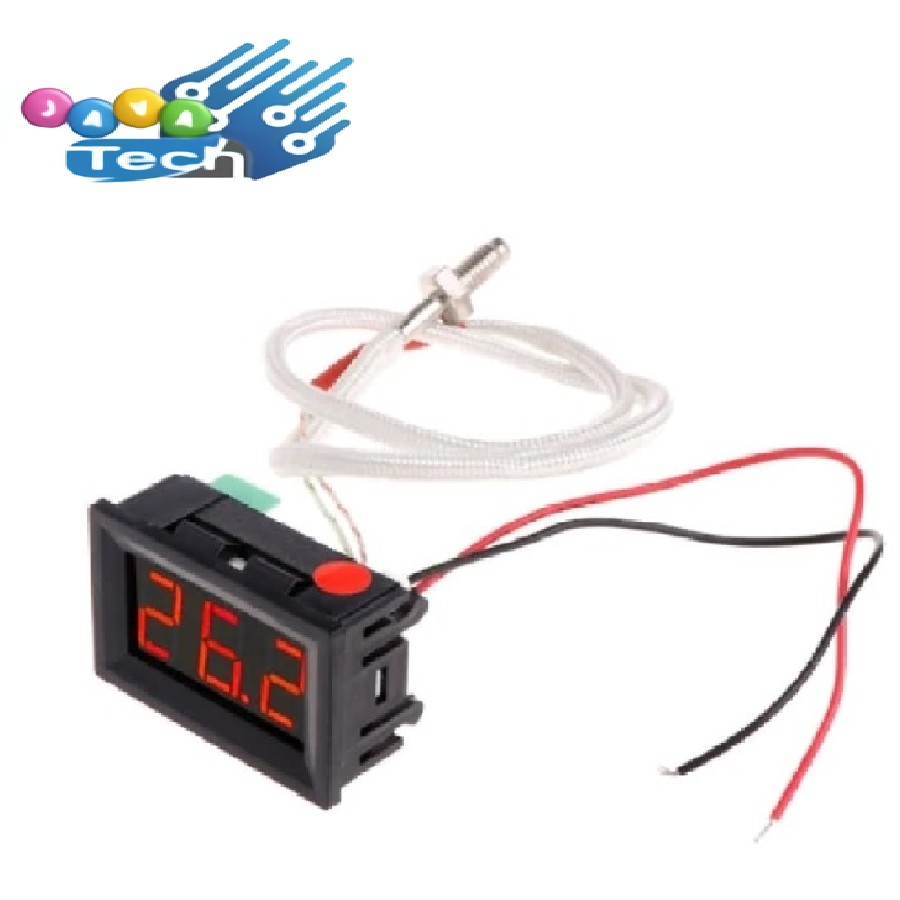

Modul Display Suhu HX-B310 DC 12V Sensor Thermocouple Type-K

Detail Modul Display Suhu HX-B310 DC 12V Sensor Thermocouple Type-K

Feature
1.Industrial chip (Dual power + Triple-core chip)
2.High-precision
3.Anti-interference
4.Embedded installation
5.Reverse connection protection
6.LED display

Description
Temperature range: -30-800°c
Refresh rate: 4 times / sec
Temperature measurement accuracy: ±0.3°

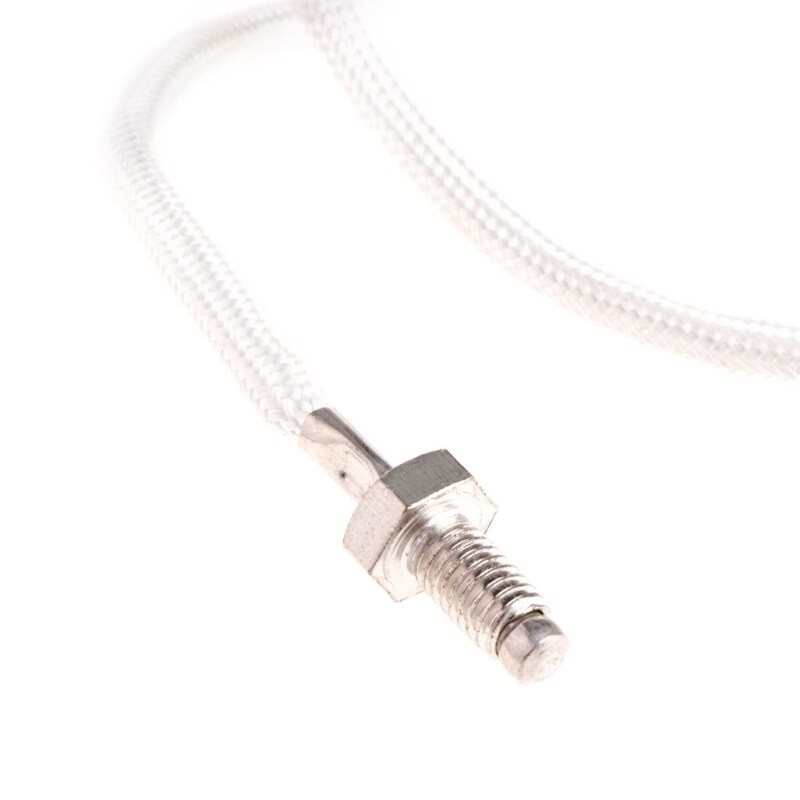

Temperature probe: K type thermocouple(Thread:M6)
Supply voltage: DC 12V
Dimensions: 48 * 29 * 23mm
Embedding hole: 45.5 * 26mm
Display window: 35 * 18mm
Display color: red
Case color: Black

Note:
Size for manual measurement, there may be a 0 to 2mm error, belongs to the normal phenomenon.
And due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package included
1x XH-B310
1x Temperature Sensor(M6 Thread)

Gambar produk
