Detail Modul Display Lcd Oled 128x64 Untuk Arduino 0.96 "I2C Iic
Description:128*64 LED display module for Arduino, supports many control chip.
Fully compatible with Arduino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.
Ultra-low power consumption: full screen lit 0.08W
Super high brightness and contrast are adjustable
With embedded driver/controller
Interface type is IIC

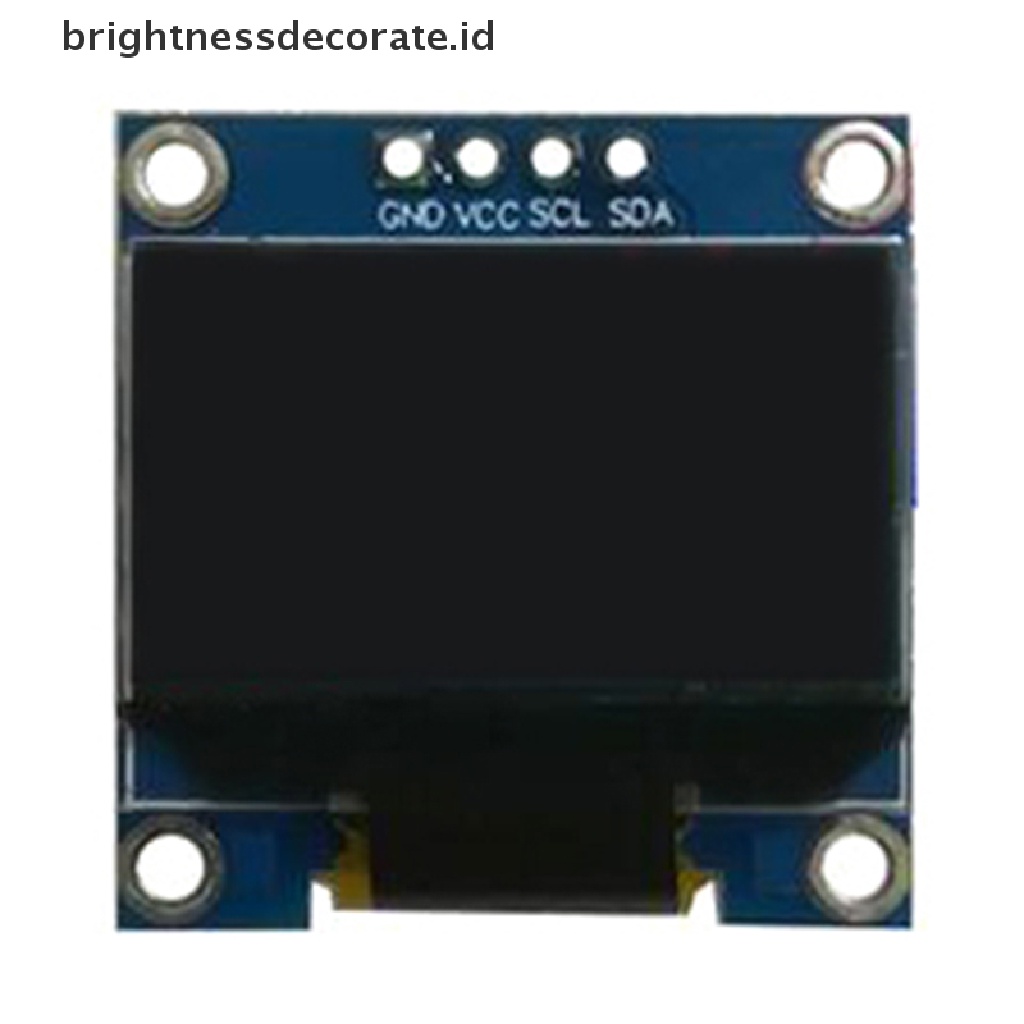

Pin Definition: GND, VCC ,SCL, SDA
Pins: 4 pins
Voltage: 3V ~ 5V DC
Working Temperature: -30 ℃ ~ 70 ℃
Character Colors: White(as pictures show)
Drive Duty: 1/64 Duty
High resolution: 128 * 64
Driver IC: SSD1306
Note: The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness
Package Included:
1PC*128x64 White LED display module for Arduino
Gambar produk
