Modul DC-DC Voltage Converter Multi Output 12V 5V 3.3V 800mA

Detail Modul DC-DC Voltage Converter Multi Output 12V 5V 3.3V 800mA

Deskripsi Modul DC-DC Voltage Converter Multi Output 12V 5V 3.3V 800mA
This DC-DC step down module can convert 12V to 3.3V, and there is also a 12V output.
Specially designed two rows of needle fixing hole that can be directly fixed on universal PCB to extend the experiment.
Using multiple input and output pins, easy to use and connect.
There is a red power supply indicator light that you can check power state.
Input voltage can be DC 6V to 12V, but input voltage should be 1V higher than output voltage
Specifications:
Input Voltage: DC 6V to 12V
Output Voltage: 3.3V (± 0.05v error),
5V (± 0.05v error),
12V (12V input directly to the output)
Max. Output Current: 800mA (load current can not exceed 800mA)

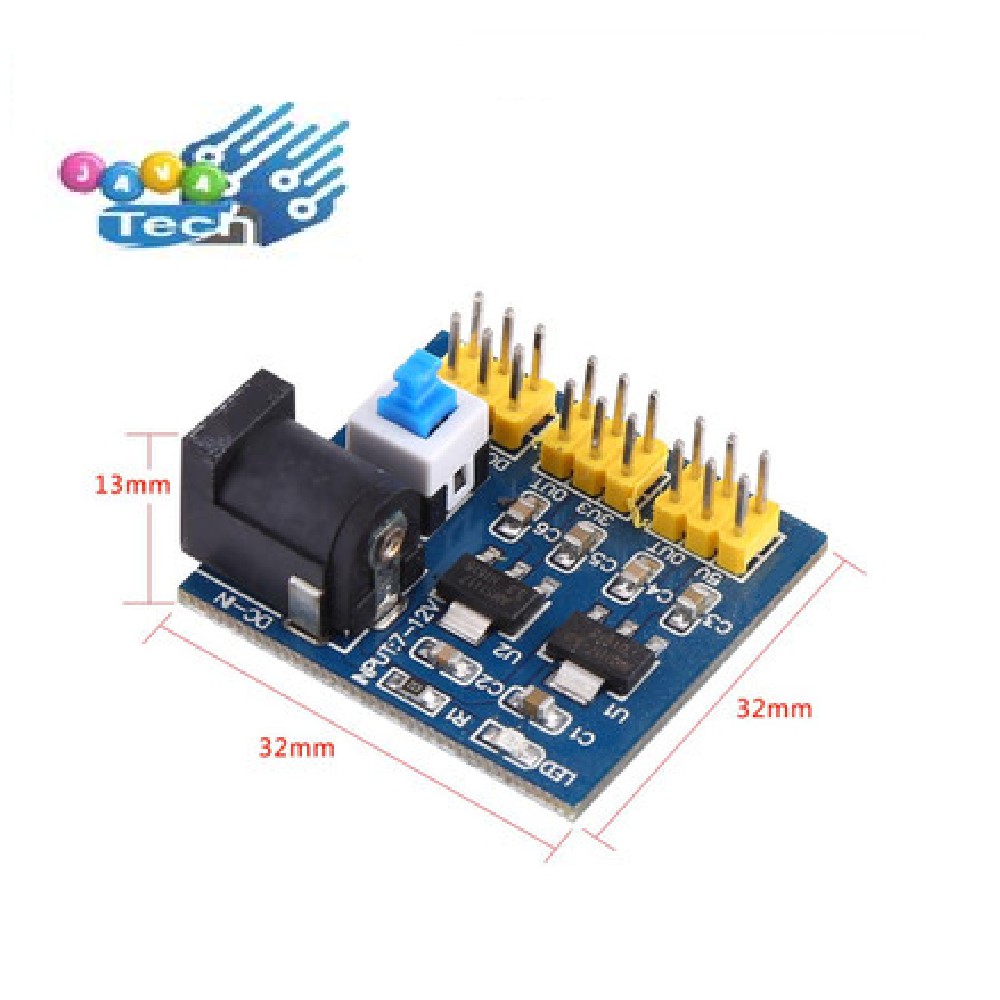

Size: 32 x 32 x 13mm / 1.26 x 1.26 x 0.51"

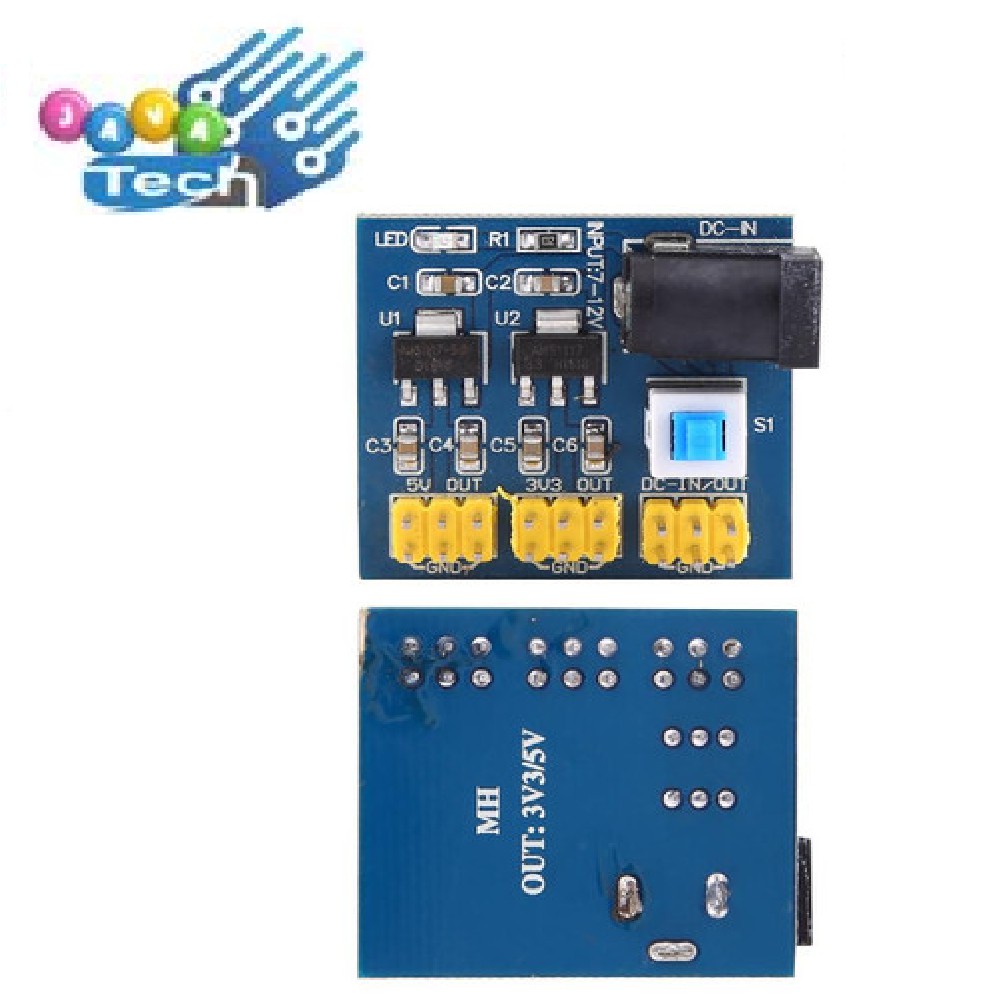

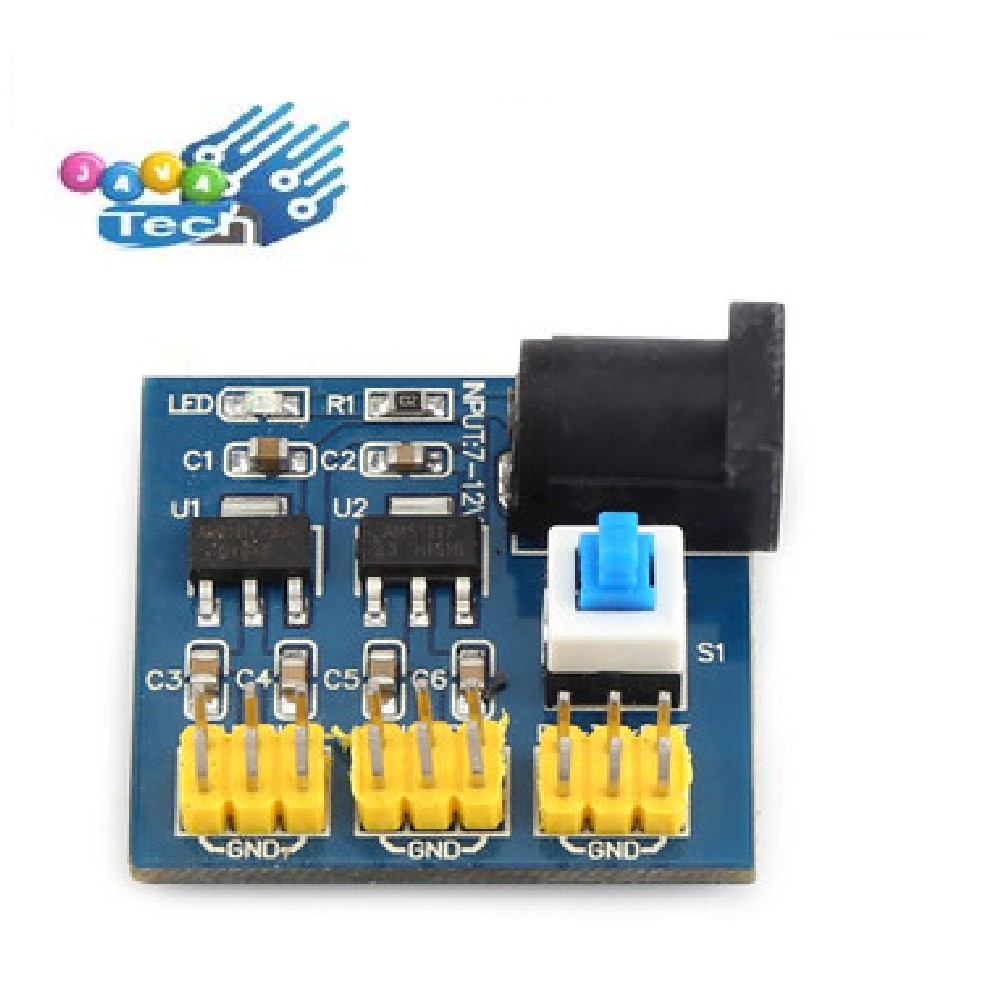

Gambar produk
