Modul Converter Step up DC to CT 3.3V~13V to ±15V 3 ~ 4 mA for Buffer / PreAmp / Tone Control / Equalizer
Deskripsi singkat
Elektronik > Elektronik Lainnya > Modul Converter Step up DC to CT 3.3V~13V to ±15V 3 ~ 4 mA for Buffer / PreAmp / Tone Control / Equalizer
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait

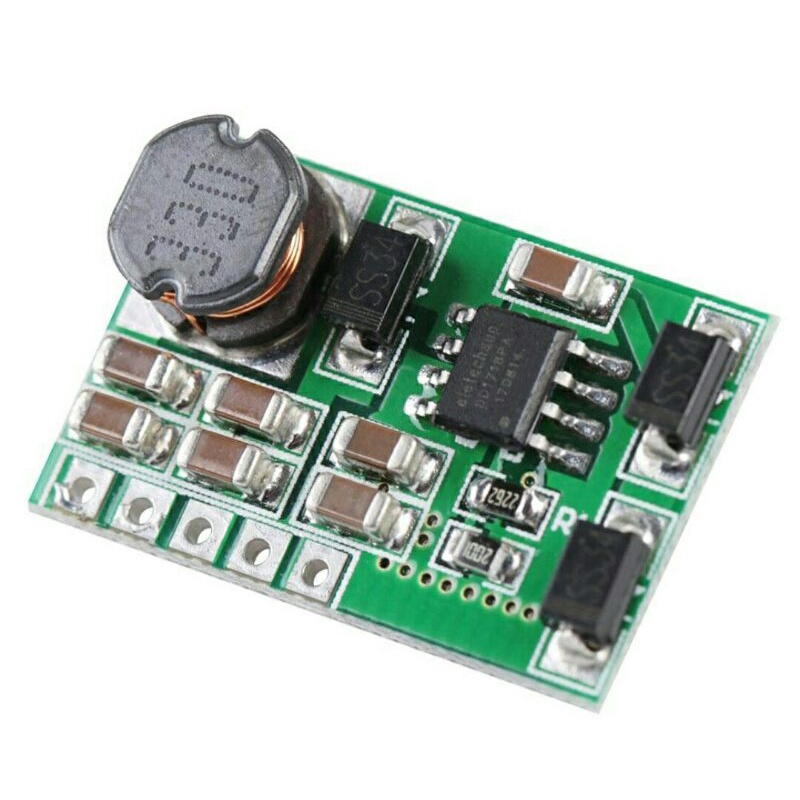

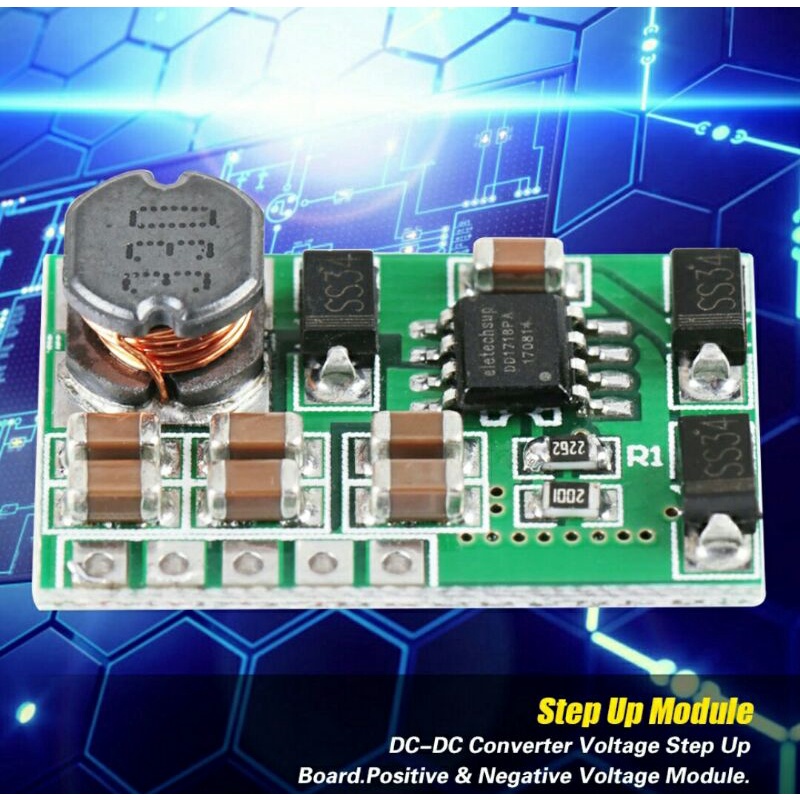

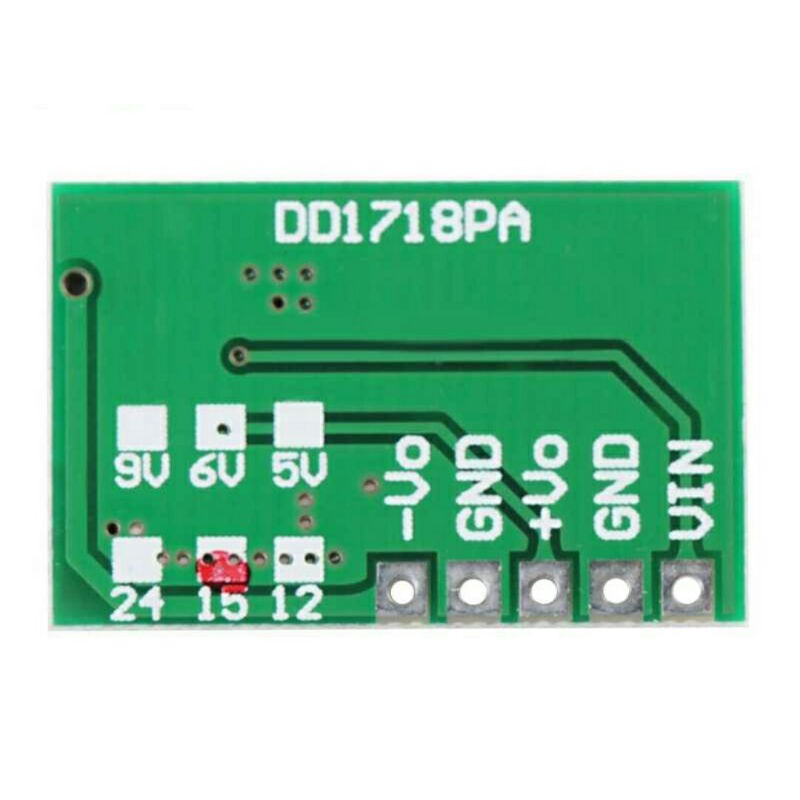

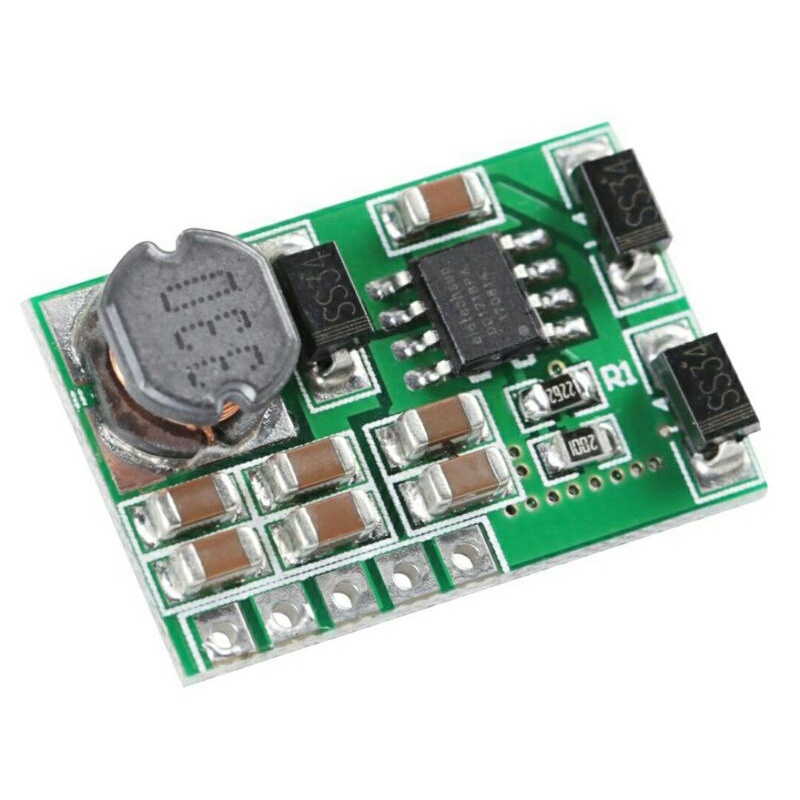

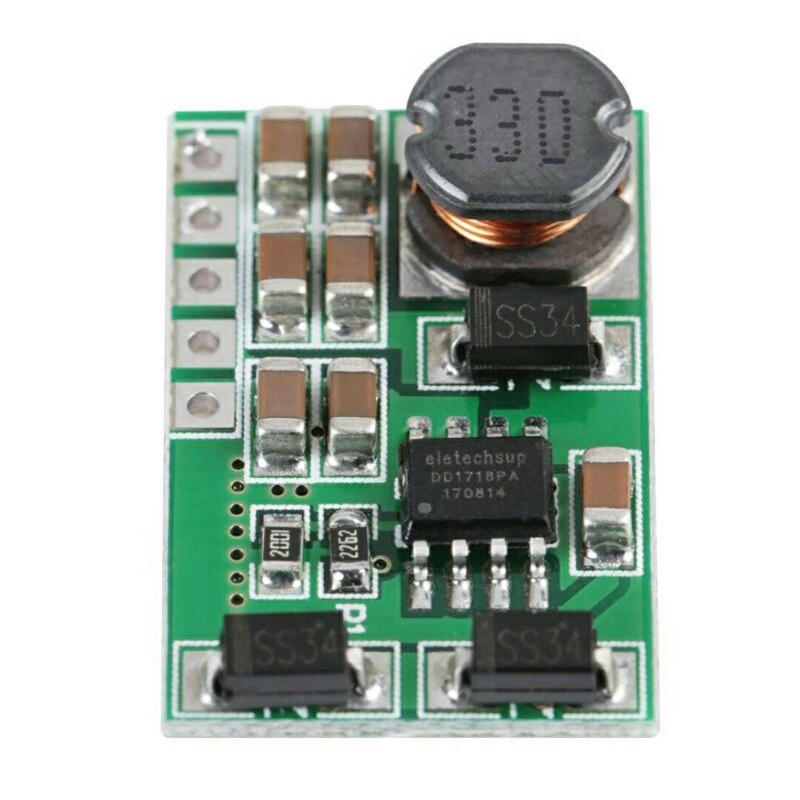

Detail Modul Converter Step up DC to CT 3.3V~13V to ±15V 3 ~ 4 mA for Buffer / PreAmp / Tone Control / Equalizer
Features:100% brand new and high quality.
This step up module can convert 3.3V~13V to ±15V.
The module can output positive and negative voltages.
Small size and light weight, it is convenient to use.
It can be widely used as power supply for for ADC, DAC, LCD, etc.
Specification:
Input: 3.3~13V
Output: ±15V
Maximum Input Current: 1.8A
Maximum Output Current: +Vo 600mA,-Vo 120mA
Quiescent Current: 3-4mA
Working Frequency: 400kHz
Operating Temperature: -40~+125℃
Storage Temperature: -65~+150℃
Weight: 2g / 0.1oz (approx.)
Package List:
1 * Module
Gambar produk
