Modul Charger Aki Digital LCD Display Otomatis Cut Off 10A DC6-60V

Detail Modul Charger Aki Digital LCD Display Otomatis Cut Off 10A DC6-60V

Tersedia 2 Varian

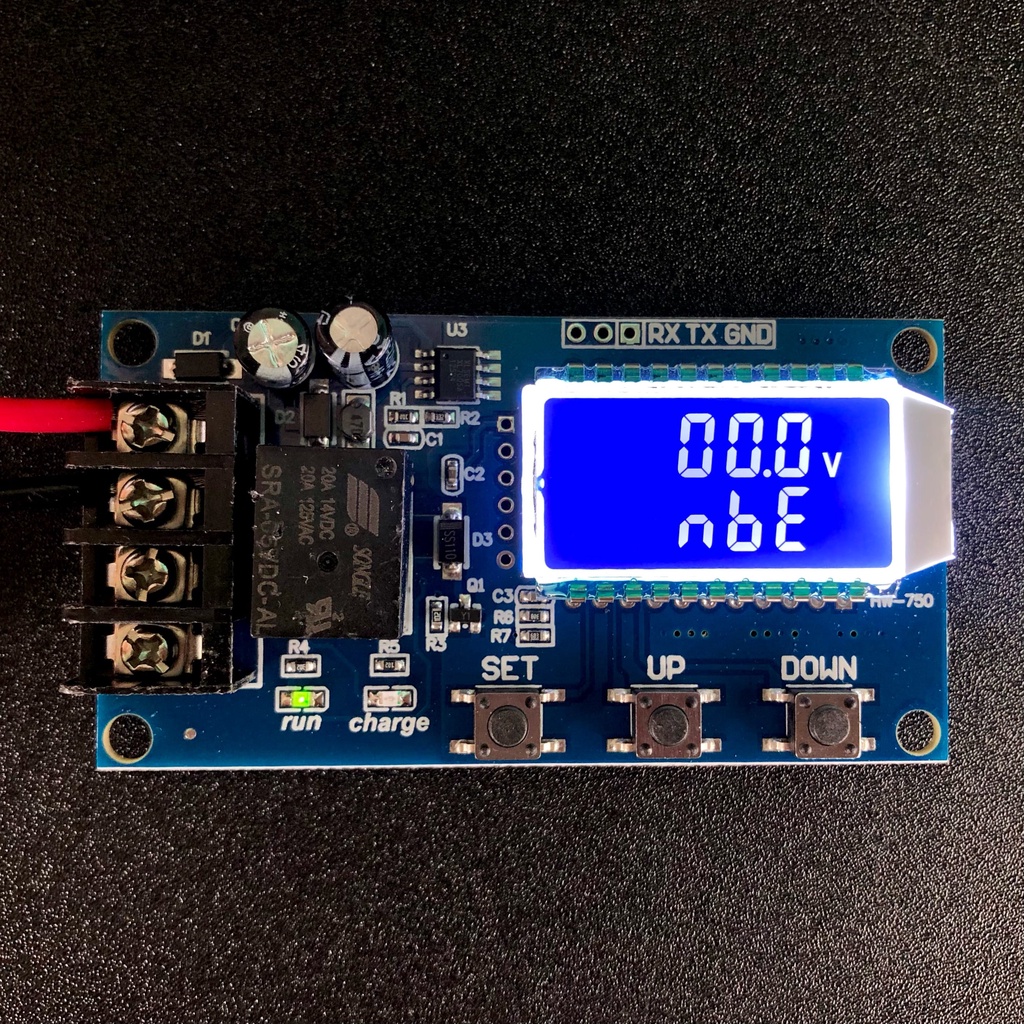

- Tanpa casing (module saja)

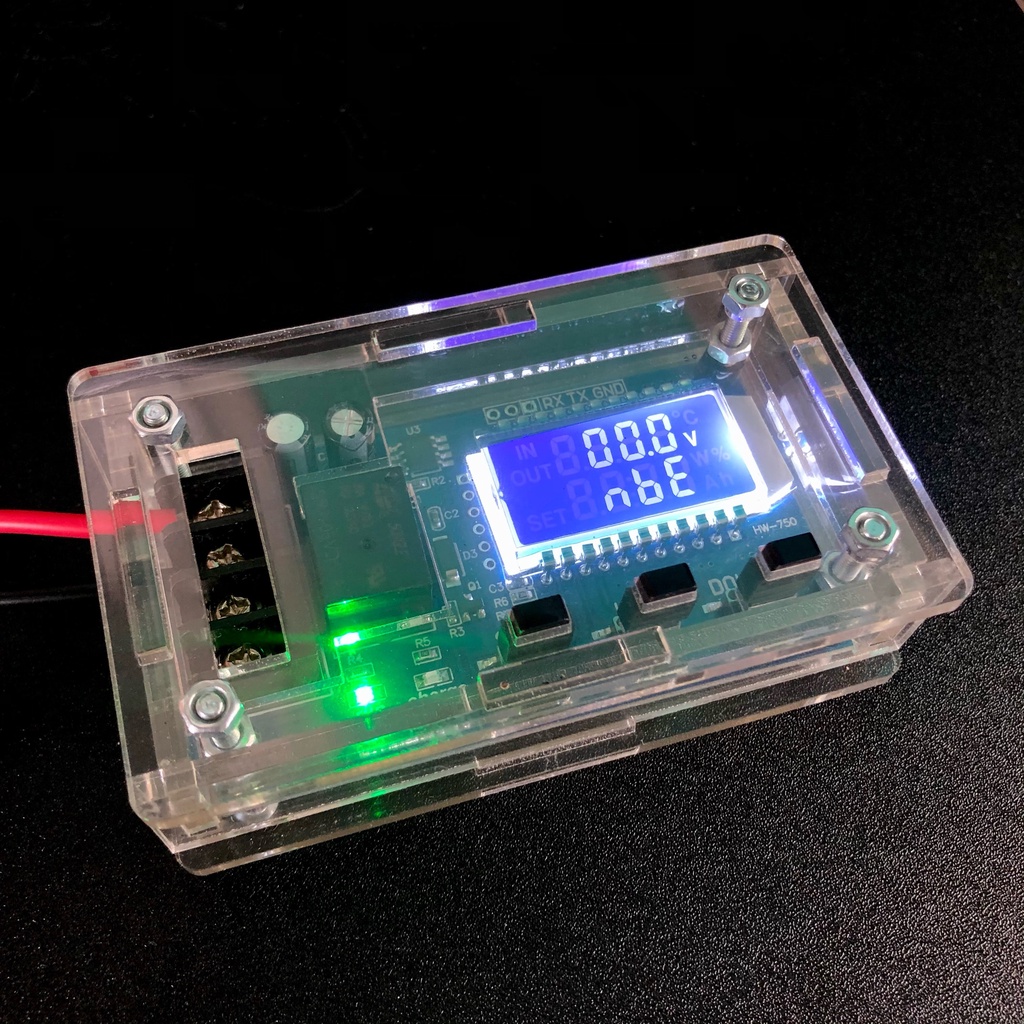

- Dengan Casing (casing akrilik sudah dirakit)

Feature:
- Support Lead-acid battery and Acting Battery, voltage range:6V~60V;
- Dapat menampilkan tegangan, persen baterai, waktu pengisian pada saat yang sama
- Dapat mengontrol pengisian dg otomatis, waktu pengisian, juga dapat mengatur dan mengunggah parameter yang sesuai melalui port serial

------
Specifications:
Product Model:XY-L10A
Control voltage:DC6-60V
Control current:<10A
Control accuracy:0.1V
Output Type: Direct Output
Voltage error:±0.1V
Scope of application: various lithium batteries

Function description

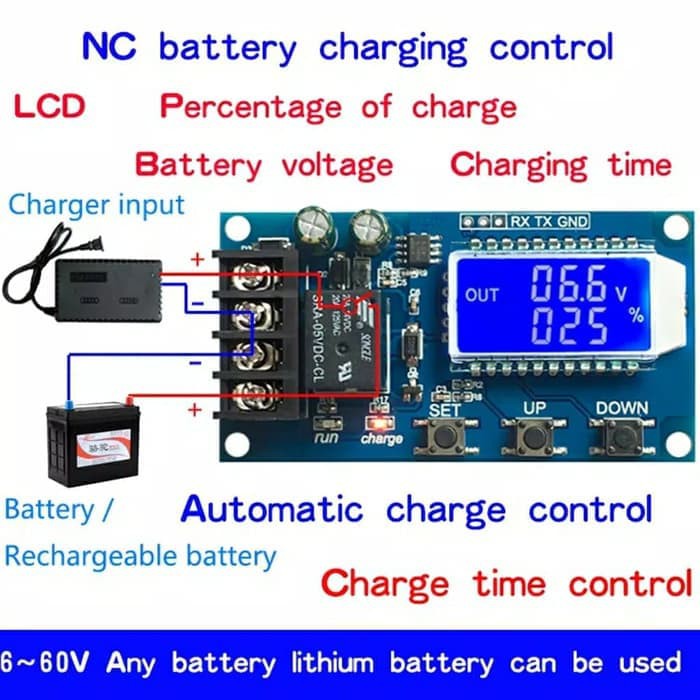

Automatic Charge control function：
By setting the volt-HI:‘UP’ volt-LI:‘dn’
When the battery voltage is below the volt-LI:’dn’,the relay leads,the charger begins to charge the battery;
when the battery voltage is up to volt-HI:’UP’,the relay is diconnected and the automatic charge is completed once

Parameter Setting
-Press and hold the SET key to enter the setting interface;
-Switch the parameters you want to set by short press SET;
-After the selection of parameters, can be set by the UP/DOWN key to support the short press, long press (fast increase or decrease); To set other parameters, repeat step b, c);
-After all parameters are set, long press set key to exit and save;

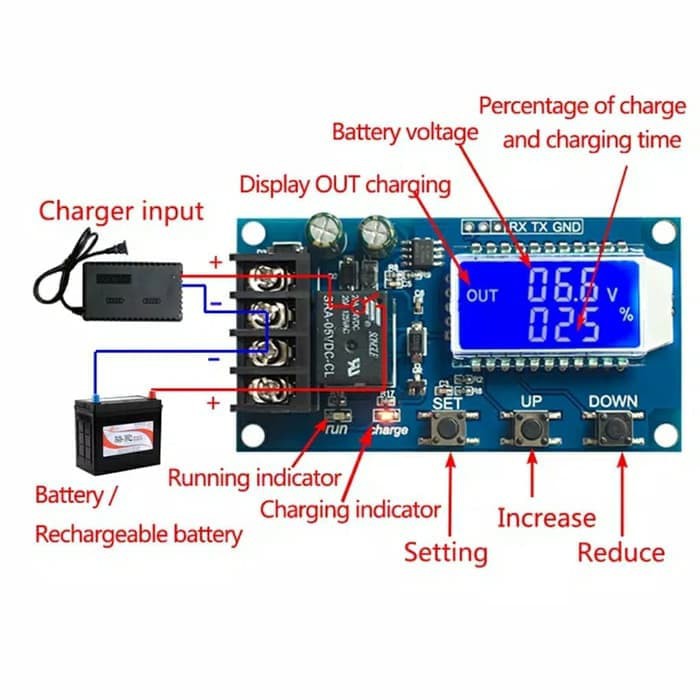

The Key Function Description:
In the Run interface (main interface)
Short press SET button to display the current set of parameters

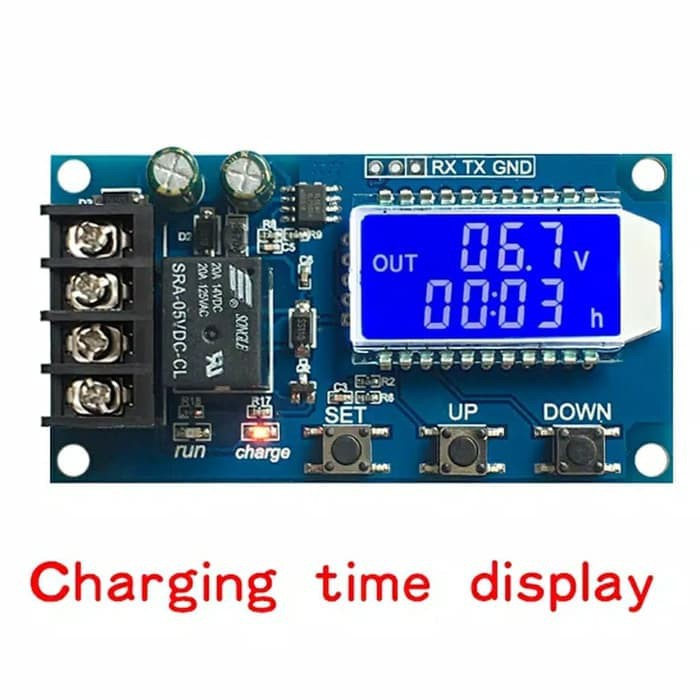

Short press UP button, toggle display charge percentage and charging time;
Short Press DOWN button, select Turn on/off relay enabling, if the relay can be closed, will show ' off ' as a reminder;
Long press UP button, switch low power state
on：No operation in 10 minutes turn off backlight
OFF: Backlight is always bright
Long press SET button,enter the parameter settings.
Calculation of voltage percentage：
voltage percentage = battery voltage/(volt-HI – volt-LI)

Package Includes:

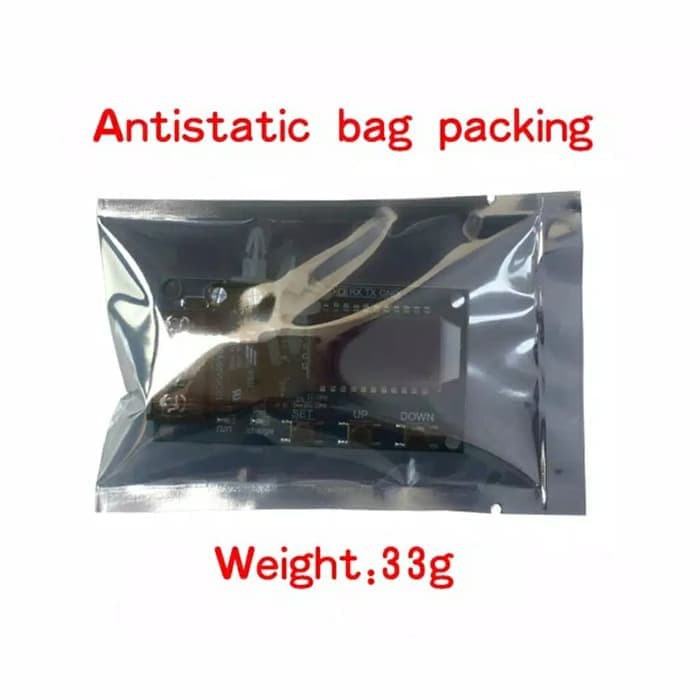

1x Battery Charger Control Modul

Gambar produk
