Modul Charger 3.7V to 5V 9V Lithium Baterai & Booster

Detail Modul Charger 3.7V to 5V 9V Lithium Baterai & Booster

Deskripsi Modul Charger 3.7V to 5V 9V Lithium Baterai & Booster
Debug before the use of the default output of about 9V

Input voltage 4.5-8V

The output voltage can be continuously adjusted 4.3-27V

(4.3V or more and any voltage below 27V can output their own adjustment Counterclockwise boost)

Charging voltage 4.2V charging current up to 1A

The discharge current is up to 2A. The output current is calculated by itself.

Output reference maximum current 5V 1.4A, 9V 0.8A, 12V 0.6A

Static current is about 0.5 mA

Overshoot protection

Overdischarge protection is not available (it can be said that there is 2V cut-off boost, But the output is not blocked, there is still 2V)

Cut-off boost 2V, depending on the situation, whether to add a protection board

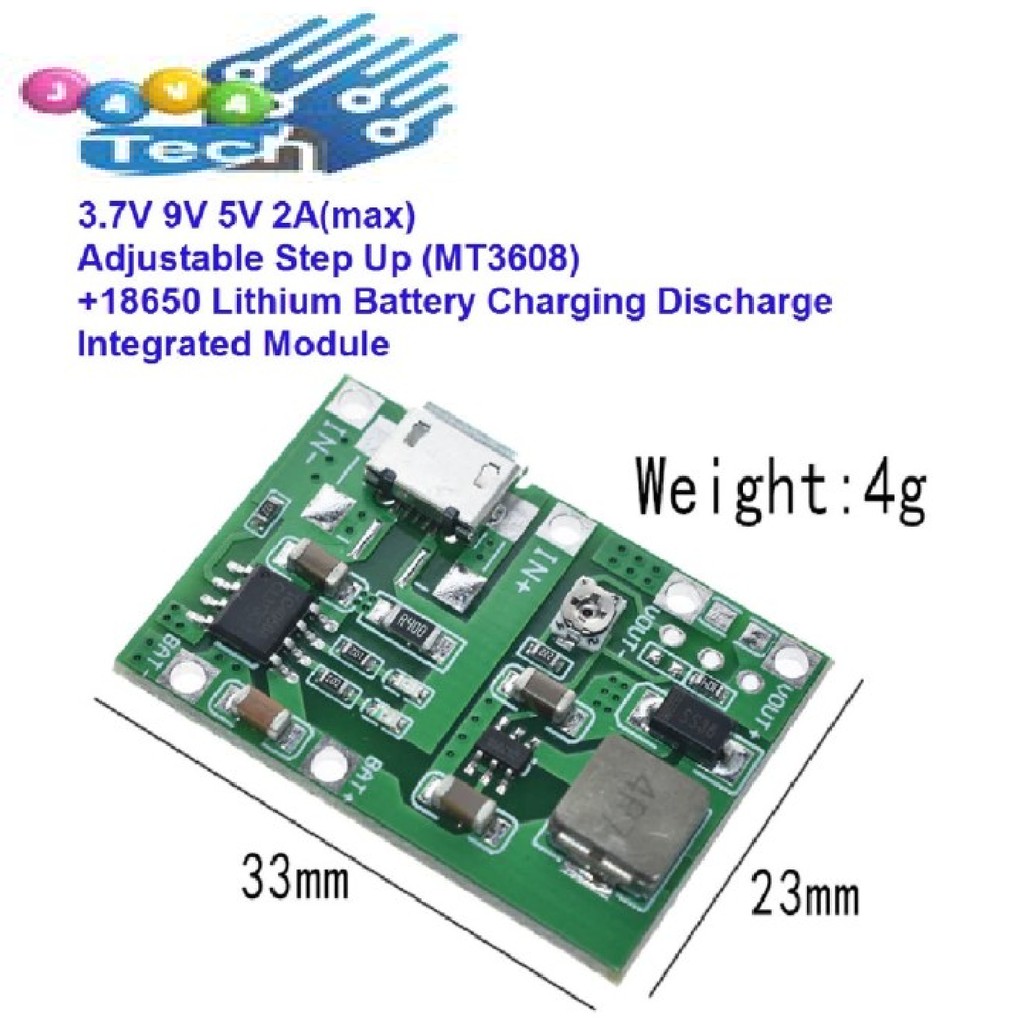

Size 3.3X2.3X0.9

For example, VIN+ terminated with 5V solar panel. BAT+ terminal can output 4.2V to charge 3.7V 18650 battery.

The OUT+ terminal can output an adjustable voltage.

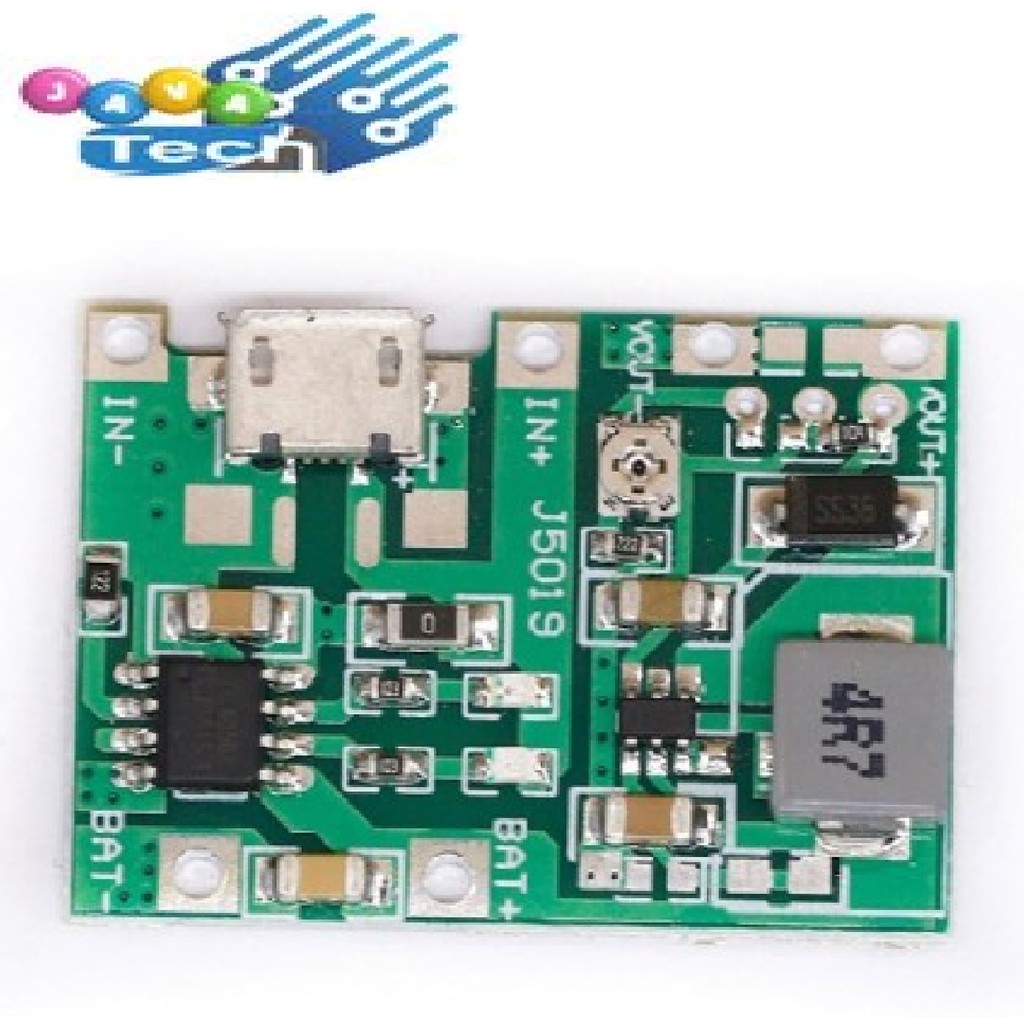

Gambar produk
