Modul CAR DVR 4 Kamera, Quad Vehicle Recorder

Detail Modul CAR DVR 4 Kamera, Quad Vehicle Recorder

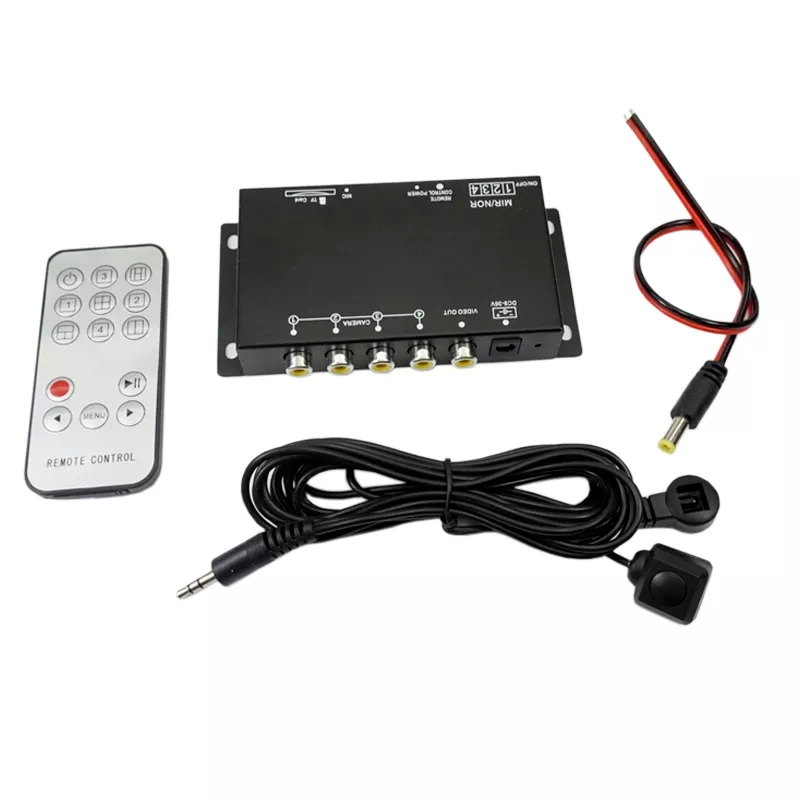

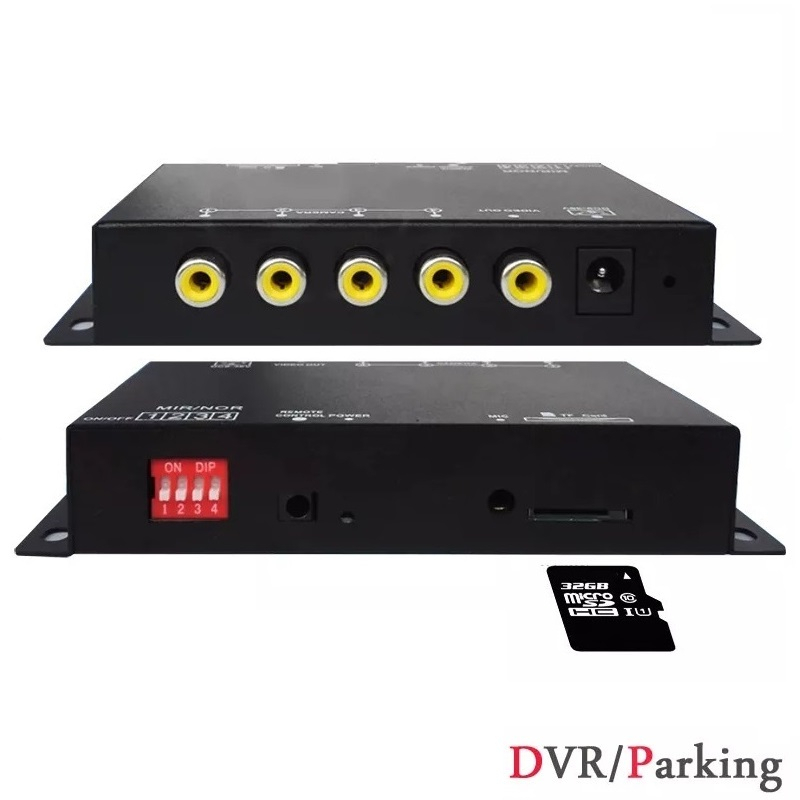

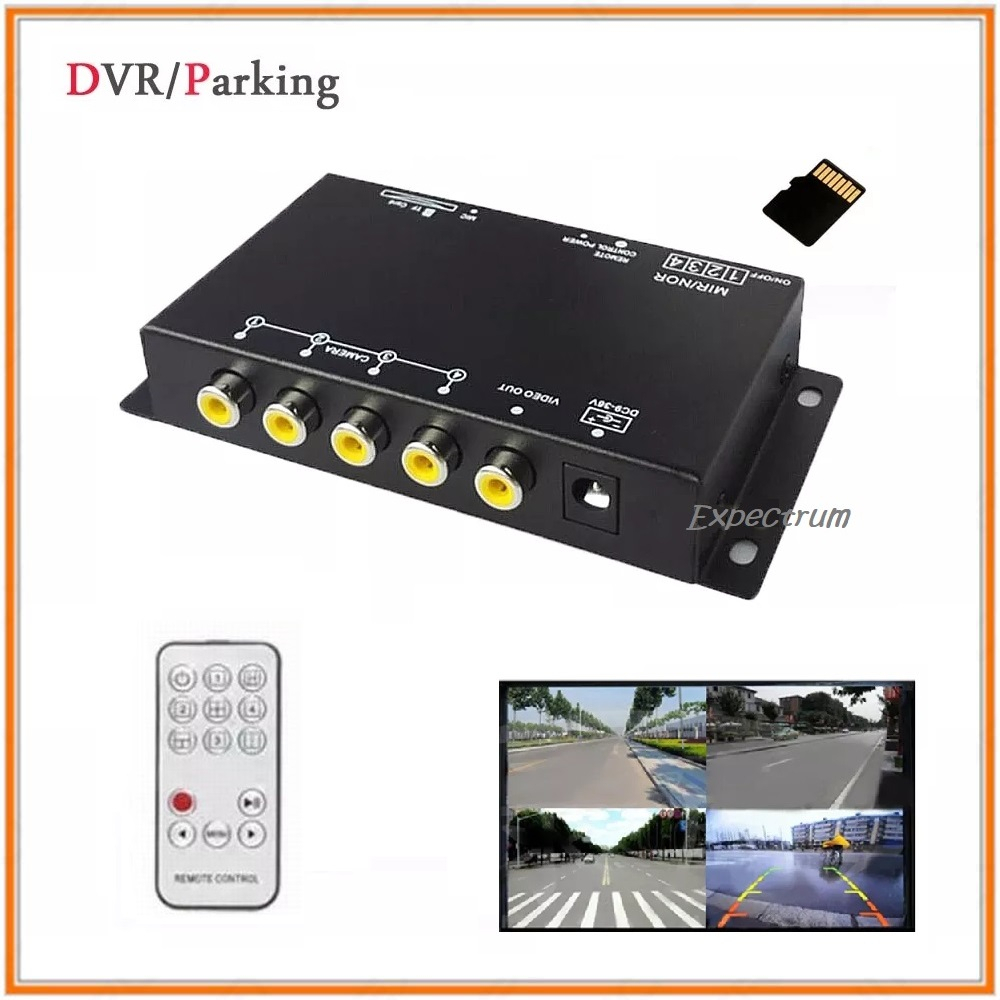

Modul CAR DVR 4 Kamera, Quad Vehicle Recorder

Belum termasuk KAMERA, MODUL aja

Kamera bisa pilih di lapak sy

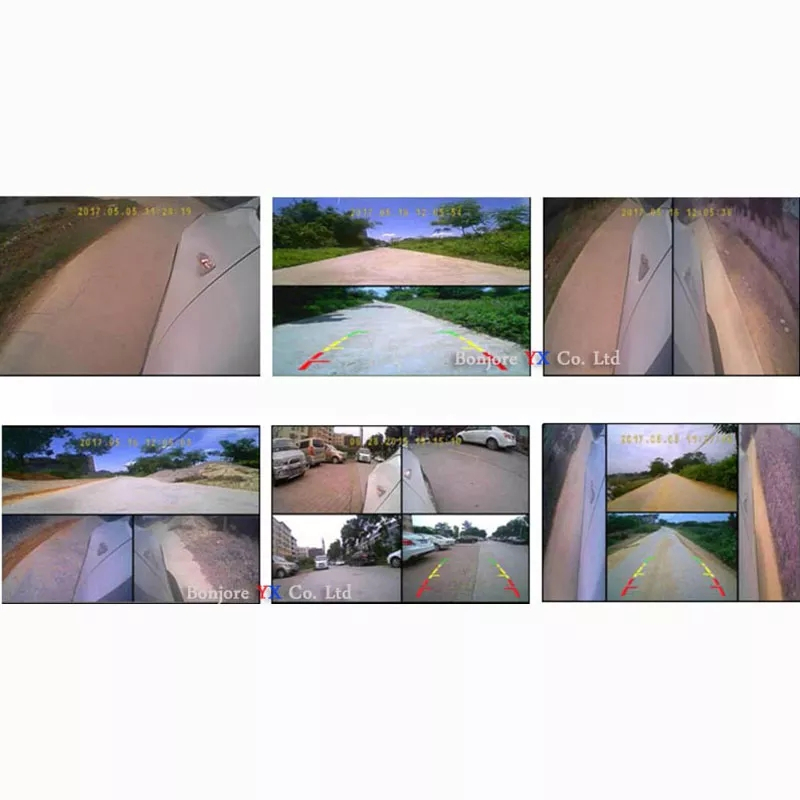

BISA REKAM DAN SPLIT SCREEN 1,2,3,4 KAMERA

Spesification:

Use ways: Recorder / Parking
Power :９－３６Ｖ
Support power to 4 camera with trigger function.
Automatic mode description: (digital on behalf of the corresponding camera channel number, channel number is not displayed)
(1) When the access to four cameras,the car starts after the camera work, automatically display four images at the same time [H-type], 5 seconds after the delay automatically shut down.
(2) When the access to three cameras, the car starts after the camera work, automatically display three images at the same time [product type], 5 seconds after the delay automatically shut down.
(3) When access to two cameras, the car starts after the camera work, automatically display two images at the same time [left and right / up and down segmentation], 5 seconds after the delay automatically shut down.
(4) Front view [Channel 1] Trigger boot, display front view large screen, trigger exit delay 3 seconds after the automatic closure.
(5) Front view or reversing trigger After turning on, the left turn button triggers the display to turn left big screen 【Channel 2】,and the image is restored to 3 seconds after the display.
(6) Front view or reversing trigger After turning on, the right turn light trigger display right turn big screen 【Channel 4】,display 3 seconds to return to the automatic segmentation image screen.
(7) reversing [channel 3] trigger boot, hanging upshift display reversing large screen,out of hanging back and forth delay display automatically closed after 3 seconds,
Manual mode description:
1. Press the upper left corner to boot,display the automatic split image screen,auto off mode failure, press again to turn off,automatic mode takes effect.
2. Press the button to extend the line to boot,short press to switch the screen mode. (Long press> 1 second, short press <1 second)

Garansi 1 bln
