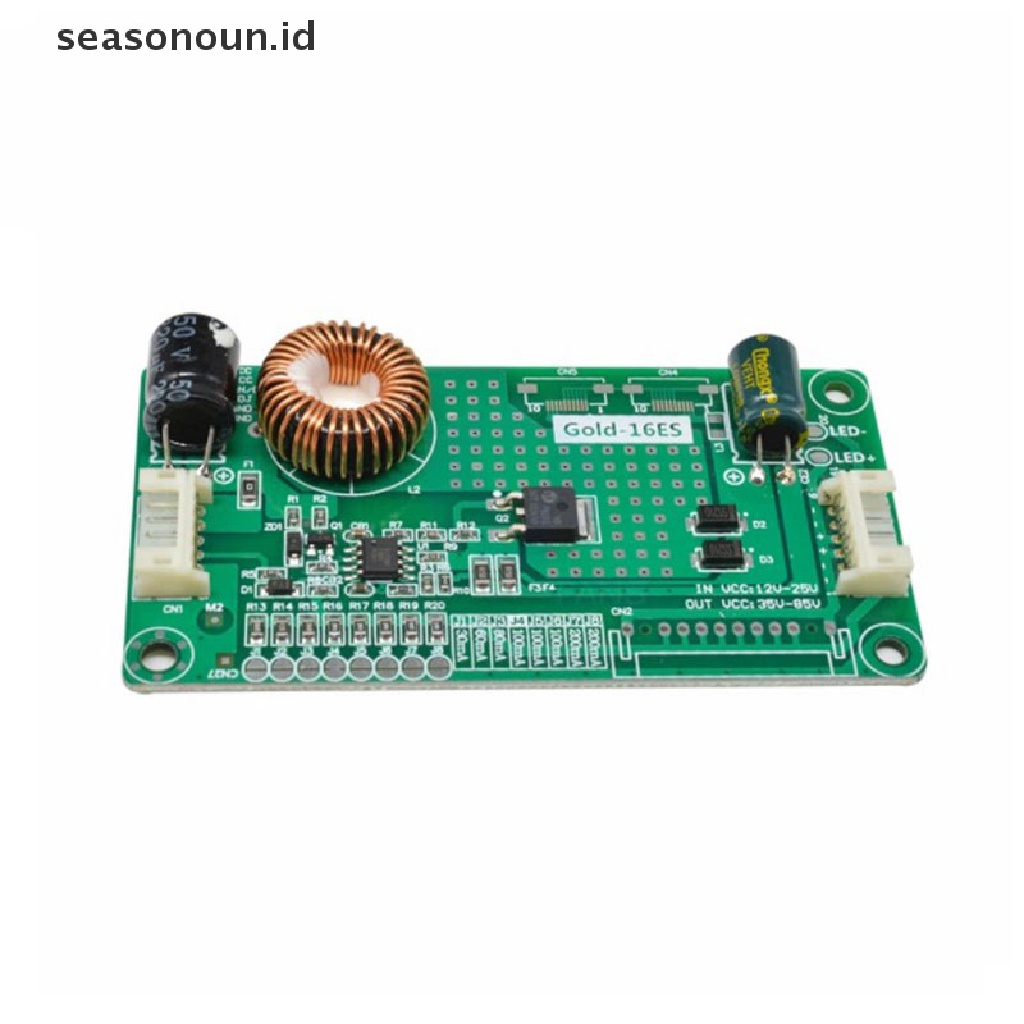

Modul Boost Board Driver Lampu Belakang TV Arus Konstan 10.8-24V Ke 15-80V

Detail Modul Boost Board Driver Lampu Belakang TV Arus Konstan 10.8-24V Ke 15-80V

Features:
1.14-37 inch LED Backlight Lamp Driver Board Constant current board
2.BOOST structure,Conversion efficiency reached more than 92%
3.Low heat of the Device, stability,have a longer service life
4.The PCB is small,Slim design,Current control error within ± 5%
5.This product is constant current board, voltage is automatically adapted


Specification：
100% new and high quality

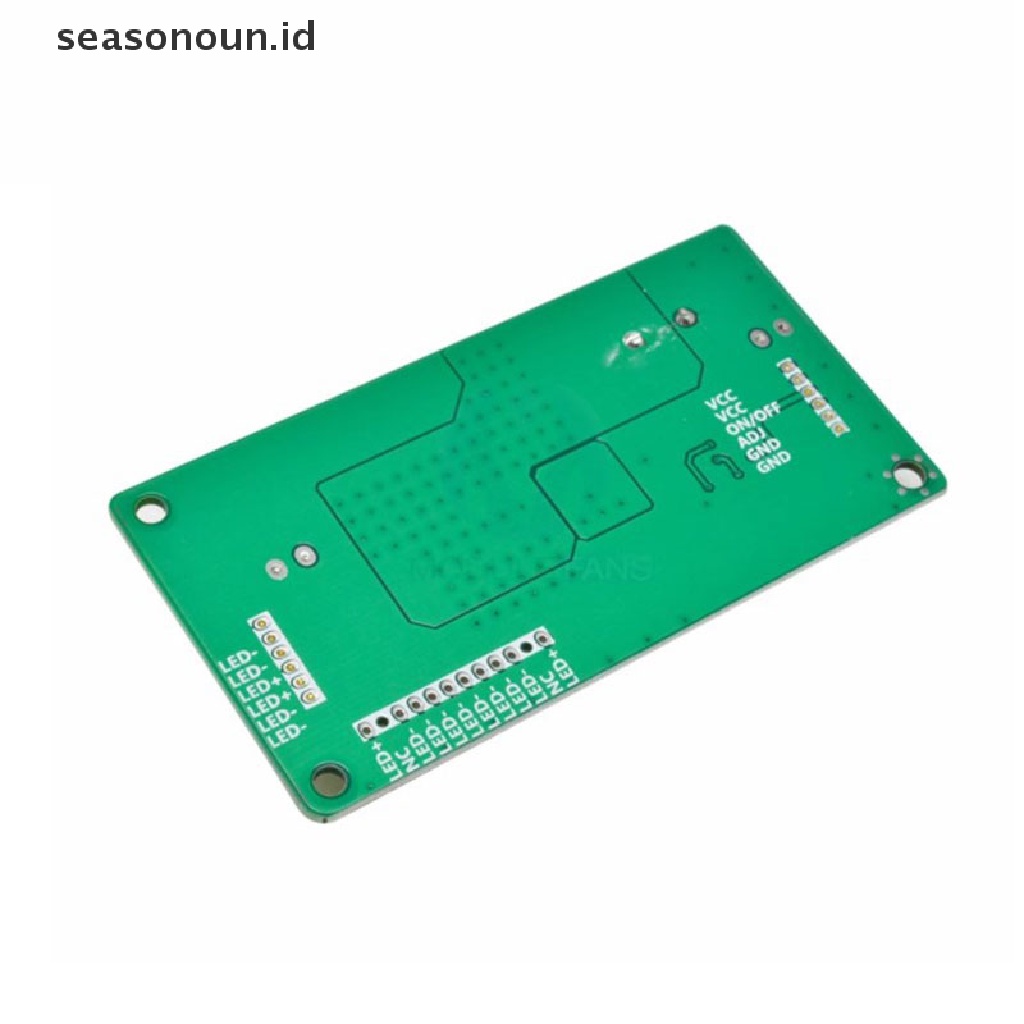

Common Electronic symbolic code of Backlight:
VCC: The positive of voltage supply, Circuit supply voltage (voltage is usually 12V or 24V)
ON/OFF,ON,EN,ON_BL: Switch signal pin
PWM,PDIM,VDAJ,BL-PWM: Brightness adjusting pin
GND: Ground (negative electrode)
LED+: the positive electrode of Light emitting diode (lamp)
LED-: the negative electrode of Light emitting diode (lamp)
The temperature rise is controlled at about 25degrees (Temperature rise = device surface temperature - ambient temperature)


Package include :
1 pcs 14-37 Inch LED Lamp Driver Board Step Up LCD TV Constant Current Backlight


Note:
Please be aware that due to your computer monitor display the color may have some difference between the picture and the real item.
There is 2-3% difference according to manual measurement.
