Modul BMS Battery Charger Protection Pelindung Baterai 18650 2S 3A

Detail Modul BMS Battery Charger Protection Pelindung Baterai 18650 2S 3A

Battery protection board ini digunakan untuk over charge protection, over-discharge protection, short circuit protection,overcurrent protection dan disertai dengan balance pada jenis baterai li-on lithium 18650 ketika melakukan pengisian sehingga batterai anda terlindungi.

1) Dibuat dengan sirkuit yang mampu mendeteksi tegangan dengan presisi tinggi.
2) Dibuat dengan tiga sirkuit deteksi arus (1 over current, 2 over current, load short circuit)
3) Melalui tabung MOS, sehingga dapat mengendalikan pengisian dan pemakaian baterai;
4) Konsumsi arus ketika standby rendah

Specifications:
Suitable range: For nominal voltage 3.6V 3.7V lithium battery(Including 18650,26650, lithium polymer batteries)
Over charge voltage:4.25-4.35v+/-0.05v
Over dishcarge voltage: 2.3-3.0v+/-0.05v
Max continuous current:3A
Max peak current:5A
Working temperature:-40---+50
Storage Temperature:-40-- +80
Small current:less than 3uA
Life cycle :more than 50000hours
Resistance:Less than 45m
Short cut protection :Protectable,charge can repair

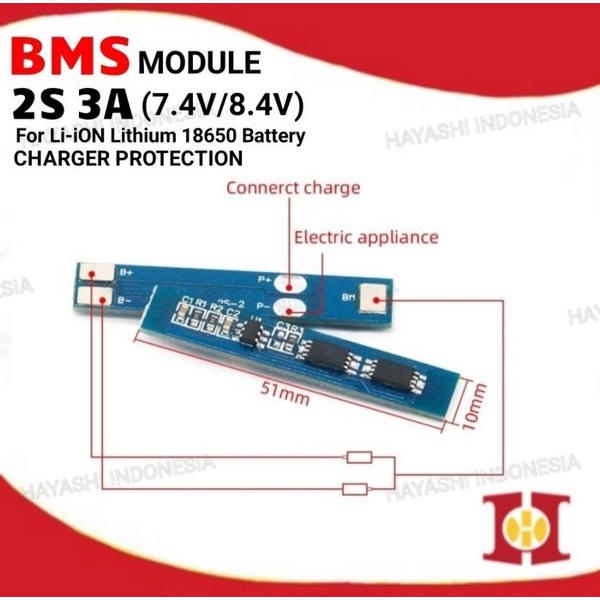

Size: 3.6*0.7cm/1.42 x 0.28 inch

Main function: over charging protection, over discharge protection,short circuit protection,over current protection function.

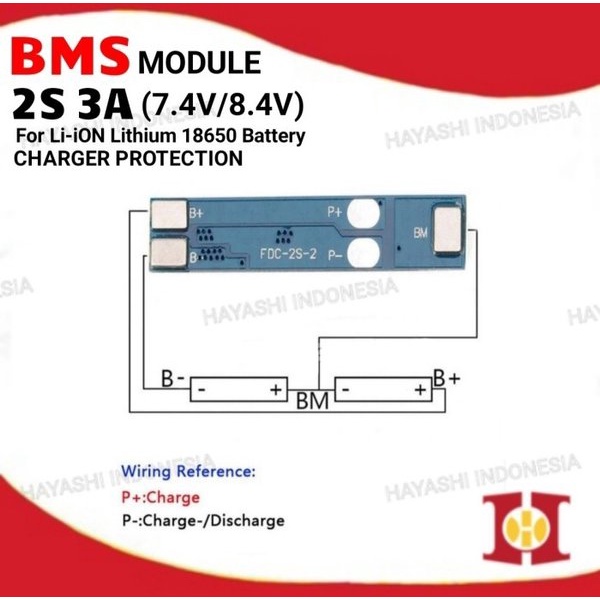

Usage: 2 string 7.4V lithium Lipo Li-ion 18650 battery phosphate rechargeable battery pack.
Stable performance.

Gambar produk
