Modul BMS Battery Charger Protection Pelindung Baterai 18650 2S 8A

Detail Modul BMS Battery Charger Protection Pelindung Baterai 18650 2S 8A

2S 8A 7.4V 8.4V 18650 LI-ION LITHIUM BATTERY CHARGER BMS PCM PROTECTION. Jika punya baterai li ion atau lithium yang sudah habis dan tidak punya chargernya dengan modul ini bisa dipakai kembali, modul ini juga mempunyai banyak protection seperti short, arus yang berlebihan dll..

Spesifikasi:
=================================
- Charging voltage:8.4V-9V
- Overcharge voltage range:4.28V0.05V
- Over discharge voltage range:2.9V0.05V
- Upper limit working current:8A
- Upper limit instantaneous current:16A
- Working temperature:-40-+50
- Storage conditions:-40-+80
- Static electricity:less than 10 ua
- Useful life:more than 30000 hours
- Overcharge protection,over discharge protection,short circuit protection,over current protection
- Size:4.10.8cm/1.570.31inch

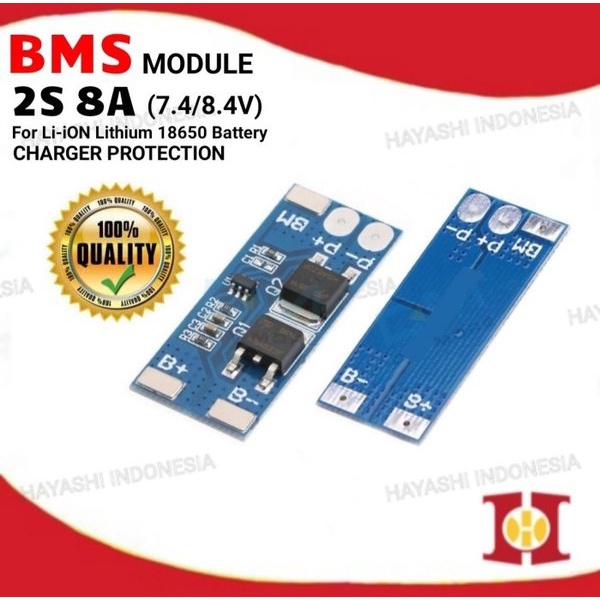

Gambar produk
