Detail modul BMS 16S 48V 30A 3.2V Lipo LiFePo4 baterai proteksi bateray pack

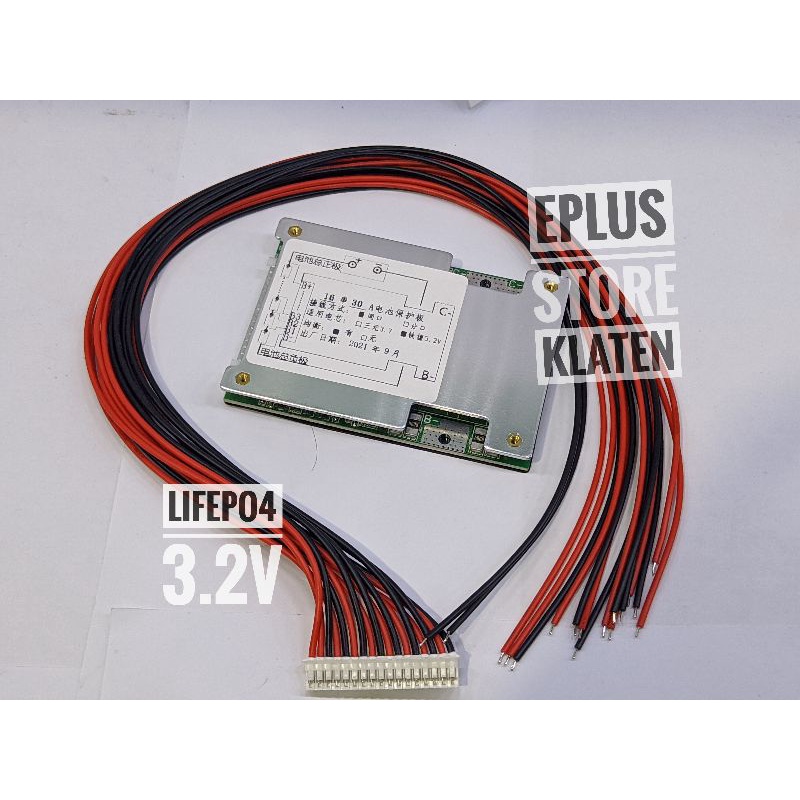

modul BMS16S 48V 30A 3.2V Lipo LiFePo4 baterai proteksi bateray pack

Model Number:Lithium LiFePo4 Battery
Dissipation Power:Other; Operating Temperature:Other; Type:Voltage Regulator
Supply Voltage:48V; Application:For eBike; Package:other
Name: 16 string 48V lithium battery power protection board;
Specifications:
Heat sink size: 120 * 60 * 10mm
Cable length: 400mm
Electrical parameters: As shown in following table
Features:
With a balanced, same port 30A discharge.
Protection board with overcharge protection, over discharge protection, over current protection, short circuit protection, temperature protection.
Attention when connecting:
When we connect BMS with cells or disassemble BMS from battery pack, the following order and regulations must be complied with to avoid damage of components of BMS and problems of not protecting of cells.
In order to achieve the best performance of BMS and to run the longest distance, all the battery must be matched well (Each battery voltage 0.05V, IR15 m,capacity30mAh) to make sure the better consistency of the battery.
Cell must be connected in parallel first, after then connected in series
Order of connection:
Step1: Connect charging /discharging wire , battery pack negative wire
Step2:After confirm the wires are connected OK, plug the connector cable in the BMS
DO NOT plug CONNECTOR CABLE in the BMS before connect wire!!
Attention, ESD protection during work.

Isi Paket:
1x Modul BMS
1x Set Kabel
