Detail Modul Battery Shield V3 18650 power bank

Features:

Battery protection(Over charge or Over discharge)
Micro USB port Input
Type-A USB Output
0.5A current charging
1 switch control USB output
5~8V Input Voltage
3V & 1A Output
5V & 2A Output
LED indicate(Green means full,Red means charging)
3V output port x3
5V output port x3
Be careful of "+" and "-", You should follow the direction of "+""-" on the PCB.
If you put wrong direction, charging chip will be destroyed.
This product does not include 18650 battery

Gambar produk

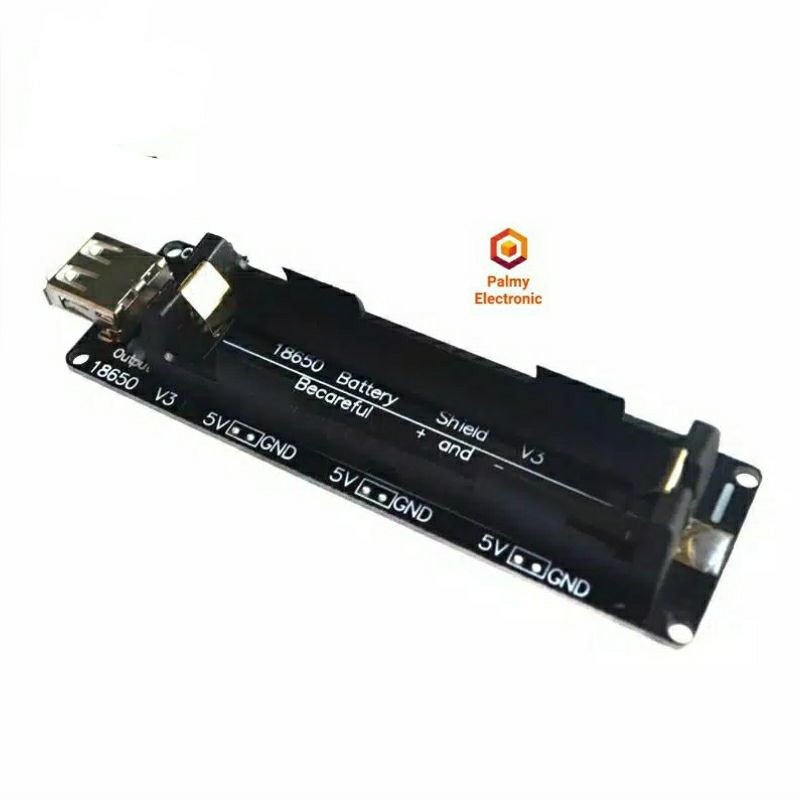

Modul Battery Shield V3 18650 power bank

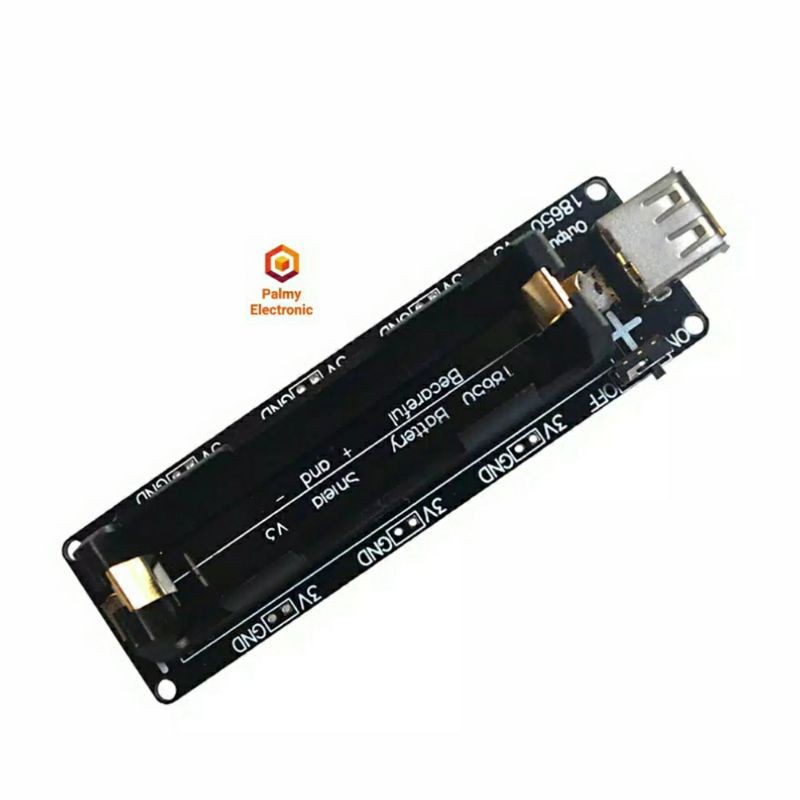

Modul Battery Shield V3 18650 power bank

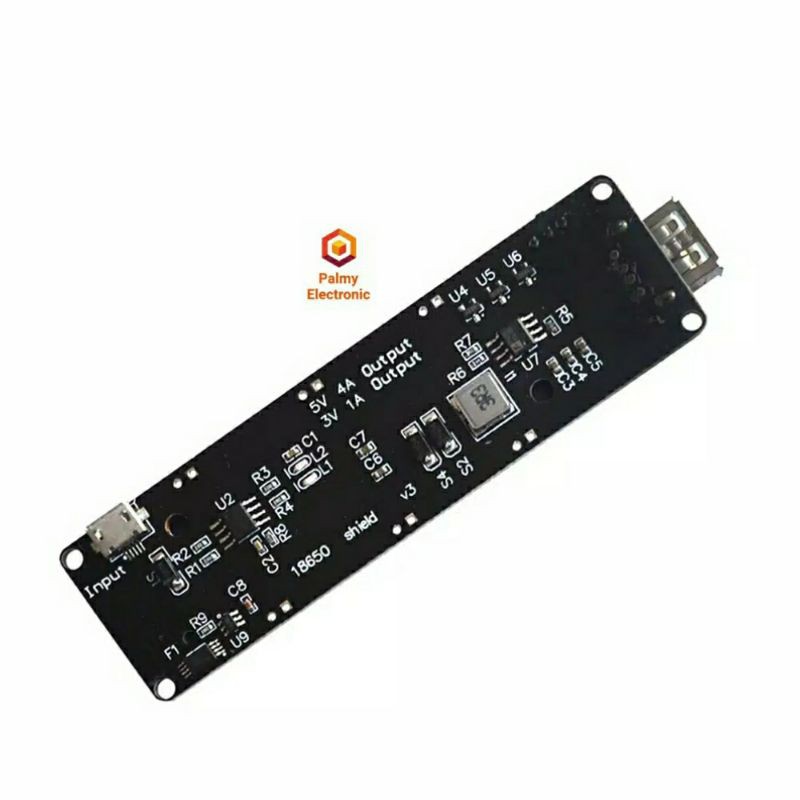

Modul Battery Shield V3 18650 power bank
