Modul Adapter Receiver Audio Bluetooth 5.0 Mp3 Lossless Jl6925A Wireless Stereo Untuk Speaker Mobil / Mp3 3.7-5v

Detail Modul Adapter Receiver Audio Bluetooth 5.0 Mp3 Lossless Jl6925A Wireless Stereo Untuk Speaker Mobil / Mp3 3.7-5v

Video perkenalan produk Modul Adapter Receiver Audio Bluetooth 5.0 Mp3 Lossless Jl6925A Wireless Stereo Untuk Speaker Mobil / Mp3 3.7-5v. Sumber: Shopee.

Feature:
1.JL6925A Bluetooth 5.0 Chip,True Stereo Sound.
2.Support automatically back to even, Support to decode WAV/APE/FLAC/MP3 files losslessly, Support to Output stereo.

Parameters characteristics:
Power Supply:3.7-5V
SNR:90dB
THD+N:-70dB
Crosstalk:-86dB
DNR:91dB
Support Profile:A2DP/AVCTP/AVDTP/AVRCP/HFP
LOS:>15m
Size:30mm*30mm

Interface details:
USB powered:Universal Micro USB 5V power supply
3.7-5V Supply Pad:External 3.7-5V lithium battery power conversion
LED indicator:Bluetooth mode long blue light
3.5mm stereo audio:Standard 3.5mm interface, output stereo sound source
interface:plug in headphones, connect amplifiers and other devices

Instructions:
After the power is turned on, the blue indicator lights up and enters the Bluetooth mode; the English “The bluetooth device is ready to pair” is displayed, indicating that the Bluetooth mode is entered and waiting for pairing; the “JH-BT” searched by the mobile phone Bluetooth is the device name of the decoding board. , Click on the connection, the decoder board prompts "The bluetooth device is connected successfully", indicating that the decoder board and the mobile phone are connected successfully, you can play music. As shown below Picture.

Package Includes:
1*Bluetooth 5.0 Audio Receiver Module

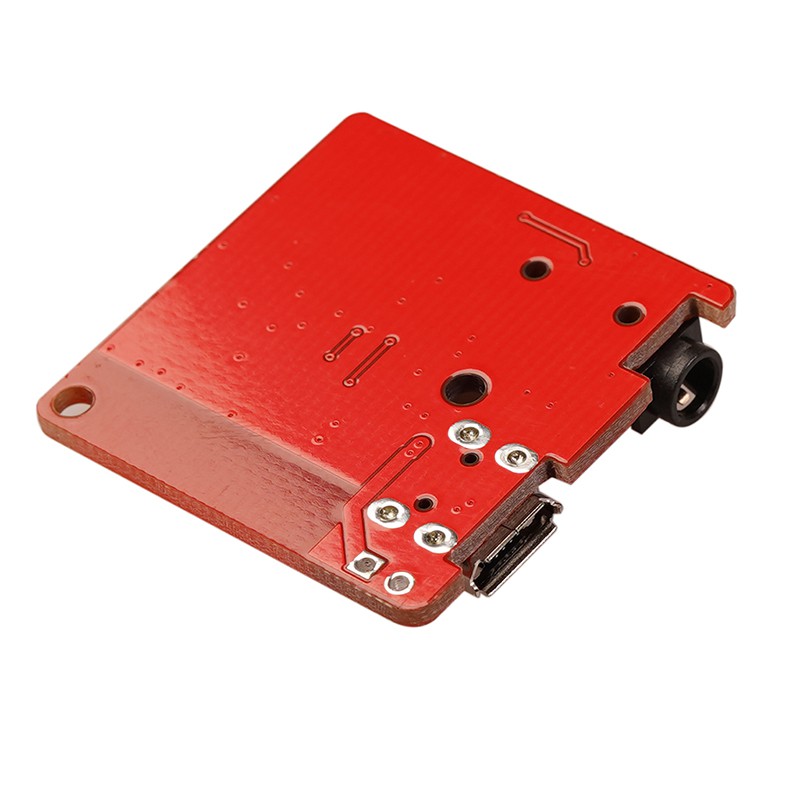

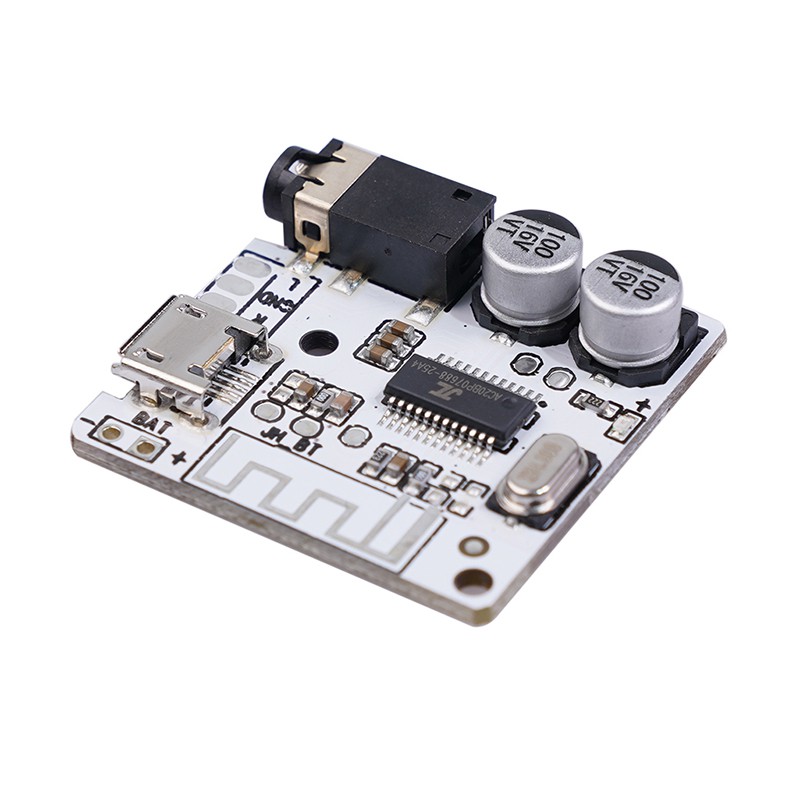

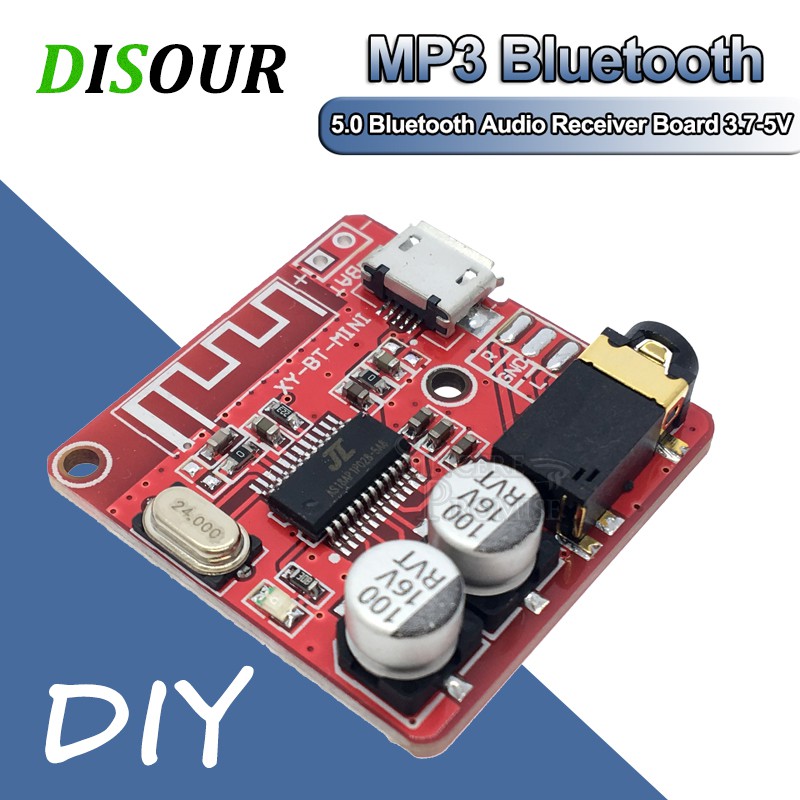

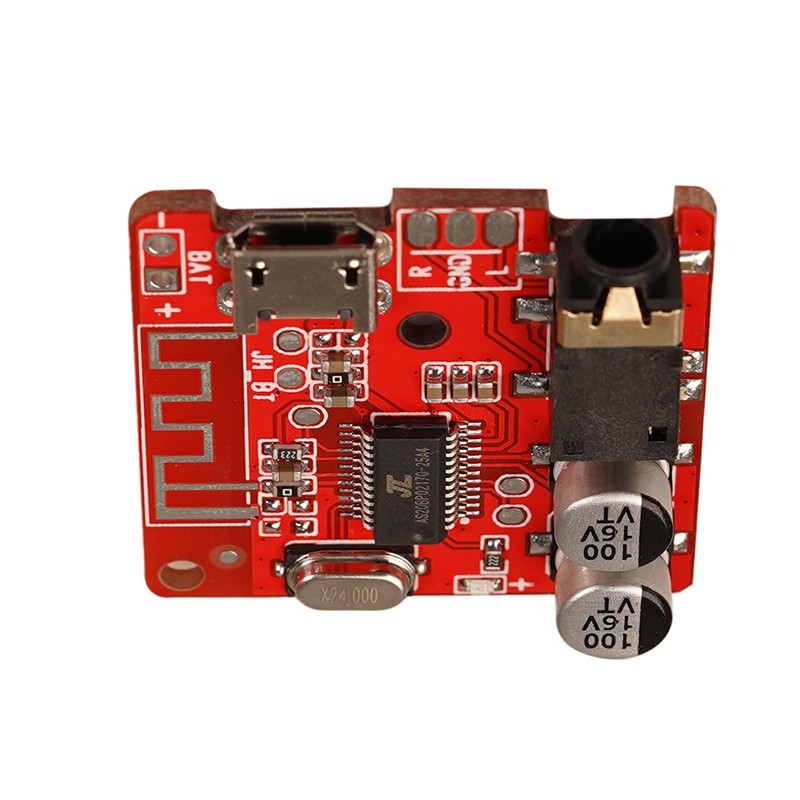

Gambar produk
