Modul 4 Channel IR Infrared Sensor Robot Line Follower Tracer

Detail Modul 4 Channel IR Infrared Sensor Robot Line Follower Tracer

Modul 4 Channel IR Infrared Sensor Robot Line Follower Tracer
4 way infrared Tracking line Sensor Module for Aduino Robot Smart Car .

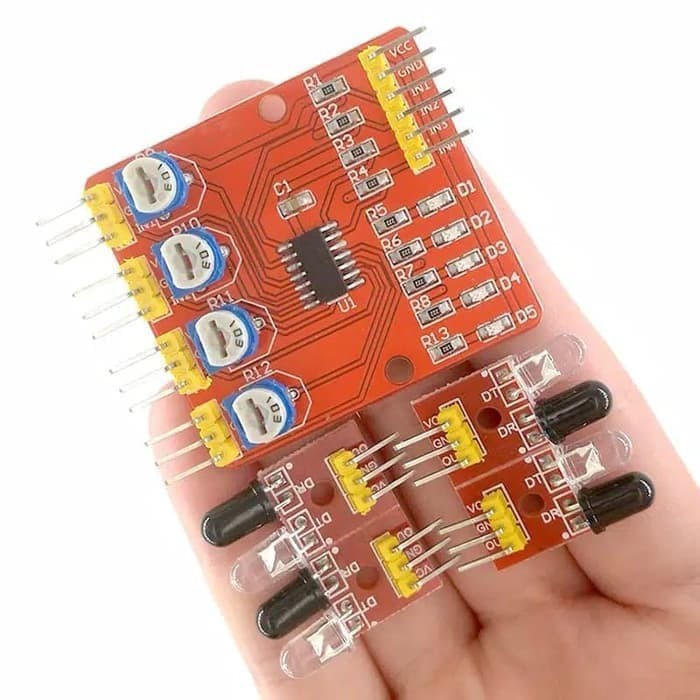

Sudah di lengkapi 4 Pcs Trim Potensio, Buat mengatur keakuratan masing2 sensor infrarednya
Specifications:
Working voltage: DC 3.3V-5V
Working current: try to choose more than 1A power supply
Working temperature: - 10oC - +50oC
Mounting aperture: M3 screws
Detection range: 1mm to 60 CM adjustable, the closer the performance more stable, white reflects the farthest distance.
Size: in the control panel of L 42mm * W 38mm * H 12mm
Small forward L 25mm * W 12mm * H 12mm
Output interface: 6 wire interface ( 4 signal output ends, + VCC, GND)
The output signal: TTL level (can be directly connected to I/0 microcontroller, infrared light reflected back to the sensor induction, the red indicator light, output low level; no infrared light, the indicator light does not shine, the output high.)

Harga Tertera untuk 1 Paket:

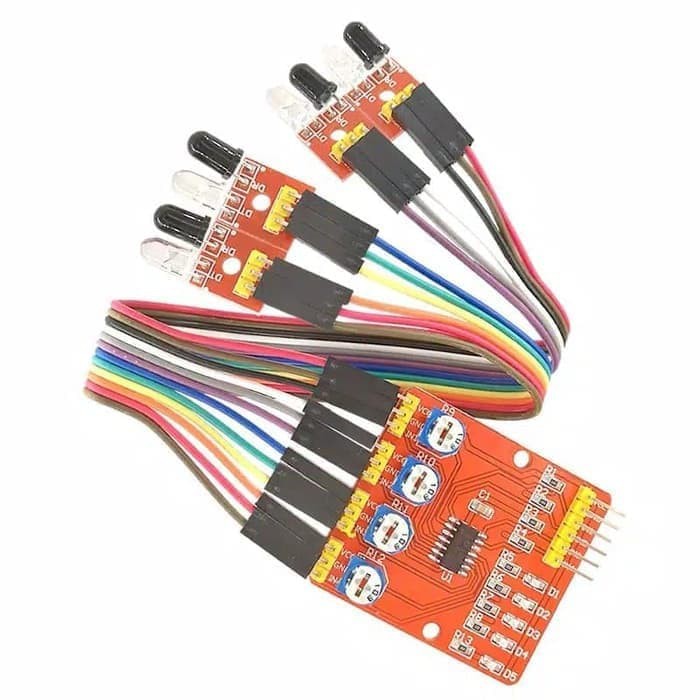

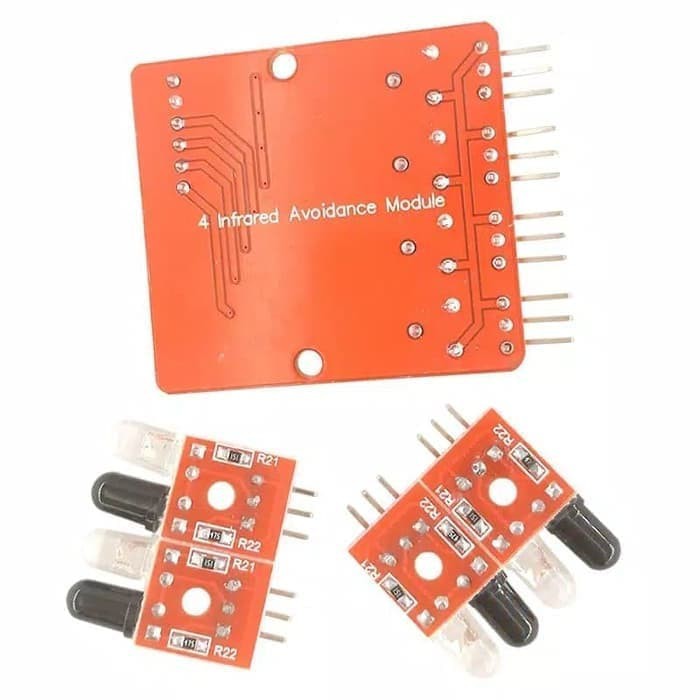

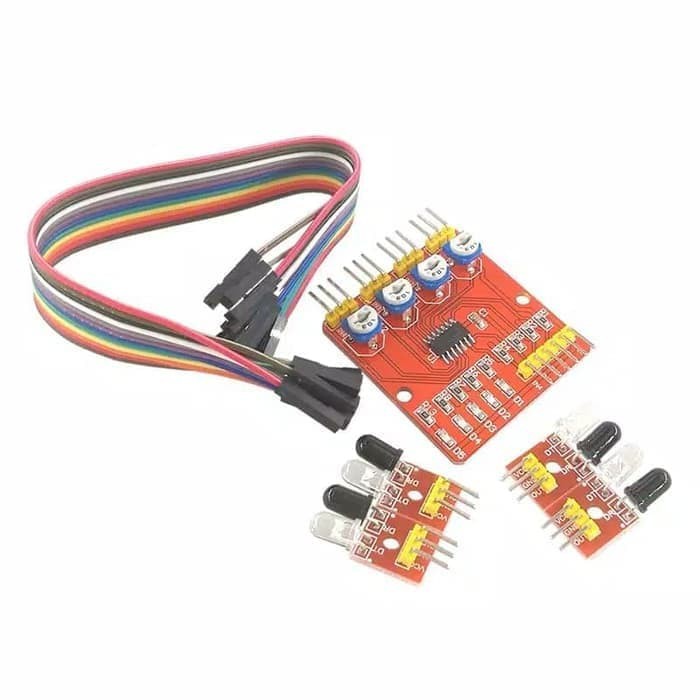

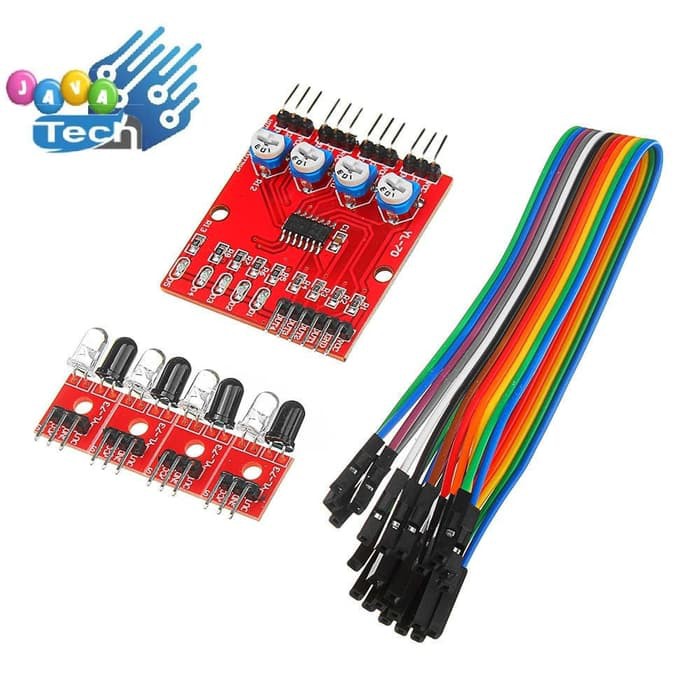

1 Pcs. Board Master Control Tracking line Sensor
4 Pcs. kit Sensor infrared Tx,Rx
kabel jumper Female to Female 12Pin

Gambar produk
