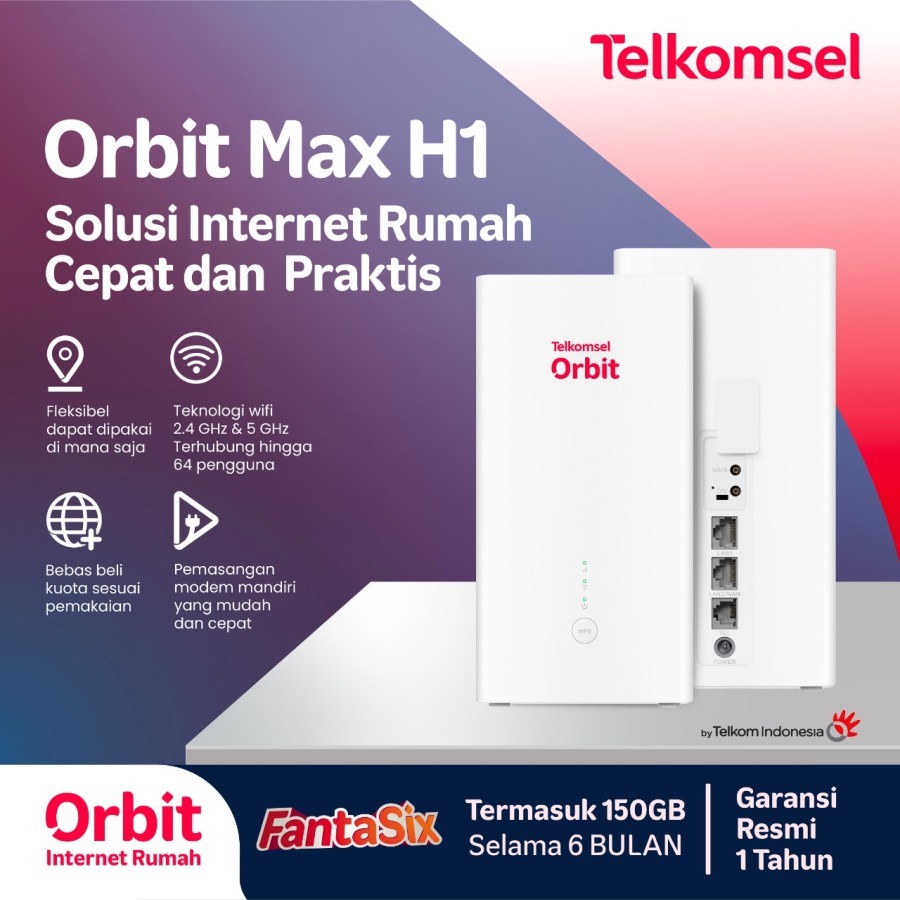

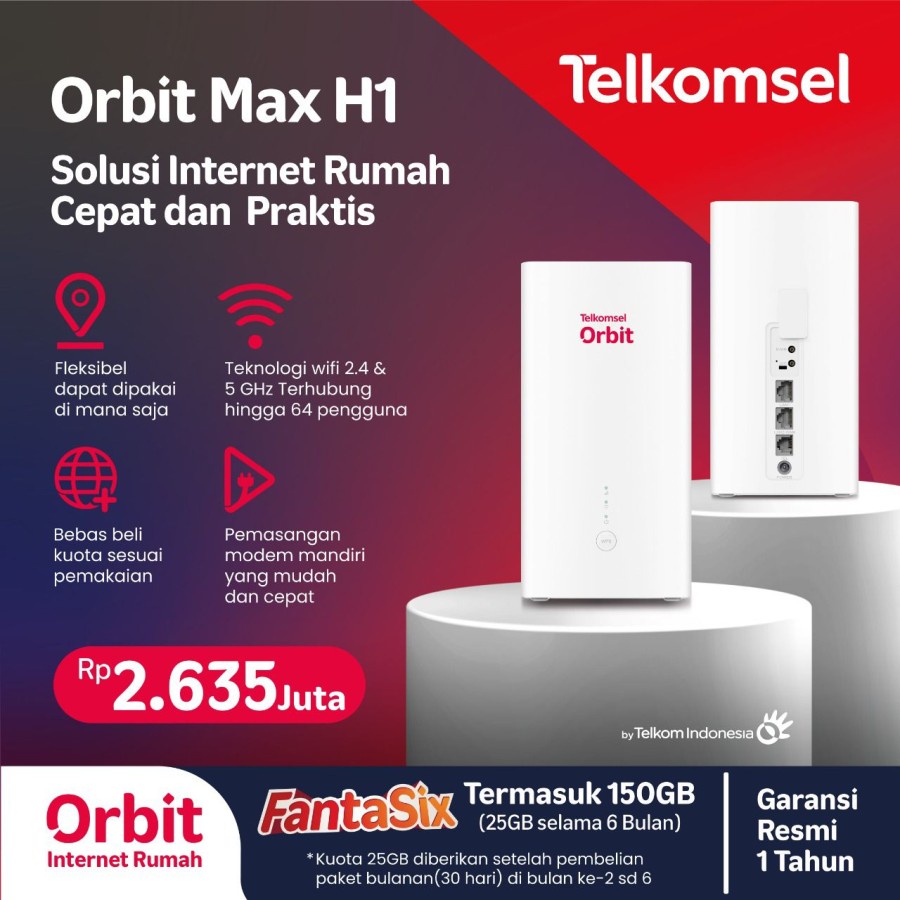

Modem Telkomsel Orbit Max H1 Huawei B628 Router WIFI 4G LTE CAT 12

Detail Modem Telkomsel Orbit Max H1 Huawei B628 Router WIFI 4G LTE CAT 12

Modem Orbit MAX H1 Huawei B628 Router 4G LTE CAT 12 dengan speed hingga 600Mbps. Dapat menampung pengguna via WIFI hingga 64 perangkat.

Bonus Kabel USB to Powerbank
Bonus Paket DataTelkomsel Orbit 150GB, dengan pembagian (25GB/bln selama 6 bulan). Khusus bulan ke 2 dst, bonus akan keluar dengan mengisi paket data orbit apapun.

Modem ini terdapat port antena external yang akan sangat membantu memperkuat penangkapan sinyal kartu, dengan bantuan antena external yang dapat dibeli secara terpisah.

Isi Dalam Kemasan:
1x HUAWEI B628 H1
1x Power Adapter
1x Quick Start
1x Ethernet Cable
1x Phone Cable
1x Warranty Card
1x Perdana Orbit Telkomsel 150GB
(Saat ini Modem Orbit H1 hanya compatible dengan SIM Card Telkomsel)

Spesifikasi:
External port
Width: 95 mm
Height: 95 mm
Depth: 190 mm
Weight: About 550 g
Colour: White

B628-350 supports 3GPP Release 11 with LTE CAT 12
Data service up to DL 600 Mbps(256QAM) and UL 150 Mbps(64QAM)
Voice service: CS/VoIP (Optional) / VoLTE (Optional)
Wi-Fi: 802.11 b/g/n/a/ac. 802.11b/g/n 2.4GHz Wi-Fi 2x2 MIMO up to 400Mbps,
802.11a/n/ac 5GHz Wi-Fi 2x2 MIMO up to 867Mbps. Maximum Users: 64
1 GE port for LAN/WAN, 1 GE ports for LAN
Multi APN function (Optional) for Data, Voice (VoIP), TR-069 services
Routing mode: NAT enable (Default) / IP pass-through (Optional)

Technical standard
WAN 3GPP Release 11
LAN IEEE 802.3/802.3u
Wi-Fi IEEE 802.11a/b/g/n/ac

Working band/frequency
LTE B1/B3/B5/B7/B8/B20/B28/B32/B38/B40(2300-2390 MHz)/B41
UMTS B1/B5/B8
Wi-Fi 2.4 GHz: 2421-2468 MHz, 5 GHz: 5170-5330 MHz&5490-5710 MHz

Power Supply
Power: Less than 24 W
AC / DC Power Supply
AC: 100V - 240V, 50Hz / 60Hz; DC: 12V / 2AInterface
Data service up to DL 600 Mbps(256QAM) and UL 150 Mbps(64QAM)
Voice service: CS/VoIP (Optional) / VoLTE (Optional)

Working band/frequency
LTE B1/B3/B5/B7/B8/B20/B28/B32/B38/B40(2300-2390MHz)/B41
UMTS B1/B5/B8
Wi-Fi 2.4 GHz: 2421-2468 MHz, 5 GHz: 51
