MODEM ROUTER HUAWEI B628 TELKOMSEL ORBIT MAX H1 WIFI 4G LTE 150GB

Detail MODEM ROUTER HUAWEI B628 TELKOMSEL ORBIT MAX H1 WIFI 4G LTE 150GB

B628 ORBIT MAX , Bonus Kartu Perdana Telkomsel 150GB (25GB x 6bln)

Free Kuota 150GB ( 6 bln x 25 Gb )

Garansi 3 Tahun (1 Tahun Replacement, 2 Tahun Service)
Untuk Garansi Bisa di Claim ke Service Center Unicom

*The B628-350 supports 3GPP Release 11 with LTE CAT 12
*Data service up to DL 600 Mbps(256QAM) and UL 150 Mbps(64QAM)
*Voice service: CS/VoIP (Optional) / VoLTE (Optional)
*Wi-Fi: 802.11 b/g/n/a/ac. 802.11b/g/n 2.4GHz
*Wi-Fi 2x2 MIMO up to 400Mbps,802.11a/n/ac 5GHz Wi-Fi 2x2 MIMO up to 867Mbps.
*Maximum Users: 64
*1 GE port for LAN/WAN, 1 GE ports for LAN
*Multi APN function (Optional) for Data, Voice (VoIP), TR-069 services
*Routing mode: NAT enable (Default) / IP pass-through (Optional)

MODEM ORBIT MEMILIKI TOLERANSI KETINGGIAN 10 LANTAI

Technical standard
WAN 3GPP Release 11
LAN IEEE 802.3/802.3u
Wi-Fi IEEE 802.11a/b/g/n/ac

Working band/frequency
LTE B1/B3/B5/B7/B8/B20/B28/B32/B38/B40(2300-2390 MHz)/B41
UMTS B1/B5/B8
Wi-Fi 2.4 GHz: 2421-2468 MHz, 5 GHz: 5170-5330 MHz&5490-5710 MHz

Power Supply
Power: Less than 24 W
AC / DC Power Supply
AC: 100V - 240V, 50Hz / 60Hz; DC: 12V / 2AInterface
Data service up to DL 600 Mbps(256QAM) and UL 150 Mbps(64QAM)
Voice service: CS/VoIP (Optional) / VoLTE (Optional)

Working band/frequency
LTE B1/B3/B5/B7/B8/B20/B28/B32/B38/B40(2300-2390MHz)/B41
UMTS B1/B5/B8
Wi-Fi 2.4 GHz: 2421-2468 MHz, 5 GHz: 5170-5330 MHz&5490-5710 MHz

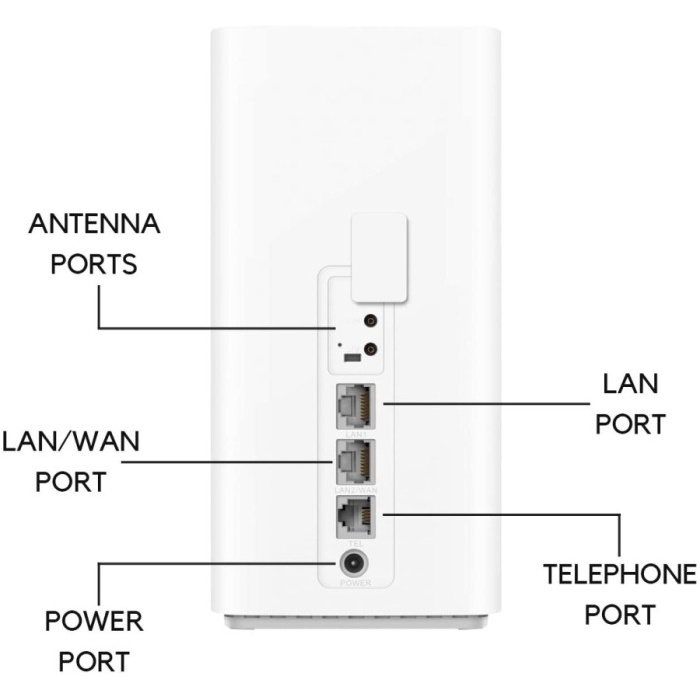

External port
One power adapter port
One LAN/WAN port (RJ45), one LAN ports (RJ45)
One phone port (RJ11)
Two external LTE antenna ports (TS-9)
One SIM card slot (nano-SIM)

Spesifikasi:
External port
Width: 95 mm
Height: 95 mm
Depth: 190 mm
Weight: About 550 g
Colour: White

Isi Dalam Kemasan:
1x Orbit Max H1 - B628-350
1x Sim Card Telkomsel
1x Welcome Leaflet
1x Power Adapter
1x Buku Manual
1x Kartu Garansi

Gambar produk
