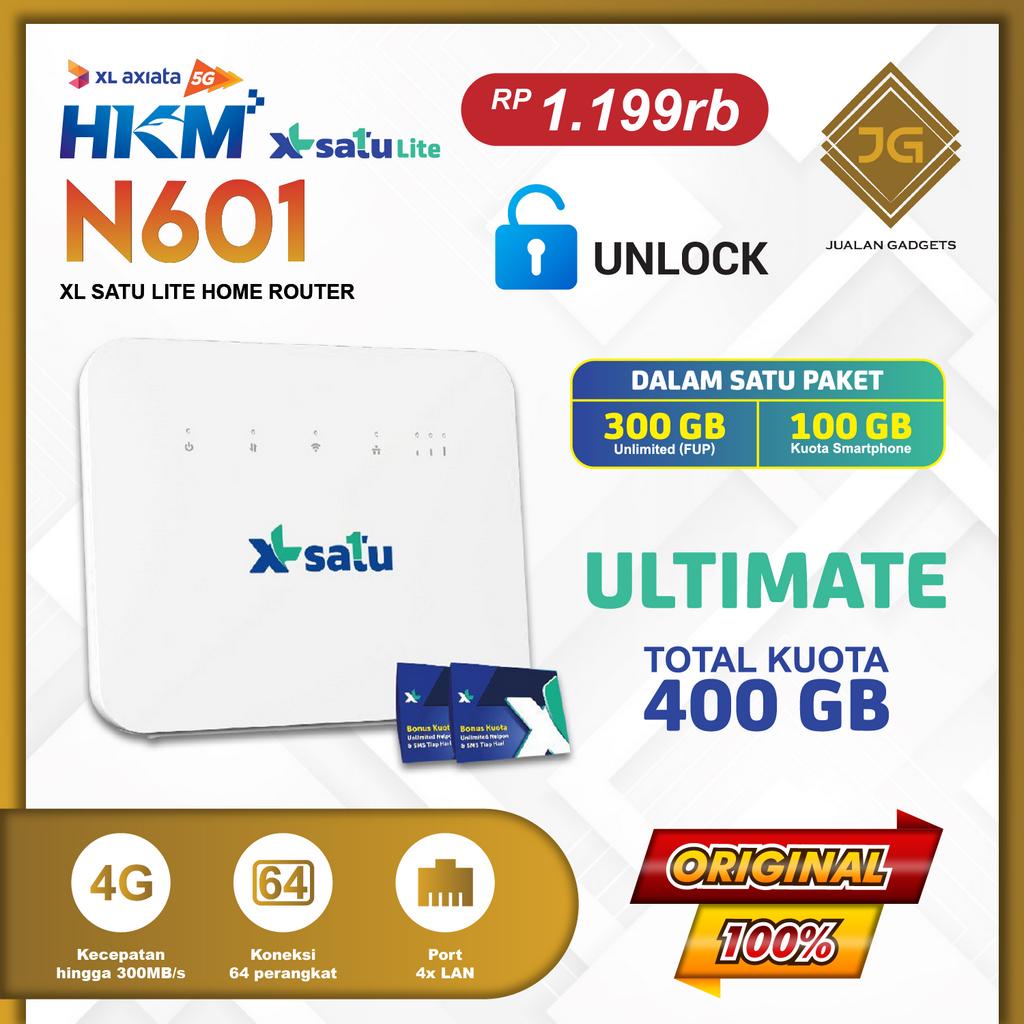

Modem HKM N601 Router Wifi XL Satu Lite 4G LTE - Unlock All Operator

Detail Modem HKM N601 Router Wifi XL Satu Lite 4G LTE - Unlock All Operator

PRODUK INI BERGARANSI RESMI 12 BULAN
**untuk klaim garansi sudah bisa langsung ke service center unicom lokasi terdekat

Garansi Resmi HKM 12 Bulan

Unlock All Operator
Free Kuota 400GB | 300GB Unlimited (FUP) 100GB Kuota Smartphone

User Interface
SIM • 3FF SIM Slot x 1 Push-push type
LED
• Signal strength : 3 LEDs
• Power: Blue
• WIFI: 2.4G/5G Blue
• Net: R+B
• LAN : Blue
LAN • RJ45*1000M*4（1 WAN/LAN+3LAN)
Button • Restore; WPS; Power;On/Off

Electrical & Mechanical
Dimensions • 229*161.9*59 mm
Weight • TBD
Battery • NA
Temperature
• Operating Temperature: 00C ~ 450C
• Storage Temperature: -200C ~ +650C
Humidity • 5% ~ 95%RH

Wi-Fi
Standard • 802.11 b/g/n/ac;
Frequency Range • 2412~2484 MHz (CH 1-13) & 5150~5825MHz
Security • WEP, WPA2-PSK , WPA-WPA2 Mixed

Physical Layer
Standard • 3GPP Release 10
• UE Category 6
Data Rate • FDD-LTE: DL: 300 Mbps / UL: 50 Mbps
• TD-LTE: DL: 224 Mbps / UL: 10 Mbps
Carrier Aggregation • Intra-band CA: B1+B1,B3+B3,B5+B5,B8+B8
• Inter-band CA: B1+3,B1+5,B1+8,B3+5,B3+8
Output Power • 23±2 dBm
Modulation
• DL: QPSK / 16QAM / 64QAM
• UL: QPSK / 16QAM
Rx Sensitivity
• TDD-LTE Typical:-94 dBm(20MHZ)
• FDD-LTE Typical:-93 dBm(20MHZ)
Antennas • Internal antenna & External antenna compatible

Certification & Package Contents
CE • Comply
Device • x 1
Power adaptor • x 1
LAN cable • x 1

Gambar produk
