Mobo H61 Intel LGA 1155 Gigabyte Onboard

Detail Mobo H61 Intel LGA 1155 Gigabyte Onboard

Ready Stok Gan :

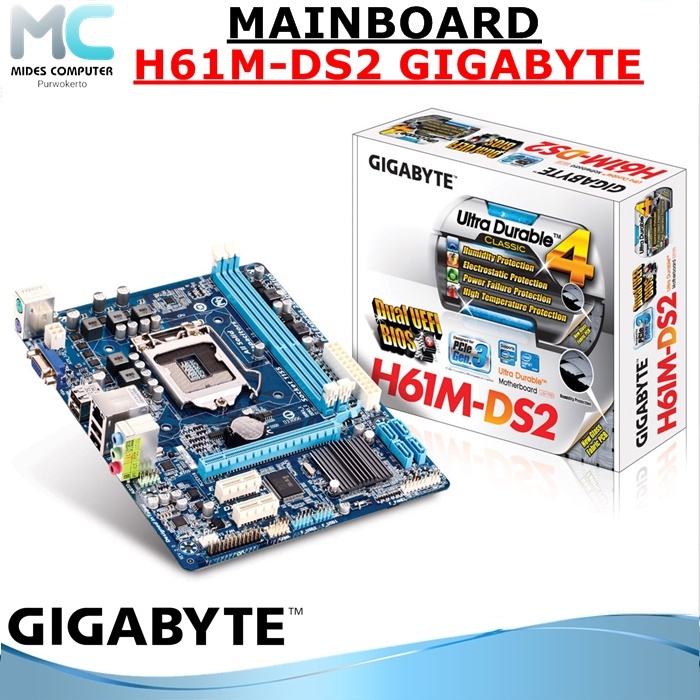

Mainboard H61M-DS2 Gigabyte (NEW)

Spesifikasi :

- Prosesor
Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
L3 cache varies with CPU

- Chipset
Intel® H61 Express Chipset

- Memori
2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
Support for DDR3 2200(OC)/1333/1066/800 MHz memory modules
Support for non-ECC memory modules

- Audio
Realtek ALC887 audio codec

- LAN
1 x Realtek 8111F chip (10/100/1000 Mbit)

- Slot Tambahan
1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
* PCIE Gen.3 is dependent on CPU and expansion card compat

- Antarmuka Penyimpanan
4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
USB

- Konektor I/O Internal
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
2 x USB 2.0/1.1 headers
1 x parallel port header
1 x serial port header
1 x Clear CMOS jumper

- Konektor Panel Belakang
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In/Line Out/Microphone)

- BIOS
2 x 32 Mbit flash
Use of licensed AMI EFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a

- Form Factor
Micro ATX Form Factor; 22.6cm x 17.4cm

*Barang pesanan dipacking aman menggunakan bubble wrap
*GARANSI 2 MINGGU SETELAH BARANG DITERIMA
*Sebelum order harap tanya dulu ketersediaan stock
*NB : FEEDBACK NEGATIF GARANSI HANGUS

*SILAHKAN DIORDER :)
*happy shopping

Cara klaim garansi :
- Ajukan Komplain wajib sertakan VIDEO UNBOXING DAN VIDEO CHEKING
- Pastikan barang masih tersegel pembelian dan masi ada masa garansi
- SERTAKAN INVOICE TRANSAKSI / PEMBELIAN BARANG
- klaim garansi bisa diklaim jika " Barang yang di pesan tdak sesuai dengan barang yang dibeli / barang Mengalami trouble
- Klaim garansi HANYA PENUKARAN BARANG SAJA
- Ongkos kirim akan dibebankan kepembeli untuk retur tukar barang
- harap membaca sebelum membeli kesalahan pembelian product diluar procedur garansi.
