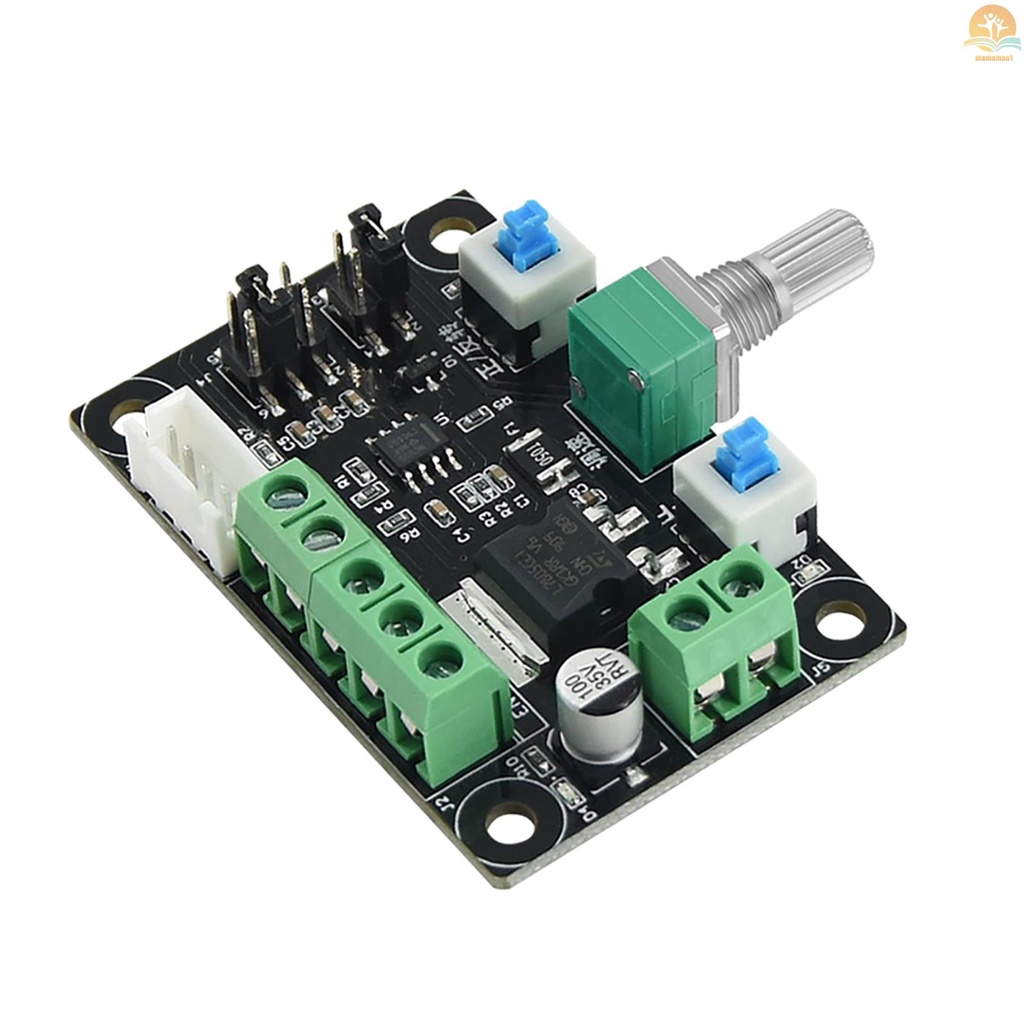

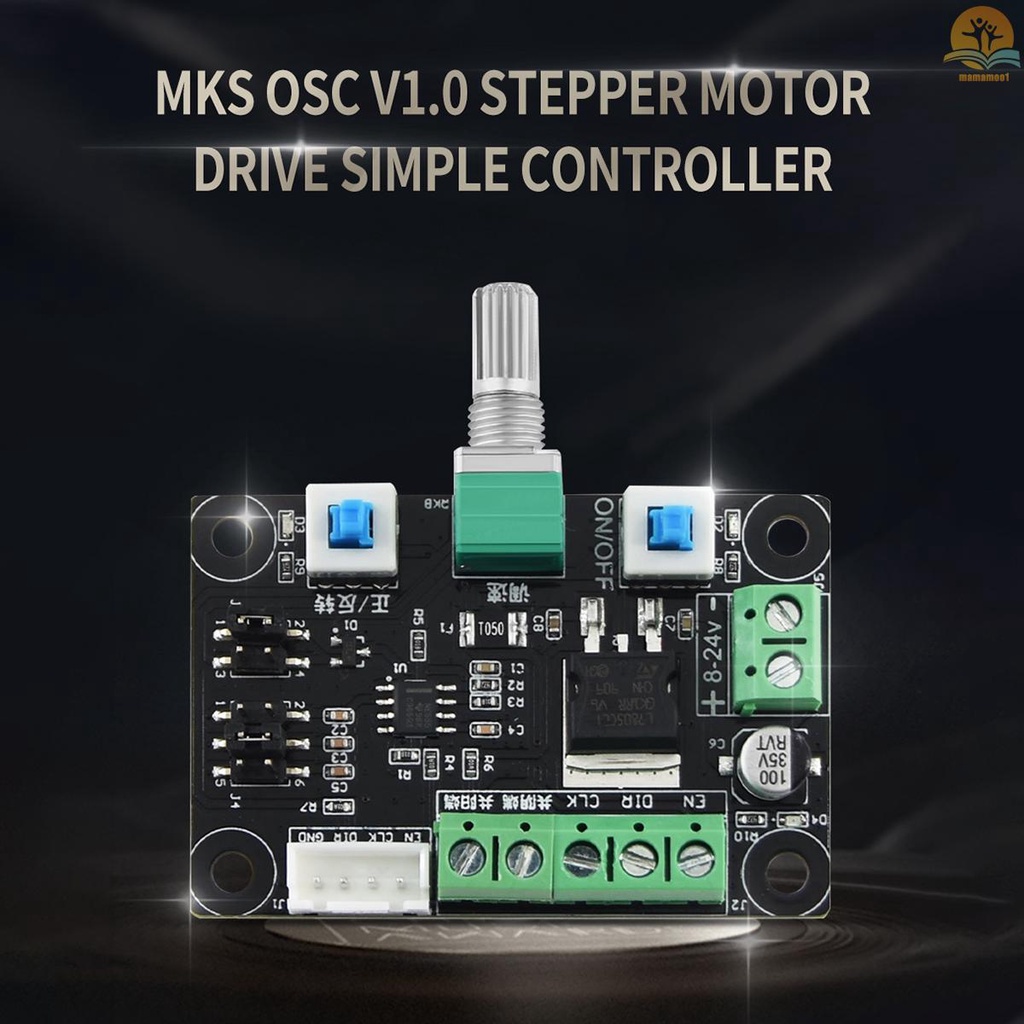

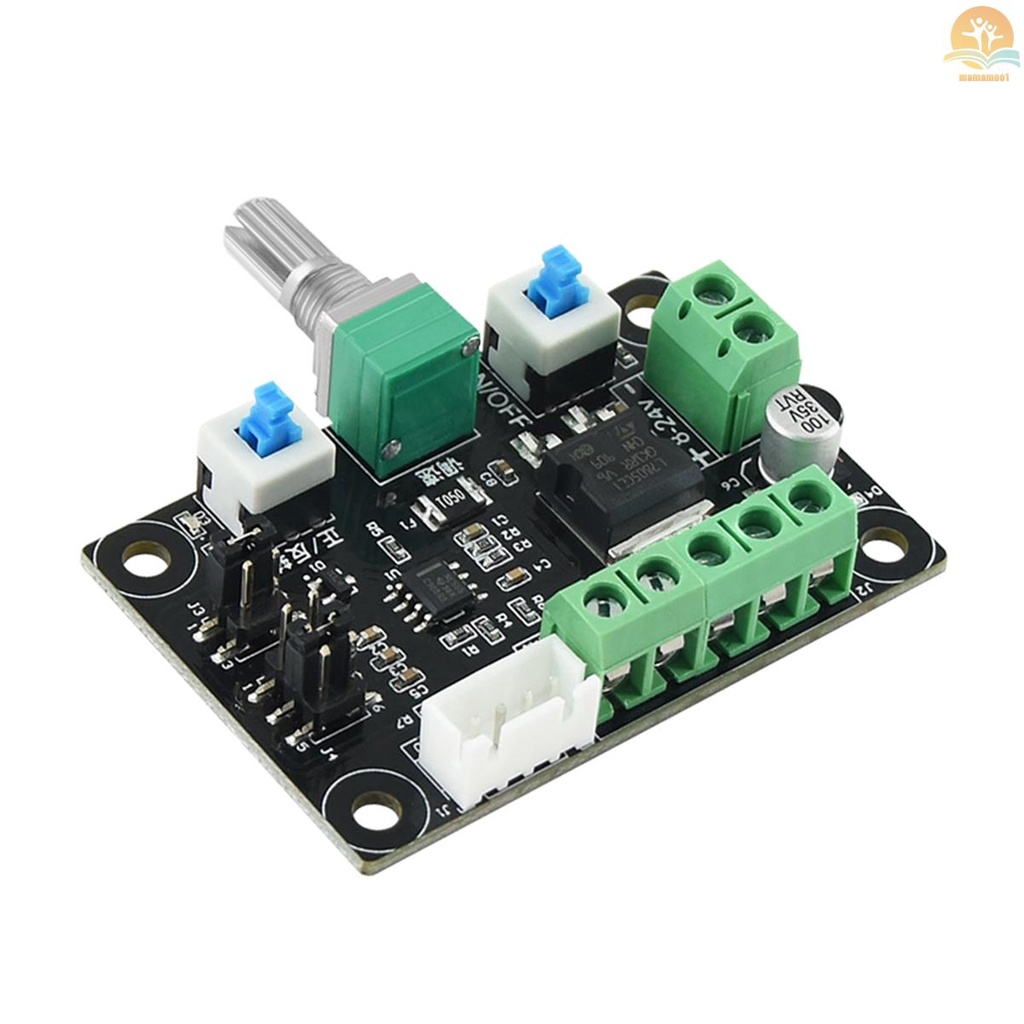

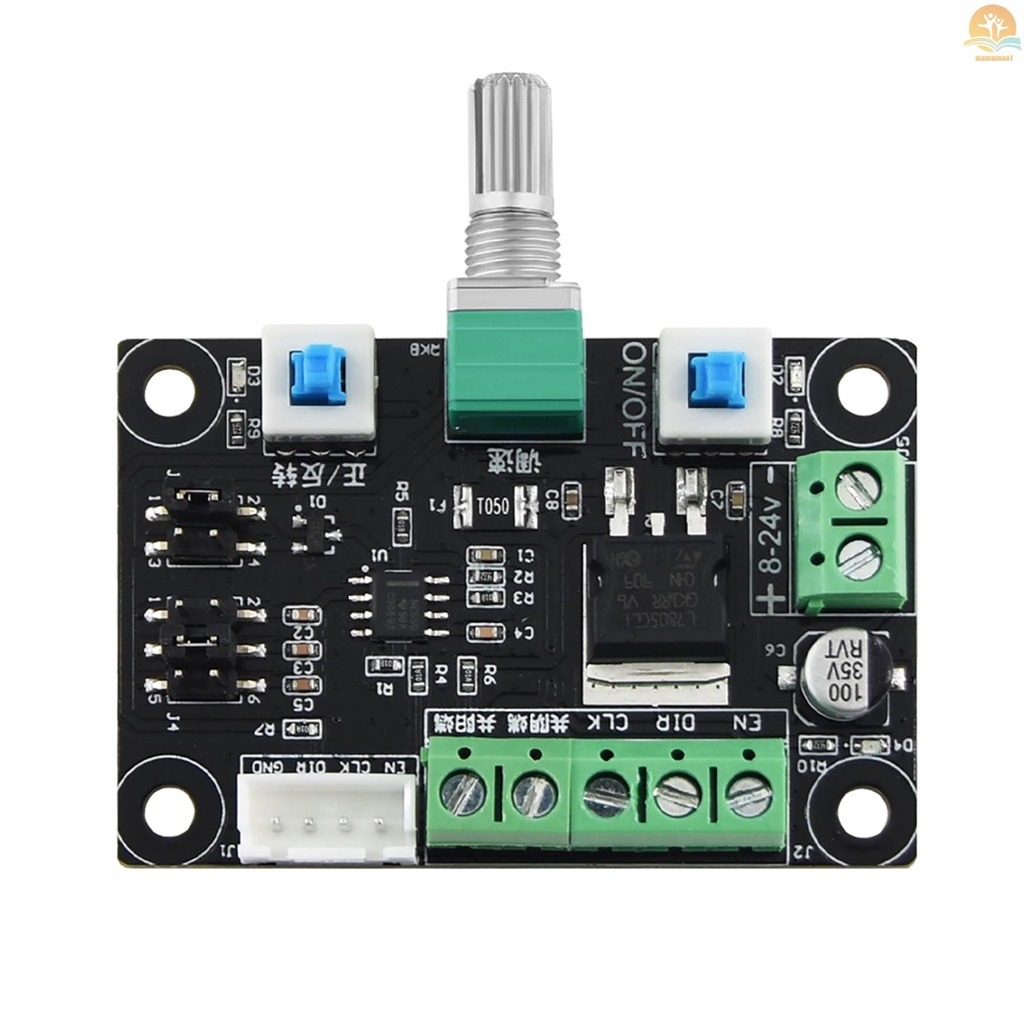

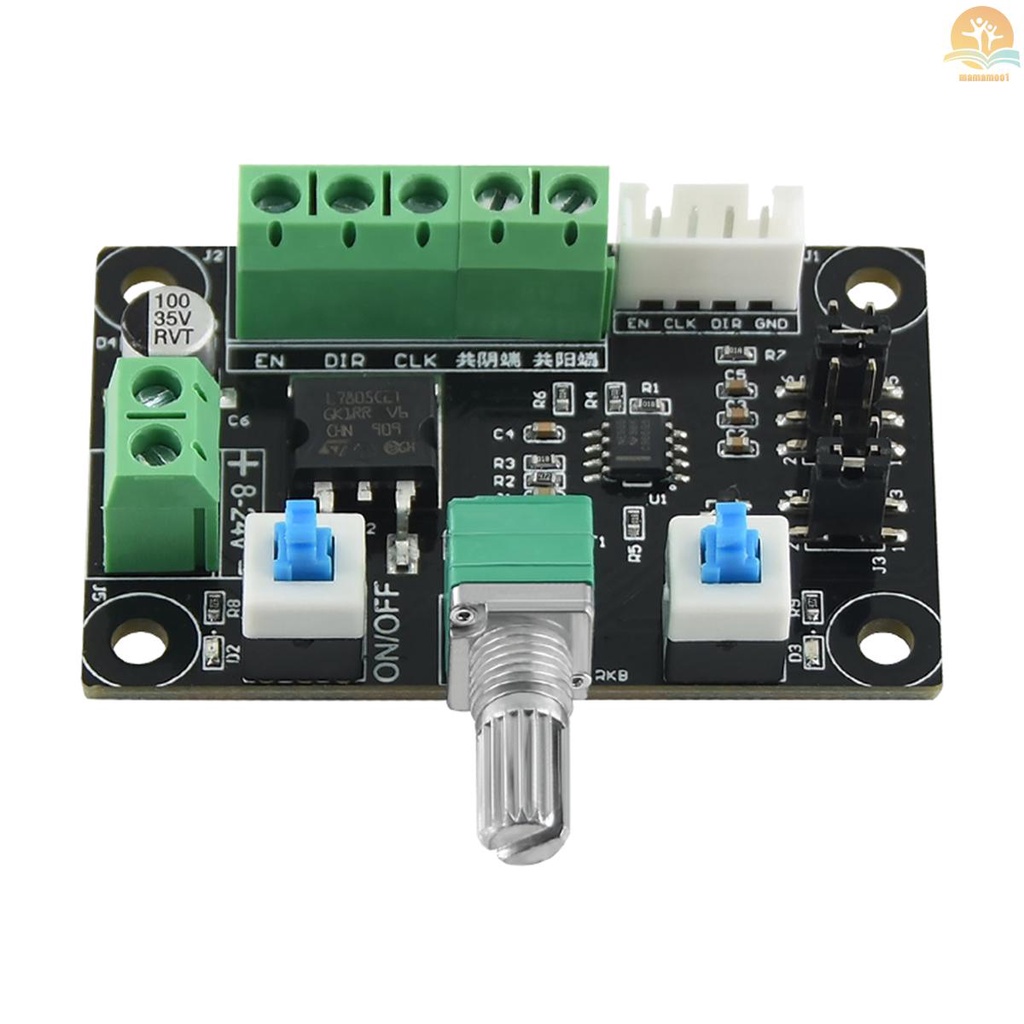

MKS OSC V1.0 Stepper Motor Drive Simple Controller Pulse PWM Signal Generator Module Speed Control 8-24V

Detail MKS OSC V1.0 Stepper Motor Drive Simple Controller Pulse PWM Signal Generator Module Speed Control 8-24V

Features:
This module is a pulse generation module and supplies a stepper driver as a signal. To control the stepper motor, it must be equipped with a driver.
This simple controller + stepper driver + stepper motor + DC power supply can form a simple control platform.(Only the controller is included.)

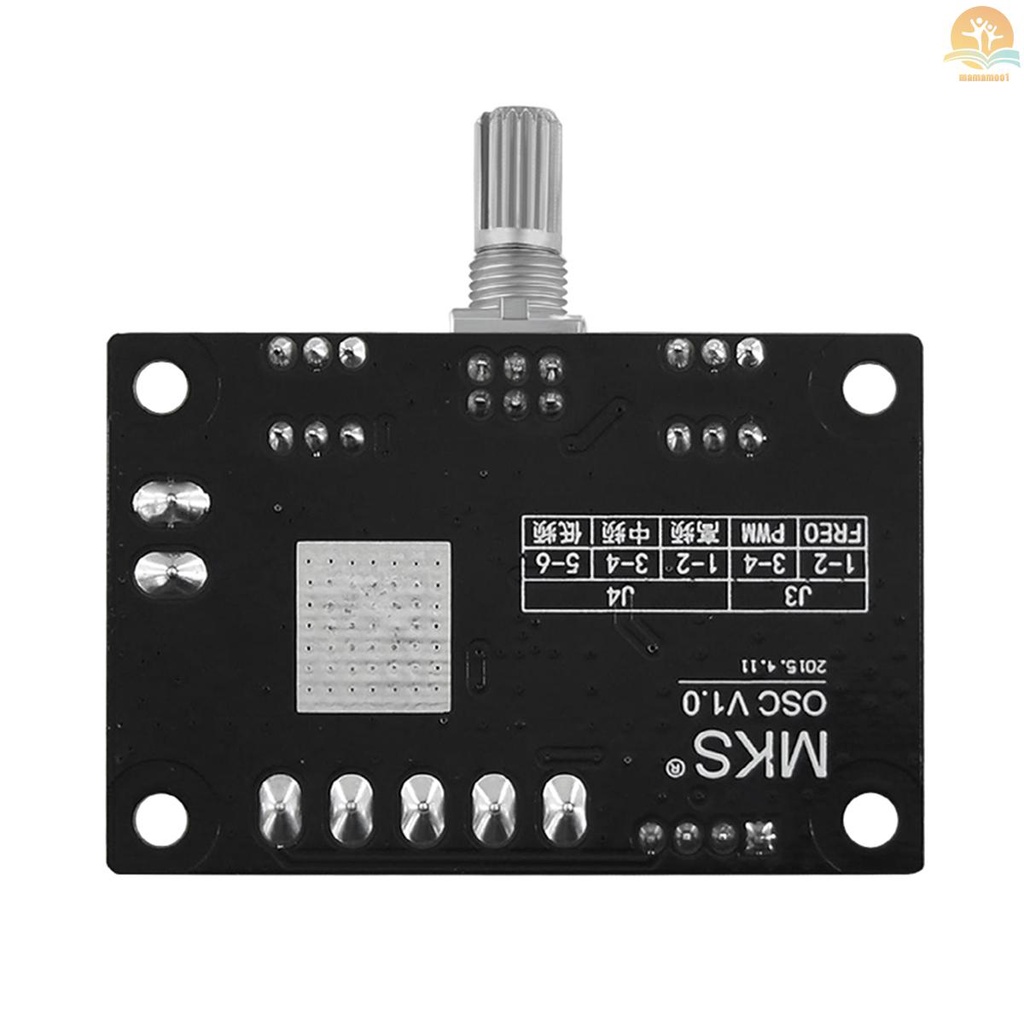

The controller has a total of 3 kinds of frequency signals: high 5.4k-160khz, medium 540-16.6khz, and low 80-2.4khz, which can be selected with a jumper.
It can generate pulse signal and PWM signal, and it can be selected by jumper.
Frequency measurement: You can measure PUL and common cathode (or common anode) two ports.

Specifications:
Power Input: 8-24V
Frequency Signals: 5.4k-160khz,540-16.6khz,80-2.4khz
Package Weight: 15g / 0.5oz
Packing List:
1 * Controller
