Detail MIXIO U87 Ai Studio Set Microphone Condensor Studio Mic
MIXIO U87 Ai Studio Set Microphone Condensor Studio Mic

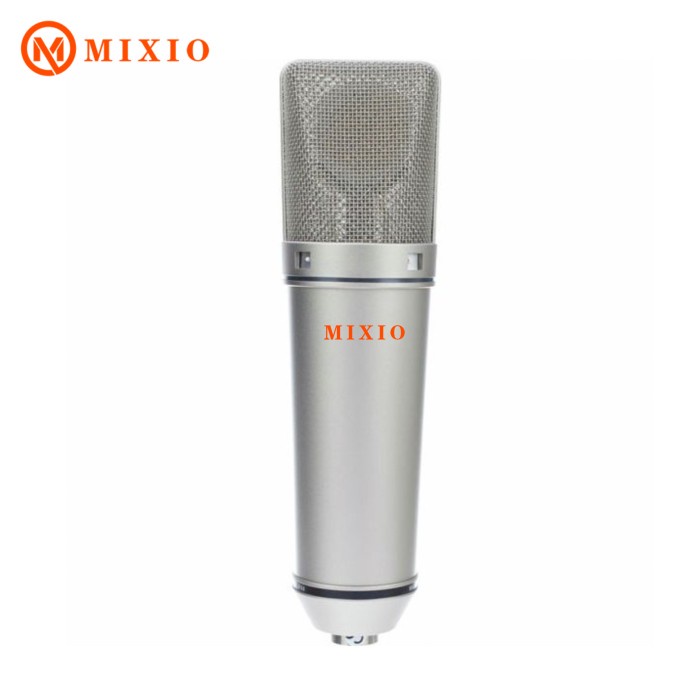

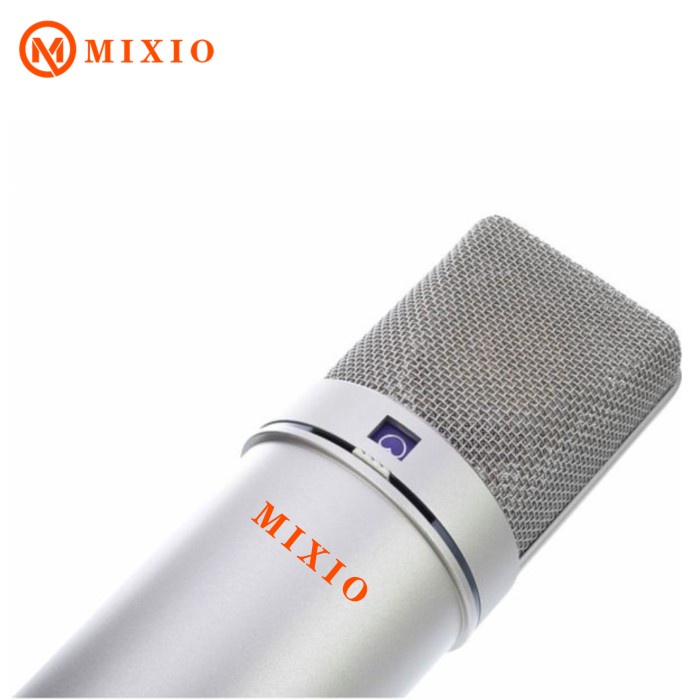

Description The nickel U 87 Ai Condenser Microphone is a large dual-diaphragm condenser microphone. It features three directional patterns, including omnidirectional, cardioid and figure-8. These are selectable with a switch below the head grille and the window above this switch shows the symbol of the selected characteristic. A 10 dB attenuation switch is located on the rear. It enables the microphone to handle sound pressure levels up to 127 dB without distortion. The low frequency response can be reduced to compensate for proximity effect.
The cardioid characteristic maintains a smooth frequency response at a distance of 30 to 40 cm, and the figure-8 characteristic at a distance of 15 to 20 cm. • Variable large diaphragm microphone • Pressure-gradient transducer with double membrane capsule • Omnidirectional, cardioid, and figure-8 characteristics • Switchable low frequencv roll-oft • Switchable 10 dB pre-attenuation • Great as main or as a support micropnone
Features : - Pressure gradient transducer - Directional characteristic: omnidirectional, cardioid, figure-8 - Switchable 10 dB attenuation - Universally applicable: Vocal, speaker, overhead or wind instruments - Nominal impedance 200 Ohm - Frequency range 20 Hz...20 kHz - Peak SPL for K < 0,5%3) 117 dB (Cardioid) - 48 V ± 4 V Phantom power required - Diameter 56 mm - Length 200 mm

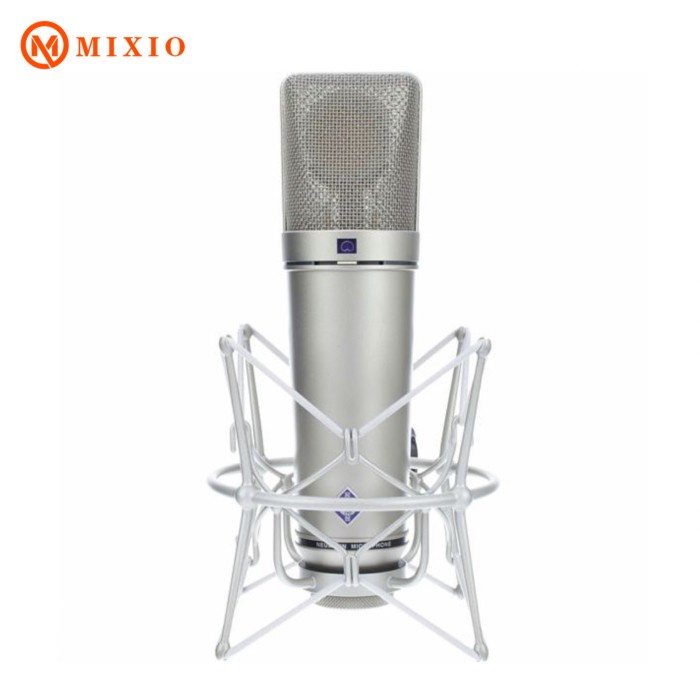

Weight 500 g Including shock mount EA87 Colour: Nickel
