Mixer audio Yamaha MG24/14 FX MG 24/14FX ( 24 Channel )

Detail Mixer audio Yamaha MG24/14 FX MG 24/14FX ( 24 Channel )

Kualitas super

24 Input channels (16 Mic inputs, 4 Stereo line inputs, 16 Insert I/O)
Dual SPX Digital Effects
Versatile EQ for Effective Sound Shaping
Six Aux Sends & Two Stereo Aux Returns
14 Buses In All For Flexible Signal Routing


Outline
Mixing capability Mixing channels 16 Mono + 4 Stereo
GROUP 4
AUX 8 (2 x alternative)
MAIN Stereo, Mono
Input channel functions CH1-16: HPF, 3-band mid-sweep PEQ, Intert I/O; CH17-24: 4-band PEQ
Output channel functions LPF on Mono out
On-board processors 2 x SPX
I/O Mic inputs 16
Phantom power +48V DC; ON/OFF per 8ch
Line inputs 4 x Stereo
Control and others Foot switch
General Specifications
Total harmonic distortion Less than 0.1%
Frequency response 0, +1.0, -3dB 20Hz-20kHz
Hum & noise level Equivalent input noise -128dBu
Residual output noise -99dBu
Crosstalk -70dB
Power requirements Depend on area of purchase; AC100V, 120V or 220-240V; 50/60Hz
Power consumption 100W
Dimensions W 819mm; 32-1/4in
H 140mm; 5-1/2in
D 551mm; 21-11/16in

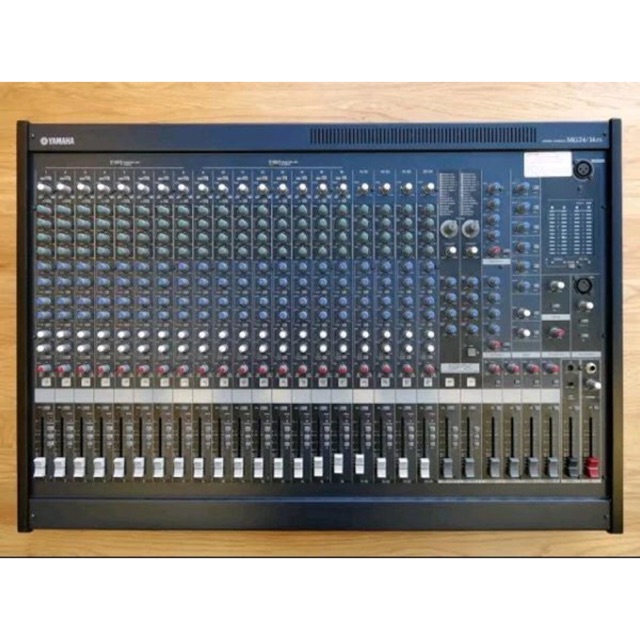

Gambar produk
