MIXER AMPLIFIER 60W 60 WATT TOA ZA-2060

Detail MIXER AMPLIFIER 60W 60 WATT TOA ZA-2060

MIXER AMPLIFIER 60W 60 WATT TOA ZA-2060

The ZA-2060 is a high cost-performance power amplifier suited for broadcasting paging or background music in schools, offices, shops, factories, mosques, churches and large rooms.

Power Source 220 - 240 V AC, or 24 - 30 V DC
Rated Output 60 W
Power Consumption 72 W (AC Operation EN60065)
4 A (DC operation at rated output)
Frequency Response 50 - 20,000 Hz (±3 dB)
Distortion Less Than 1% at 1 kHz, 1/3 rated power
Input MIC 1 - 3: -60 dB* (1.0mV), 600 Ω, balanced, phone jack
AUX 1,2: -20 dB*(100mV), 10 kΩ, unbalanced, RCA pin jack
Output Speaker out: Balanced (floating)
High impedance: 170 Ω (100 V), 83 Ω (70 V)
Low impedance: 4 Ω (15.5 V)
Rec out: 0 dB*(1.0V), 600 Ω, unbalanced, RCA pin jack
Phantom Power DC +21 V (MIC 1)
S/N Ratio More than 60 dB
Tone Control Bass: ±10 dB at 100 Hz
Treble: ±10 dB at 10 kHz
Muting MIC 1: Mutes other input signals by 0 - 30 dB attenuation
Indicator Power LED, signal LED, peak LED
Finish Panel: ABS resin, black
Case: Steel plate, black
Dimensions 420 (W) × 101 (H) × 280 (D) mm (16.5" × 4.0" × 11.0")
Weight 7 kg (15.43 lb)

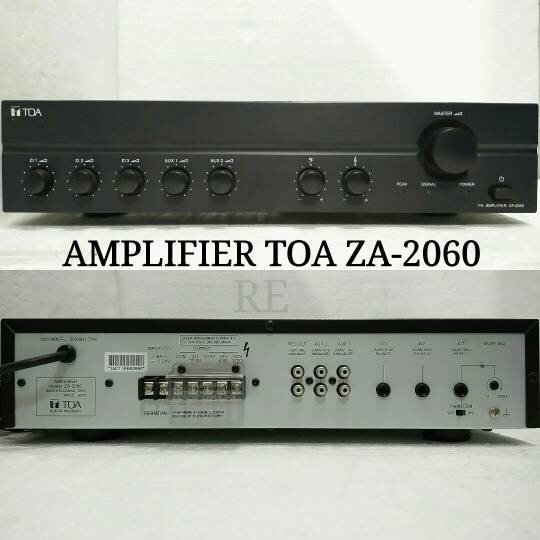

Gambar produk
