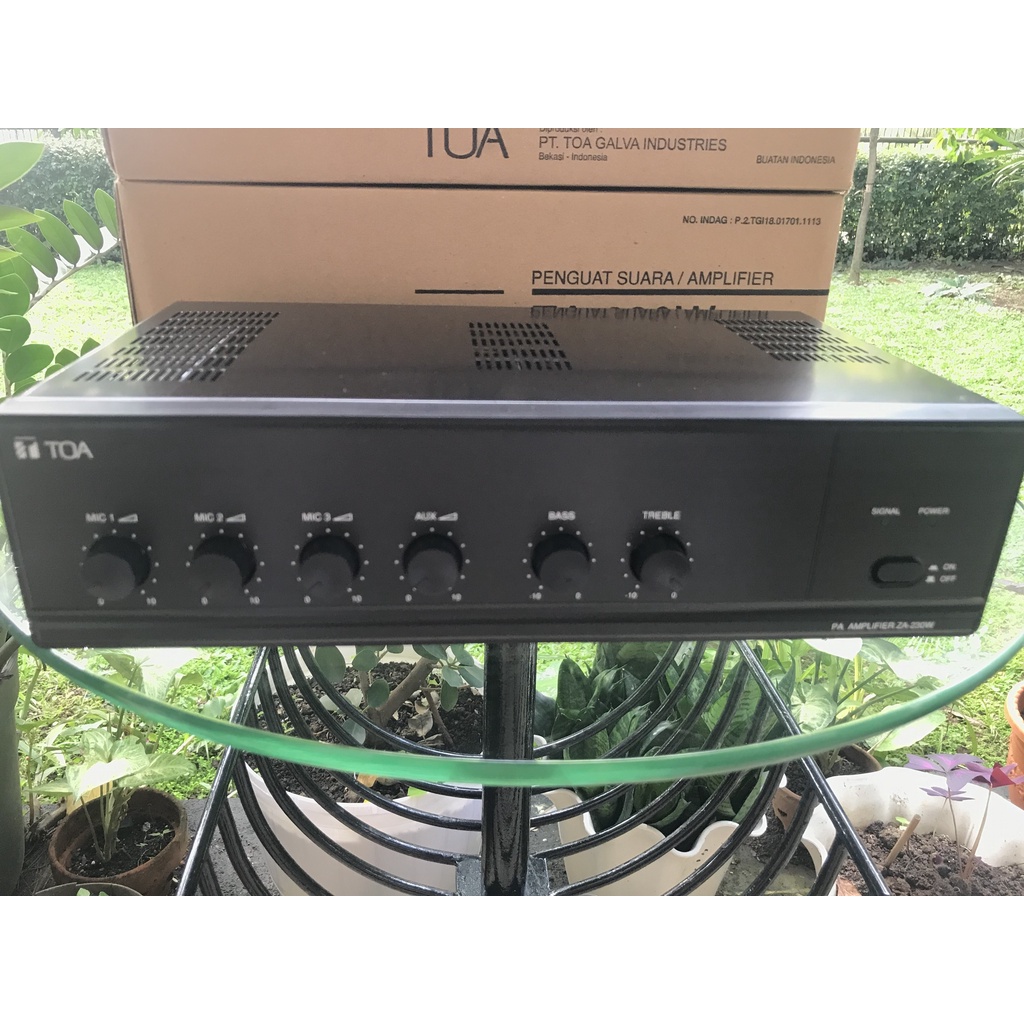

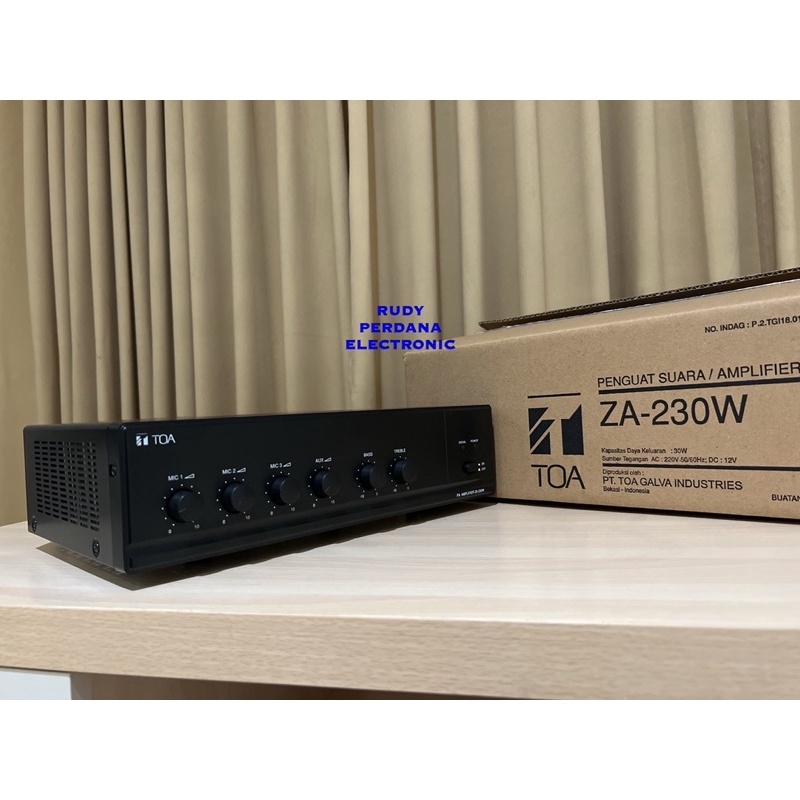

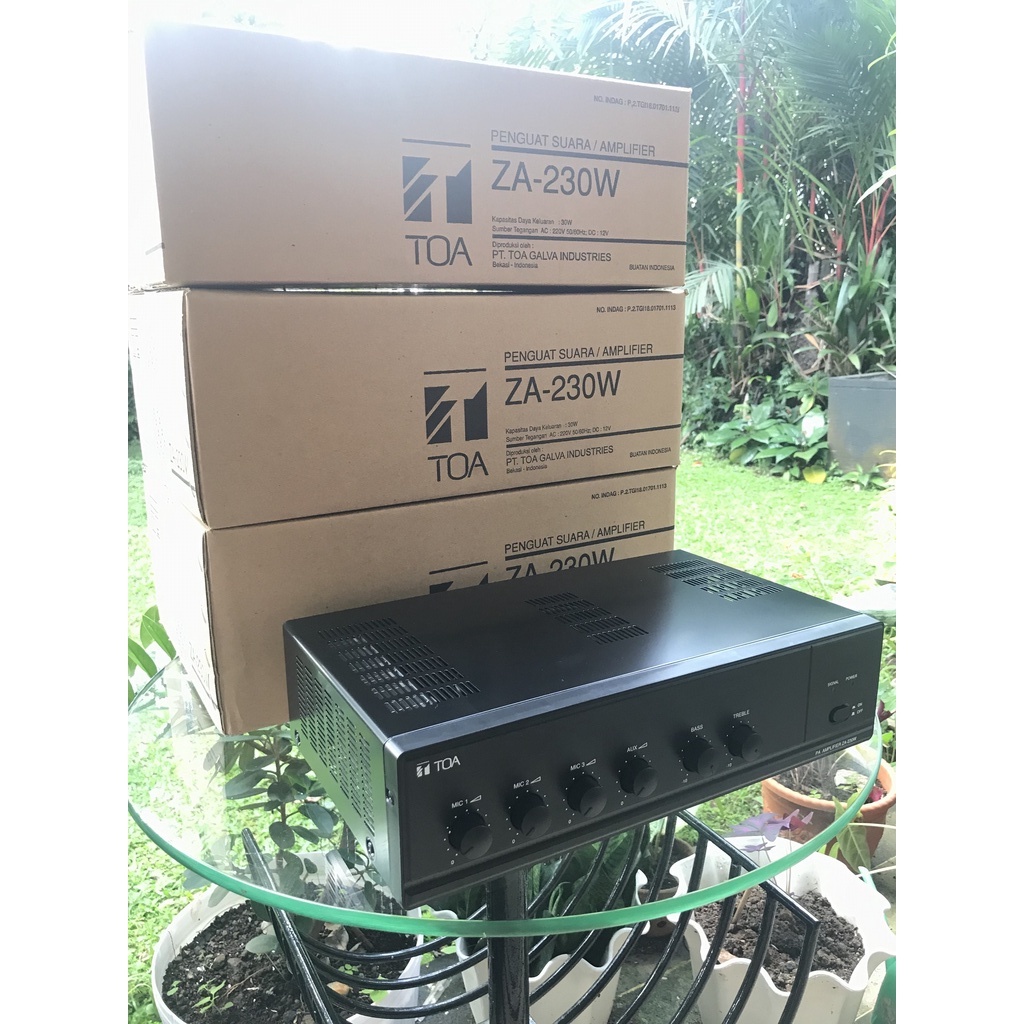

MIXER AMPLIFER TOA ZA-230W

The PA Amplifier ZA-230W, designed to fulfill requirement arrange voice like paging, oration, ceremony, inter communication, religious service place, car- calling, and others.

Power Source 220 V AC, or 12 V DC
Rated Output 30 W
Power Consumption 34 W (AC operation at IEC60065)
Current Consumption 4.5 A (DC operation at rated output)
Frequency Response 50 Hz - 20 kHz
Distortion 1 % or less at 1 kHz, 1/3 rated power

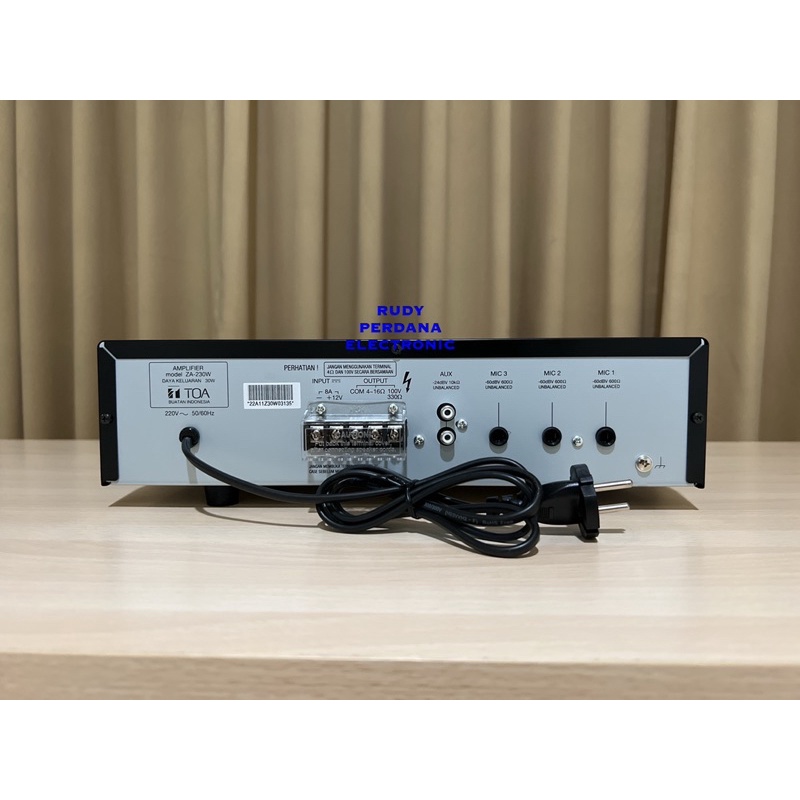

Input MIC 1 - 3: -60 dB* (1.0 mV), 600 Ω, unbalanced, phone jack
AUX: -24 dB* (60 mV), 10 kΩ, unbalanced, RCA pin jack
Output Speaker out: Floating balanced
High impedance: 330 Ω (100 V)
Low impedance: 4 Ω (11 V)
S/N Ratio 60 dB or more (MIC 1 - 3)
70 dB or more (AUX)
Tone Control Bass: -10 dB at 100 Hz
Treble: -10 dB at 10 kHz
Indicator Power LED, Signal LED
Finish Panel: ABS resin, black
Case: Steel plate, black
Dimensions 350 (W) × 100 (H) × 240 (D) mm (13.78" × 3.94" × 9.45")
Weight 3.5 kg (7.72 lb)
