mixer allen heath gl2400 424 24 ch

Detail mixer allen heath gl2400 424 24 ch

Deskripsi Produk
Spesifikasi

GL 2400 424 24 Chanel

24-channel frame
LR and M main outputs
4 audio groups with pan control
6 auxiliary sends with per-channel pre/post fader switching
2 stereo channels each with mic and dual stereo line inputs
7x4 Matrix
Proper dual functionality for front-of-house and/or monitor mixing
M can be configured as LR sum, wedge, or aux-fed sub or C master
Recording capable with channel direct outputs
Matrix external inputs with level trims and common input capability
Stereo channel line inputs can be independently routed to LR
Stereo channel mic input breakpoints for cross patching into matrix
Responsive 4-band, 2-sweep EQ
100Hz channel high pass filters
Individual phantom power and polarity switching
Dedicated channel, master and stereo monitor meters
Internal jumper plugs for pre/post-EQ aux, direct out and other options
Mutes, meters and AFL on all fader masters
Assignable talkback
1kHz oscillator and pink noise generator
2-track monitoring and replay to LR
Headphones and local monitor outputs
Electronically balanced XLR outputs with +26dBu drive capability
Preamp +34dBu maximum input capability for mic or line
Ultra low-noise mix head amp design
Internal power supply with MPS12 backup supply input
100mm dust protected faders
Metal jacks, gold-plated XLRs, sealed pots and switches
Individual circuit card assembly with nutted pots
Solid copper bus bar grounding
Sys-Link V2 console linking option
4-pin XLR lamp sockets.

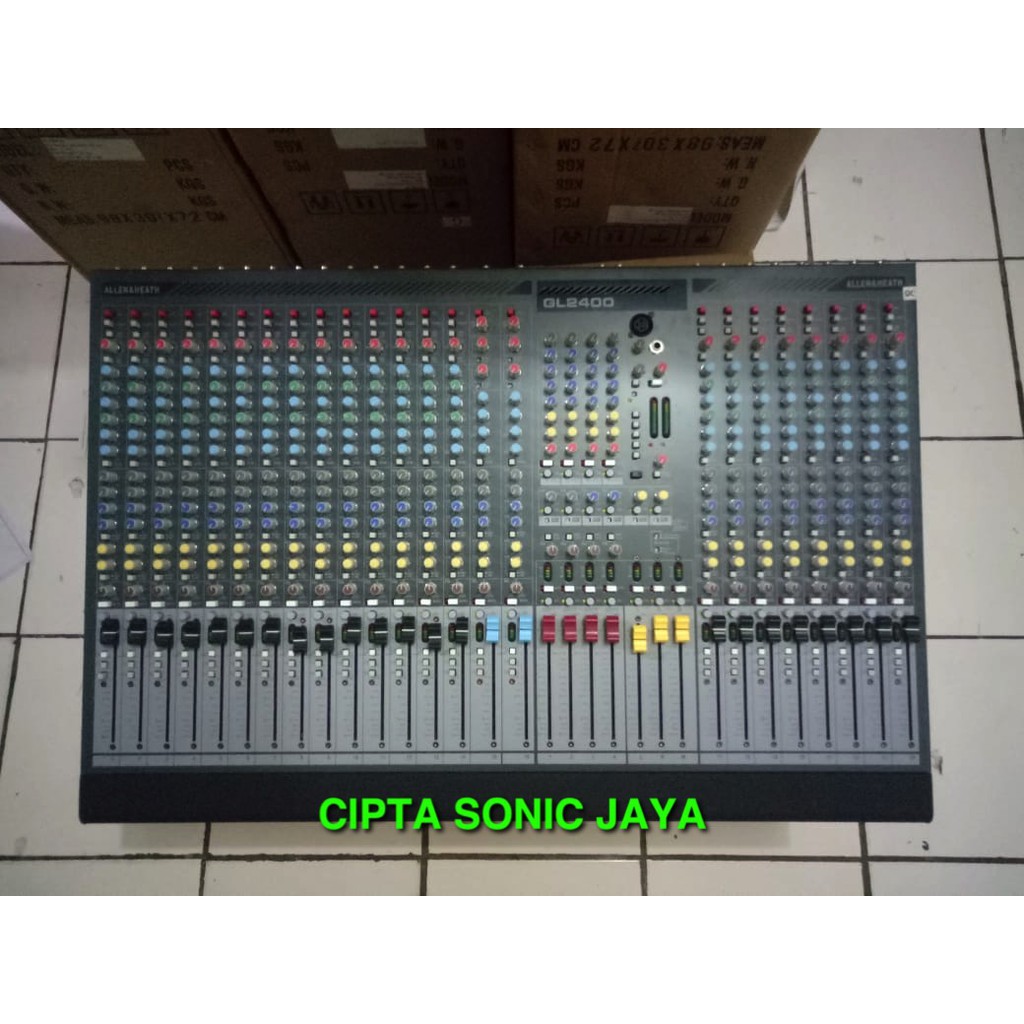

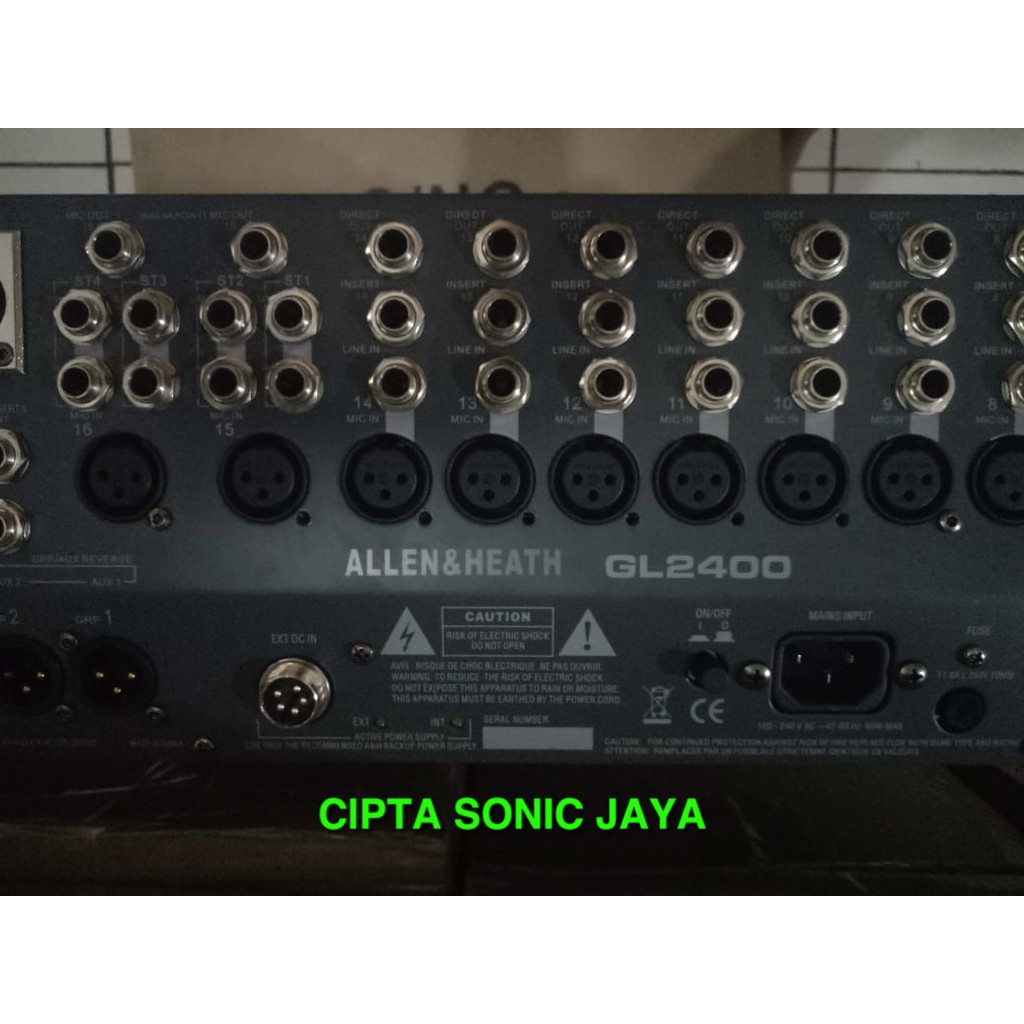

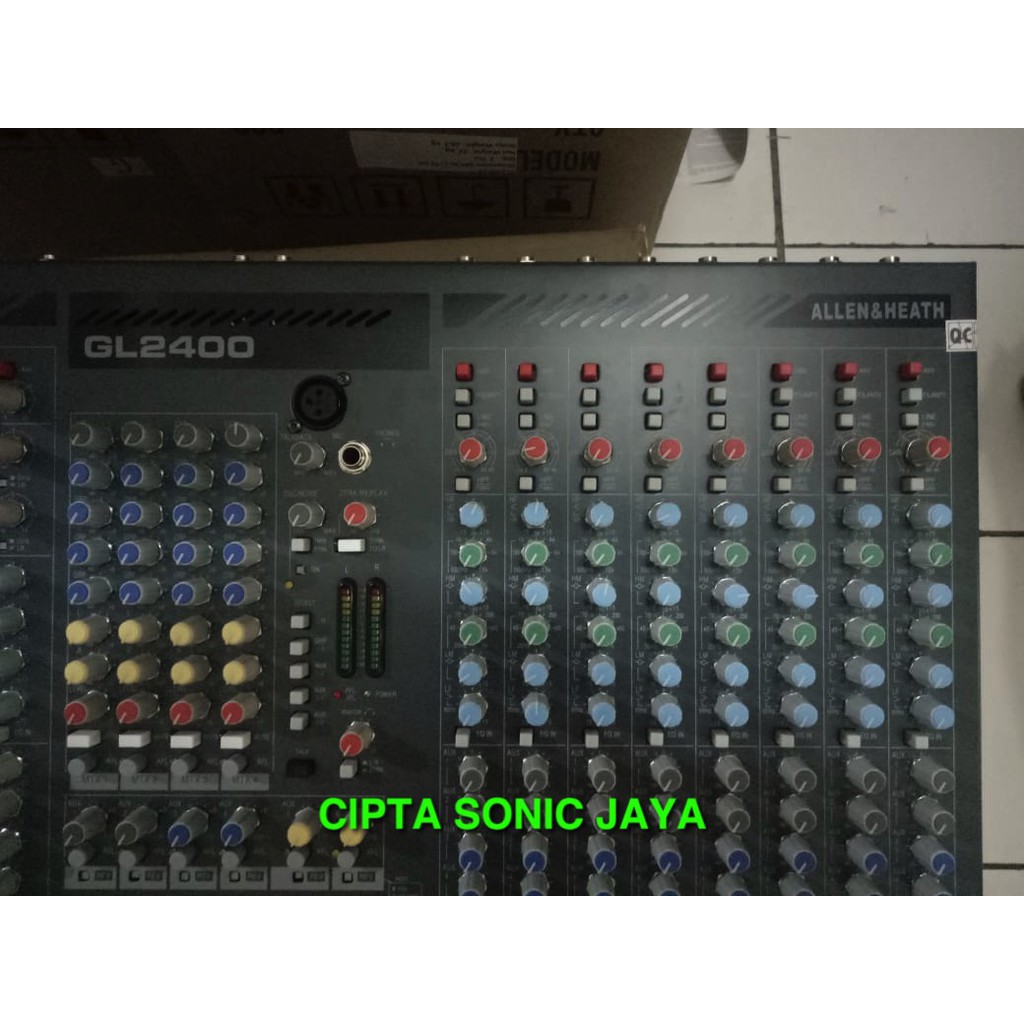

Gambar produk
