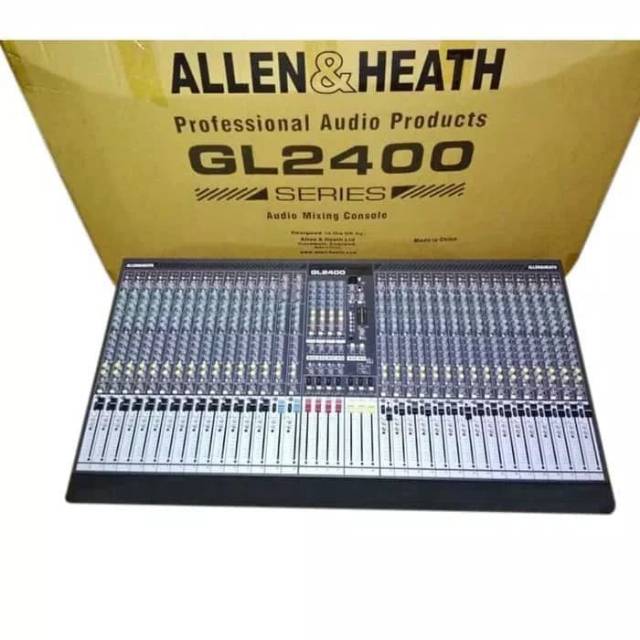

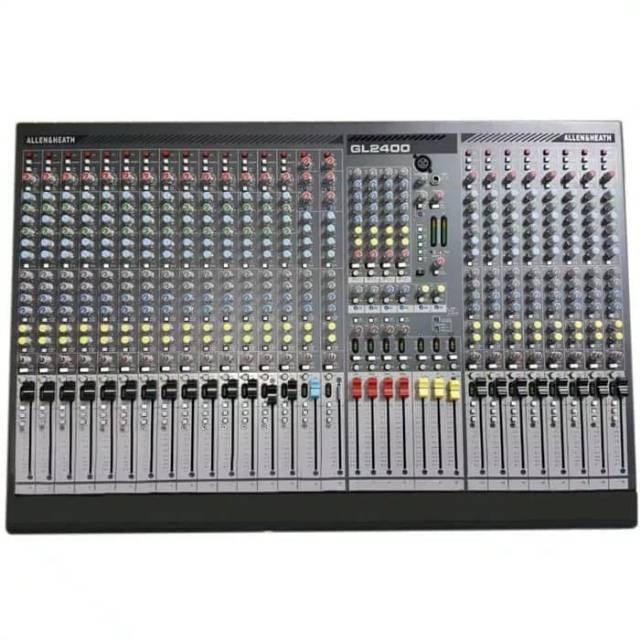

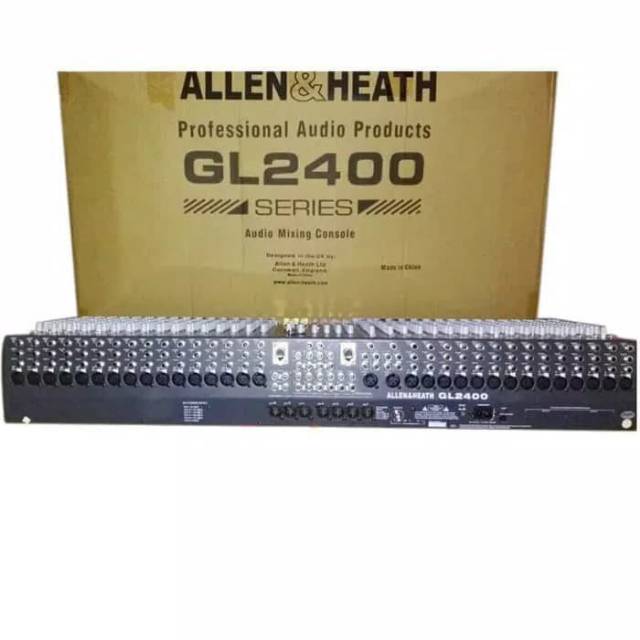

Mixer allen heart gl2400 32 chanel

Detail Mixer allen heart gl2400 32 chanel

FEATURE SUMMARY

32 channel frames
LR and M main mixes
8 Audio groups with pan and routing to LR and M
10 Auxes including a dedicated stereo send
2 multifunction stereo channels each with mic and stereo line inputs
2 extra dual stereos provide 4 summed or independent stereo returns
Fully featured 124 Matrix
Proper dual functionality for FoH/Monitor mixing
Recording capable with channel direct outputs
M can be used for centre/sub mix, LR mono sum, or engineers wedge
Matrix external inputs with level trims and common input capability
Stereo channel mic inputs can cross patch into matrix for ambience feed
Responsive 4 band, 2 sweep EQ
100Hz channel high pass filters
Individual phantom power and polarity switching
Wide angle channel and master meters
Dedicated stereo monitor meters
Per channel pre/post fader aux switching for full flexibility
Recessed pre/post-EQ aux switching per channel
Internal jumper plugs for aux, direct out and other options
Mutes on all fader masters
100mm dust protected faders
Assignable talkback to all outputs, includes a talk switch latch mode
1kHz oscillator / pink noise generator with patchable external output
2-track monitoring and replay to LR
3 headphones/earpiece sockets and local monitor outputs
Electronically balanced XLR outputs with +26dBu drive capability
Preamp 74dB range with +34dBu input capability for mic or line
Ultra low noise mix head amp design
Uses RPS11 high performance external linear power supply
Built-in combiner for redundant backup supply
Individual circuit card assembly with nutted pots
Sys-Link V2 console input/output linking option
4-pin XLR lamp sockets Allen & Heath LEDlamp available

Barang asli bagus garansi resmi

Gambar produk
