Mini Wattmeter KWH watt meter AC 220V 50Hz Din Rail 23A Single Phase

Elektronik > Kelistrikan > Penghemat Listrik > Mini Wattmeter KWH watt meter AC 220V 50Hz Din Rail 23A Single Phase
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:diskonlapakLihat semua produk Elektronik oleh diskonlapak
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

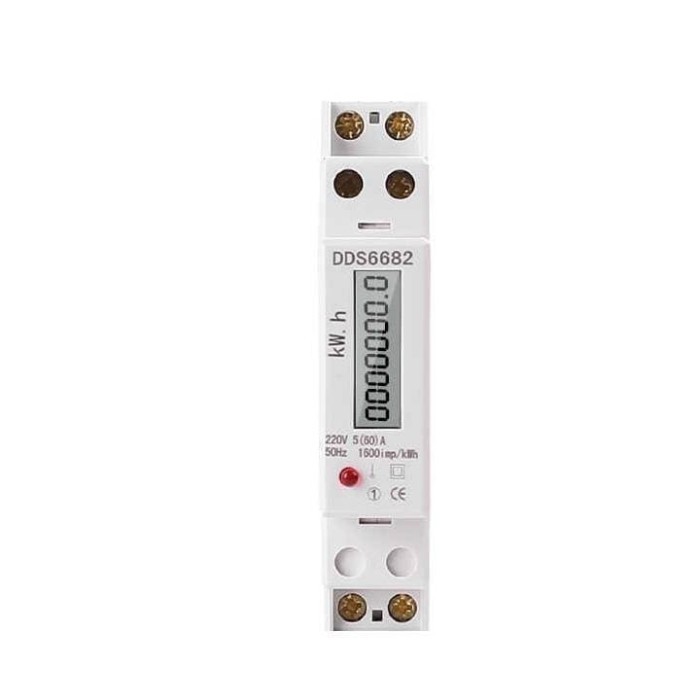

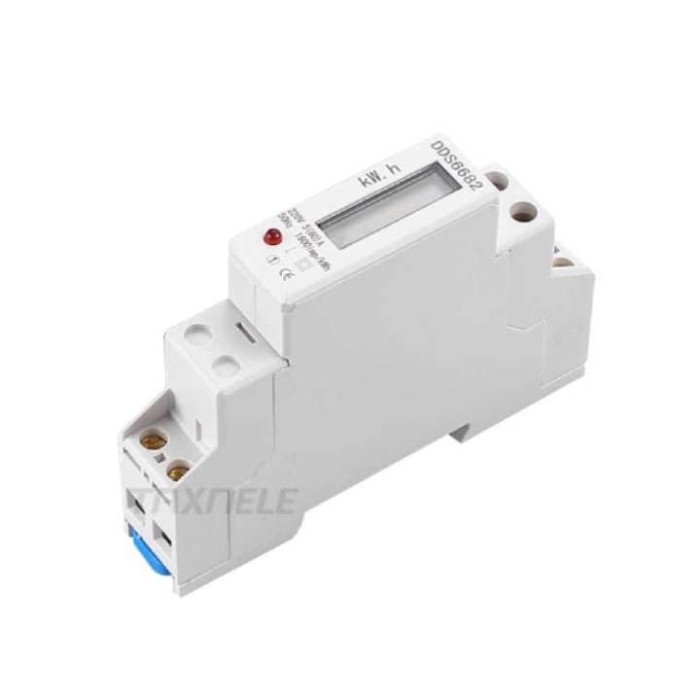

Detail Mini Wattmeter KWH watt meter AC 220V 50Hz Din Rail 23A Single Phase

Spesifiikasi:
Accuracy class: class 1
Phase : single phase
Current :5(60A)
Rated voltage: 220V
Output voltage:230VAC 110V
Frequency 50Hz 60Hz
Max current 60A
Starting current 20mA
Measuring range: 0-99999.9
Impluse output: 1600imp/kWh
Display type: LCD dispaly

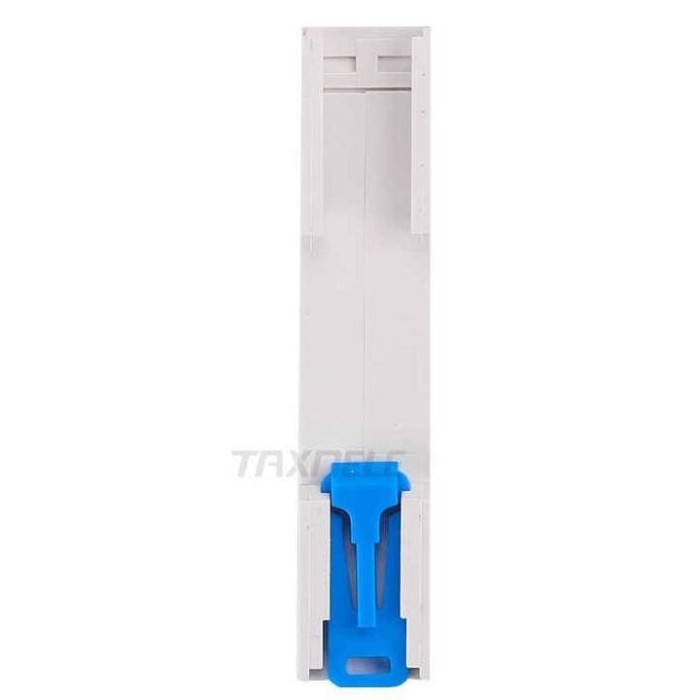

Installation: 35mm din rail ,
Meter accurate is +-1%

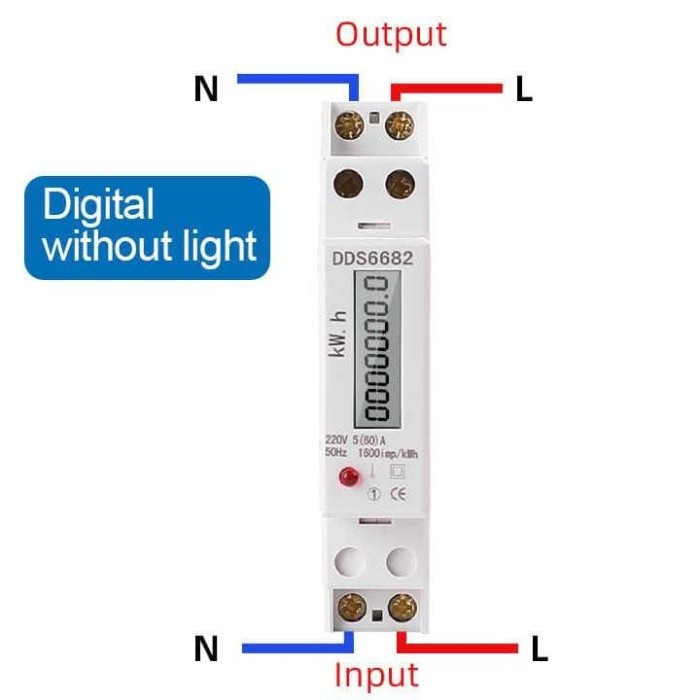

Direct wire connection ,not need through external CT .
Outline dimension :116.5*18*63mm
