Mini W5500 USR-ES1 ENC28J60 SPI to LAN Ethernet module W 5500 for arduino

Detail Mini W5500 USR-ES1 ENC28J60 SPI to LAN Ethernet module W 5500 for arduino

High speed SPI interface 80MHz
Hardware-TCPIP-protocol stack user built in, almost without understanding the complex network protocol knowledge
Supports up to 8 Socket
Support TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE protocol
Integration of the data link layer, physical layer
Support the wakeup
Support high speed serial peripheral interface (SPI model 0, 3)
Internal 32K bytes receive buffer
The embedded 10BaseT/100BaseTX Ethernet physical layer (PHY)
Support auto negotiation (10/100-Based full duplex or half duplex)
Does not support the IP patch
The working voltage of 3.3V, I/O and 5V voltage signal
LED display (full duplex or half duplex, network connection, network speed,active)
Pin type package ultra small, convenient for embedded applications
Application of C sample project

Product Characters

Power supply mode:3.3V external power supply, current should be more than 200mA;
Control interface:The TTL level, 3.3V SPI interface;
PCB size:23 * 25 mm;
Mechanical Dimensions:28.5 * 23 * 24;


Library dan Tutorial untuk Arduino :
https://github•com/adafruit/Ethernet2
https://github•com/Wiznet/WIZ_Ethernet_Library
https://www•arduino•cc/en/Reference/Ethernet

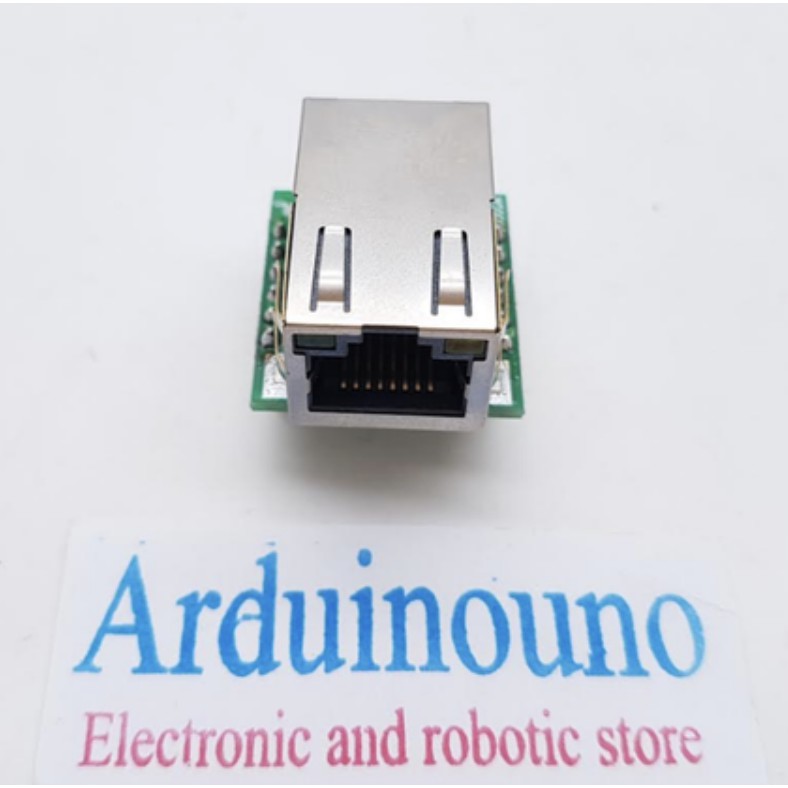

Gambar produk
