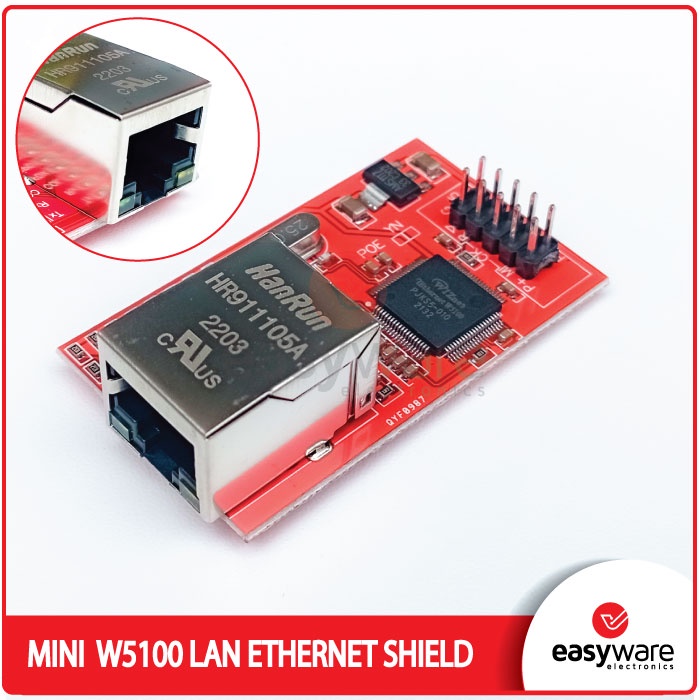

Mini W5100 LAN Ethernet Shield Network Board Module For Arduino

Detail Mini W5100 LAN Ethernet Shield Network Board Module For Arduino

Hi #RekanEasyWare ...
SKU: MOD0138

The W5100 is a full-featured, single-chip Internet-enabled 10/100 Ethernet controller designed for embedded applications where ease of integration, stability, performance, area, and system cost control are required. The W5100 has been designed to facilitate the easy implementation of Internet connectivity without OS. The W5100 is IEEE 802.3 10BASE-T and 802.3u 100BASE-TX compliant.

The W5100 includes fully hardwired, market-proven TCP/IP stack and integrated Ethernet MAC & PHY. Hardwired TCP/IP stack supports TCP, UDP, IPv4, ICMP, ARP, IGMP, and PPPoE which has been proven in various applications for several years. 16Kbytes internal buffer is included for data transmission. No need for consideration for handling Ethernet Controller, but simple socket programming is required.

Features:
-Support Hardwired TCP/IP Protocols: TCP, UDP, ICMP, IPv4 ARP, IGMP, PPPoE, Ethernet
-10BaseT/100BaseTX Ethernet PHY embedded
-Support Auto-Negotiation (Full-duplex and half-duplex)
-Support Auto MDI/MDIX
-Support ADSL connection (with support PPPoE Protocol with PAP/CHAP Authentication mode)
-Supports 4 independent sockets simultaneously
-Not support IP Fragmentation
-Internal 16Kbytes Memory for Tx/Rx Buffers
-0.18 µm CMOS technology
-3.3 V operation with 5 V I/O signal tolerance
-Support Serial Peripheral Interface(SPI MODE 0, 3)

Package :
- 1x W5100 Ethernet Module

Gambar produk
