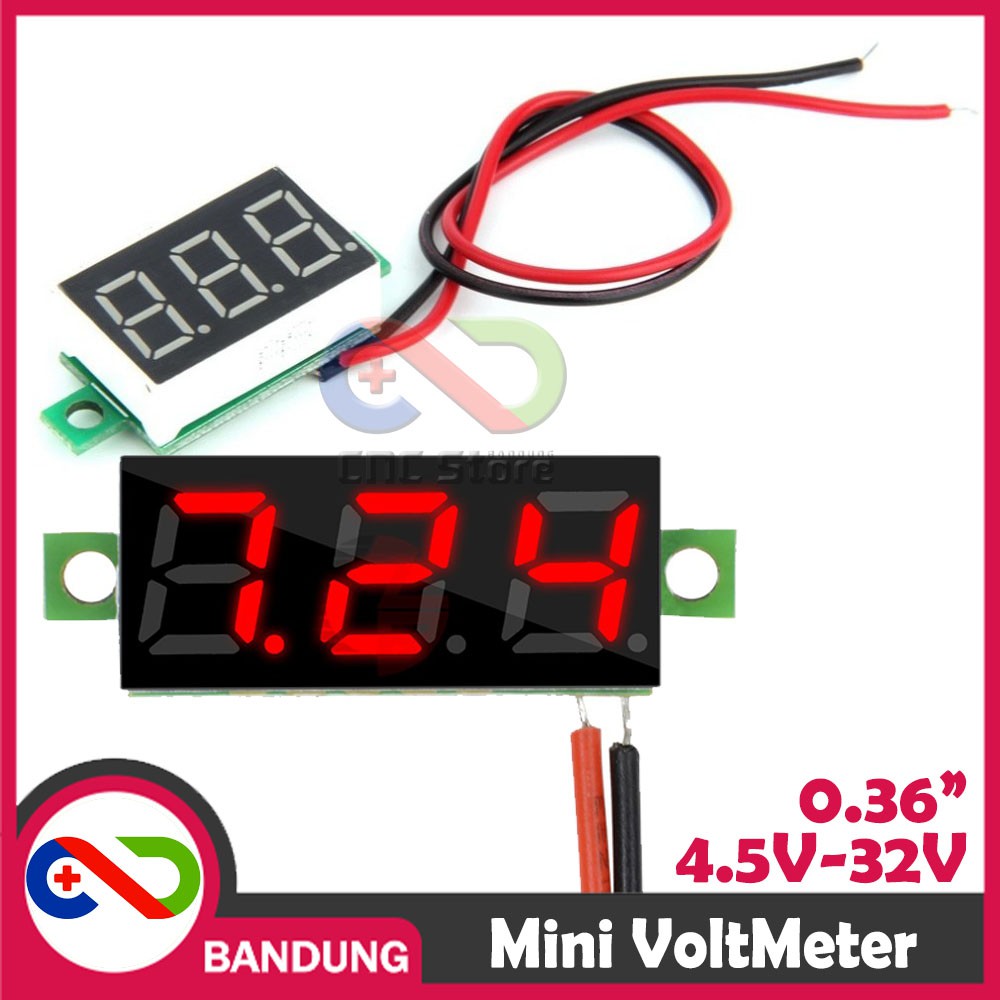

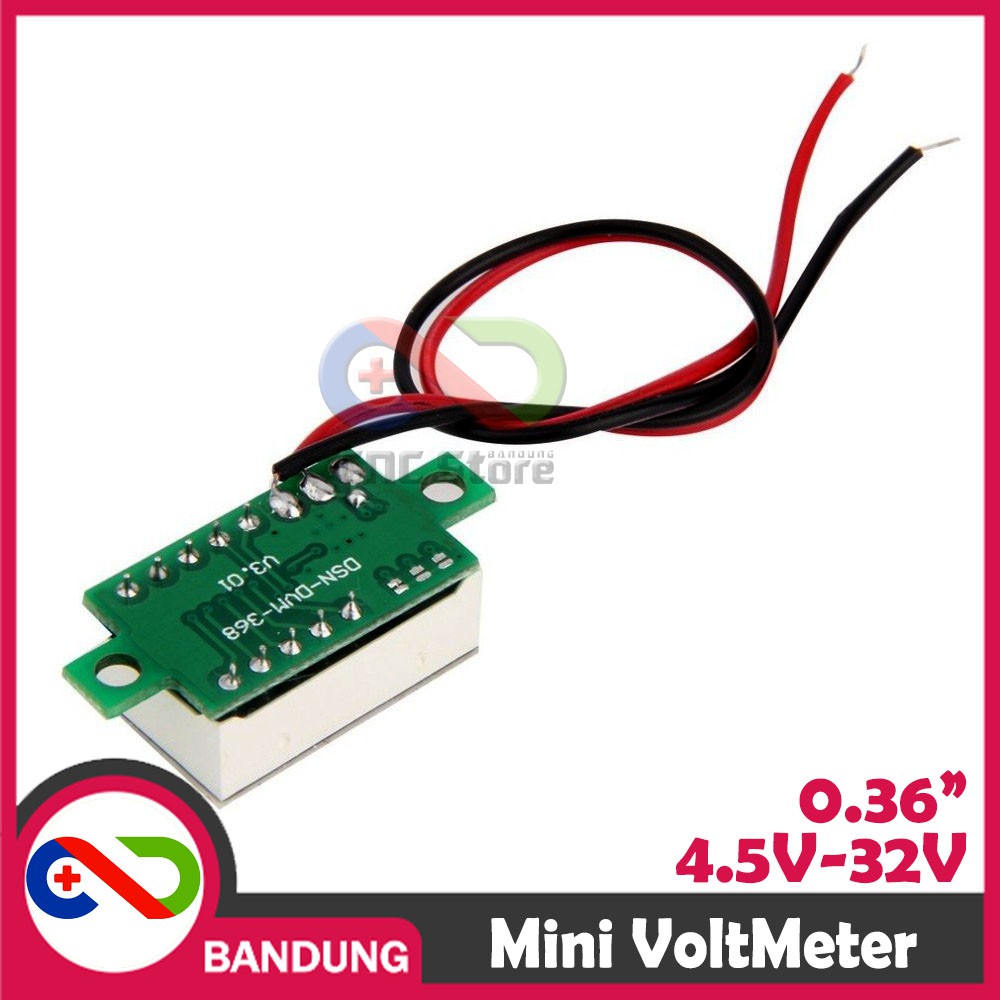

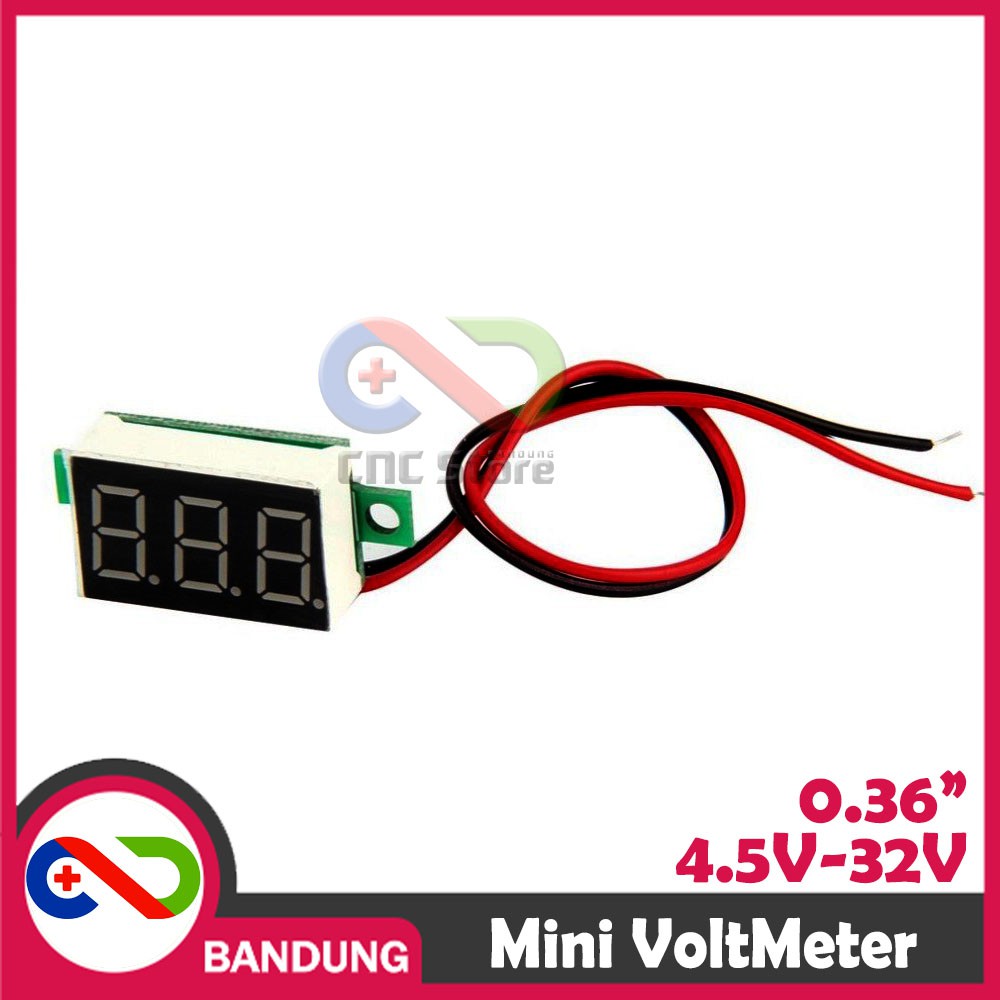

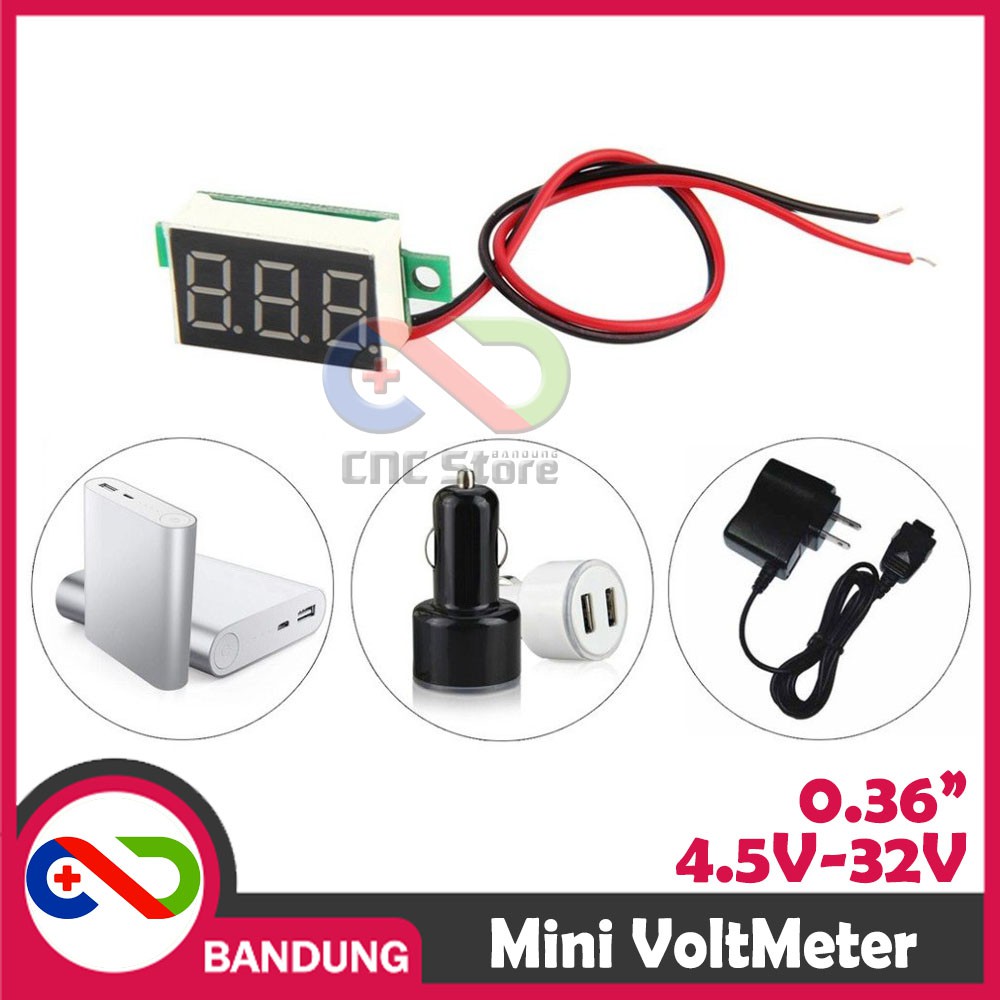

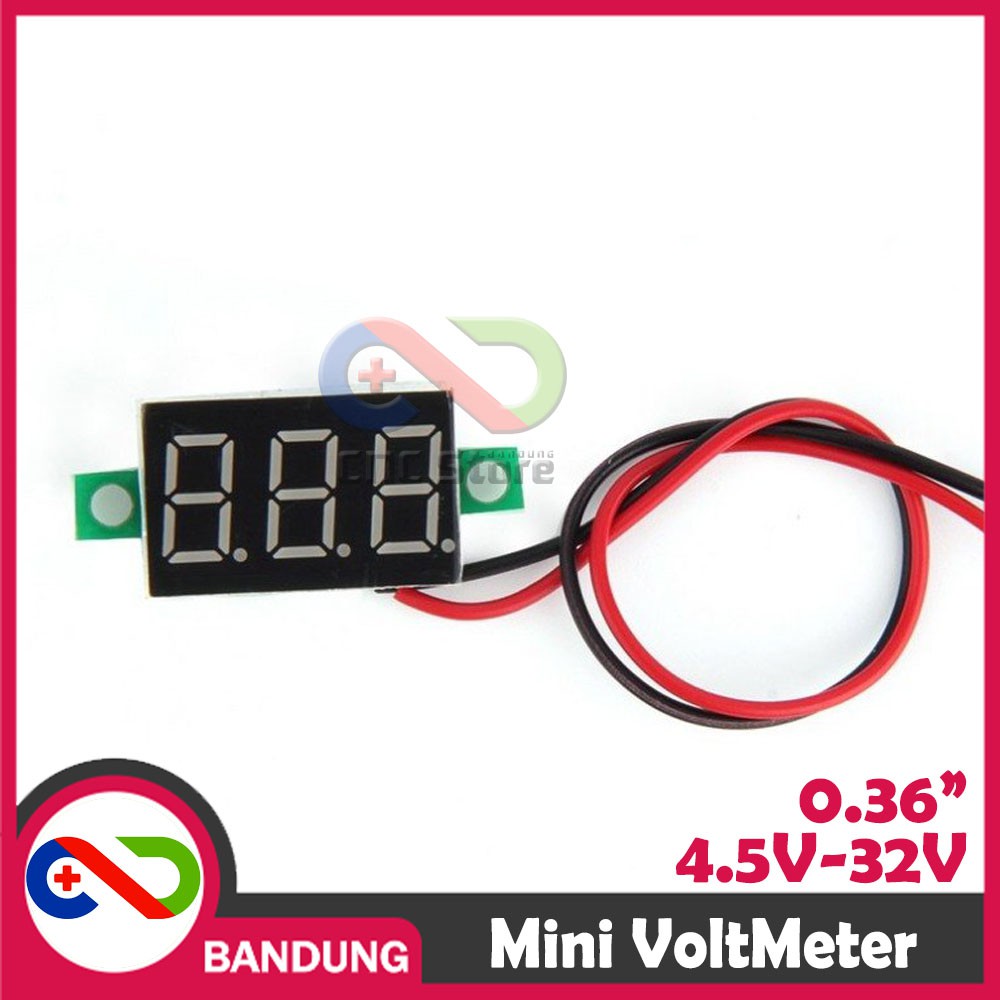

Detail MINI VOLTMETER VOLT PANEL METER DIGITAL LED 4.5V-32V DC 2 WIRE 0.36" RED MERAH
P/N : MET-0012
==========
Voltmeter nan mini dan mungil ini bisa agan pakai untuk mengukur tegangan di rangkaian elektronik agan. Range tegangan yang diukur minimal 2.7V dan maksimal 32V DC ditampilkan di seven segment bercahaya hijau. Terdapat dua buah kabel, merah disambung ke (+) dan yang hitam disambung ke (-). Voltmeter ini cukup presisi, dengan tingkat error +/- 0.1V.
So, silahkan di Order gan !!!
Spesifikasi :
Measuring range : DC 4.5-32.0V
Power supply: No need for additional power supply
input Max : DC32.0V . Note: Input voltage higher than 32V may be permanently damaged!
Allowable error : 0.1% , the decimal point is automatically shifted
input resistance : 100K Europe
Working current : 18mA
Refresh speed : About 300mS once
Reverse Protection : Yes: Display method : Three 0.36 "LED digital tube RED
Lead length : 15cm
Dimensions : 22 x 19 x 9 mm , length X width x thick (without mounting ears);
With the installation of ear length: 33mm
Weight : 6g
Operating temperature : -10 C to 65 C
Paket : 1x MINI VOLTMETER VOLT PANEL METER DIGITAL LED 4.5V-32V DC 2 WIRE 0.36" RED MERAH
UNTUK HARGA GROSIR CHAT US ^^
Gambar produk
