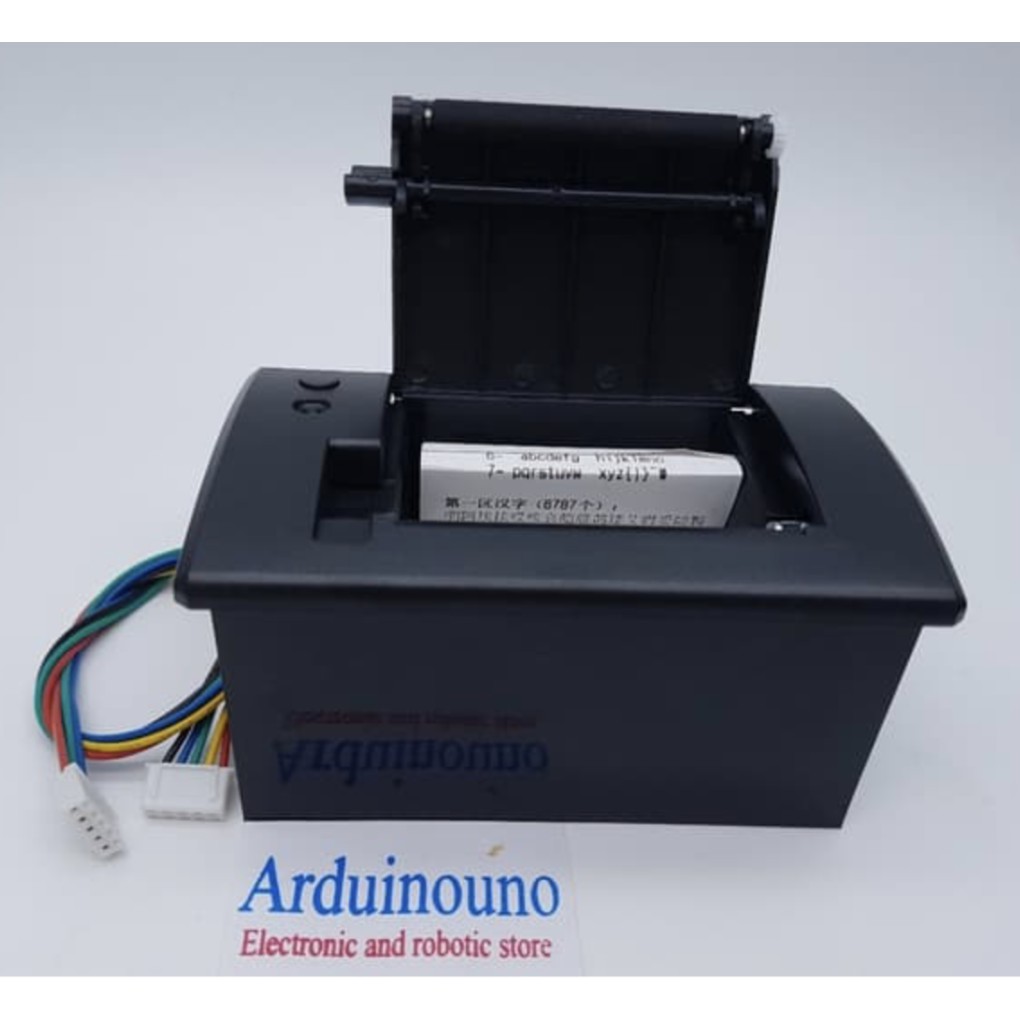

Mini Thermal Printer TTL Interface Panel printer embedded black

Detail Mini Thermal Printer TTL Interface Panel printer embedded black

product_page=1_ob=11_q=printer_catid=577_po=2
Features:
* Beautiful shape
* Easy paper loading structure, , low noise, thermal printing
* Different interfaces optional
* Front panel to replace paper structure
* Easily embedded in a variety of different instruments and gauges
* Embedded depth 32/36 mm
* Dimensions (W x D x H) 103 57 50mm
* Installation opening dimensions 111 65mm

Applications:
taxi meter, logger, self-service equipment, ticketing machines, medical equipment, weighing, electronic equipment, test equipment

Specifications:
Print method : Thermal
Print Speed : 50-85 mm / s
Resolution : 8 dots / mm, 384 dots / line
Effective Printing width : 48 mm character ASCII character set code,
Print Font ANK: 5 7,
Paper specifications : paper type thermal paper roll
Paper width : 57.5 +- 0.5mm
Paper thickness : 0.06 to 0.07 mm core inner 13 mm (minimum)
Roll maximum outer diameter : 23 mm
Reliability : MTBF cycle (MCBF) 500 million lines
Interface : TTL
Embedded depth : 32/36 mm
Power : 5V-9V DC
Environment Operating temperature 5 Derajat C ~ 50 Derajat C
Operating humidity 10% to 80%
Storage temperature -20 Derajat C ~ 60 Derajat C
Storage humidity 10% to 90%
