MINI PLC SPLITTER RATIO 1x2 PLC SPLITTER 20 80 ISI 2

Merek: HSAIRPO | Lihat selengkapnya produk Komputer & Aksesoris dari HSAIRPO
Komputer & Aksesoris > Komponen Network > Kabel Network & Konektor > MINI PLC SPLITTER RATIO 1x2 PLC SPLITTER 20 80 ISI 2
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:Langitnet NetworkLihat semua produk Komputer & Aksesoris oleh Langitnet Network
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail MINI PLC SPLITTER RATIO 1x2 PLC SPLITTER 20 80 ISI 2

ISI 2 PCS
MERK : HS AIRPO
MINI PLC SPLITTER RATIO 1x2
PLC SPLITTER 20:80

1X2 SINGLE MODE PLC SPLITTER TEST REPORT
S/N 220922055 Operating Wavelength(nm) 1310/1550
Input Fiber Length(m) 1.0 Output Fiber Length(m) 1.0
Operating Temperature -40 ~ 85 Storage Temperature -40 ~ 85
Package Dimenssion(mm) 60x7x4 Fiber Type G657A1
Connector Type SC/UPC Date 2022/09/22
Cable(mm) 0.9 QC:Approved OK
Channel IL(dB)
1310nm 1490nm 1550nm
CH1 20% 7.72 / 7.70
CH2 80% 1.20 / 1.24
Uniformity(dB)@1310nm 0.02 PDL(dB) <0.20
Uniformity(dB)@1490nm 0.00 Directcity(dB) >55
Uniformity(dB)@1550nm 0.04 Return Loss(dB) >55

1X2 SINGLE MODE PLC SPLITTER TEST REPORT
S/N 220922056 Operating Wavelength(nm) 1310/1550
Input Fiber Length(m) 1.0 Output Fiber Length(m) 1.0
Operating Temperature -40 ~ 85 Storage Temperature -40 ~ 85
Package Dimenssion(mm) 60x7x4 Fiber Type G657A1
Connector Type SC/UPC Date 2022/09/22
Cable(mm) 0.9 QC:Approved OK
Channel IL(dB)
1310nm 1490nm 1550nm
CH1 20% 7.80 / 7.61
CH2 80% 1.25 / 1.21
Uniformity(dB)@1310nm 0,19 PDL(dB) <0.20
Uniformity(dB)@1490nm 0.00 Directcity(dB) >55
Uniformity(dB)@1550nm 0.05 Return Loss(dB) >55

Gambar produk

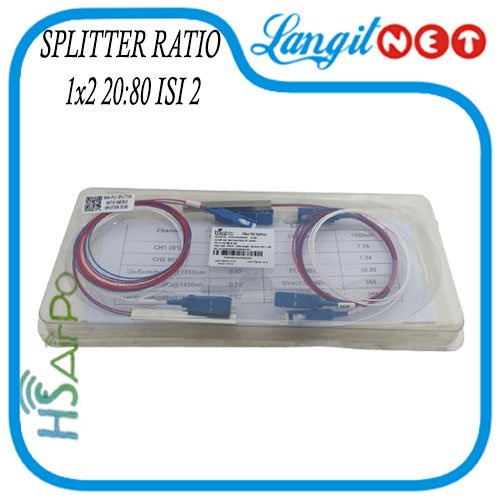

MINI PLC SPLITTER RATIO 1x2 PLC SPLITTER 20 80 ISI 2
MINI PLC SPLITTER RATIO 1x2 PLC SPLITTER 20 80 ISI 2
