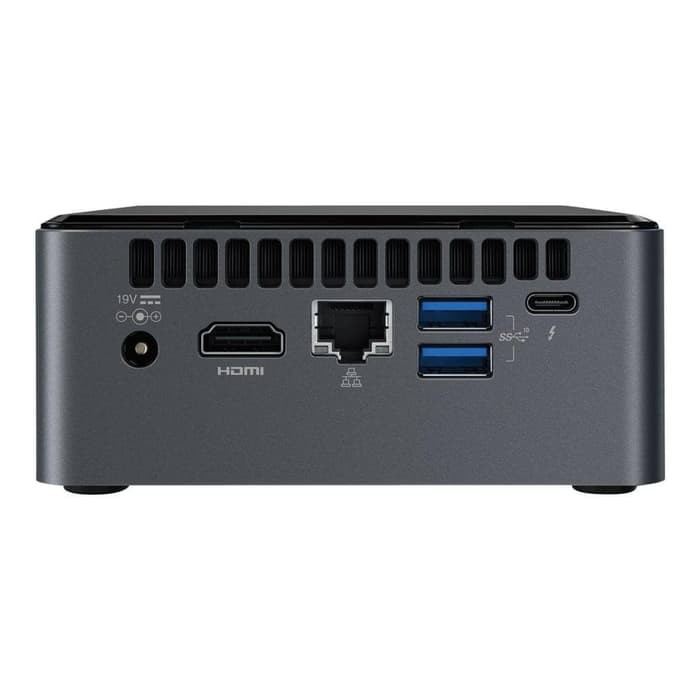

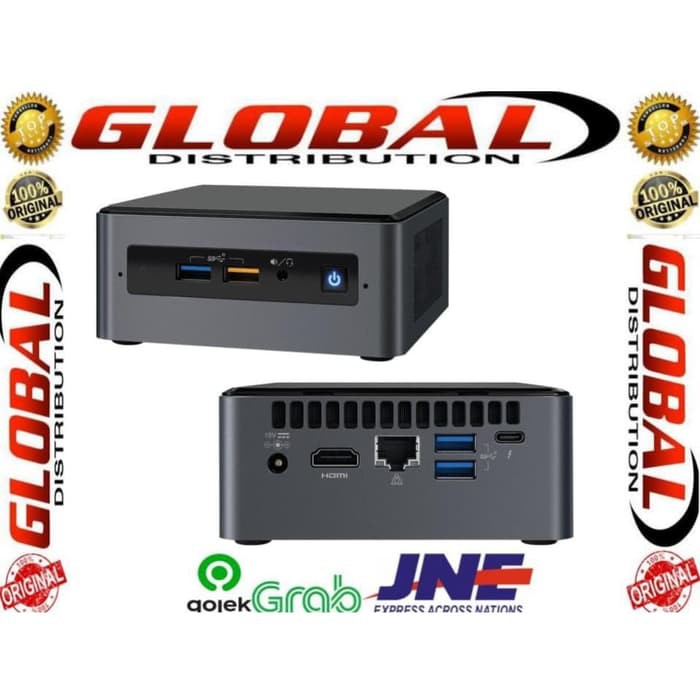

Intel® NUC Kit NUC8i5BEH
Spesifikasi :
- Intel i5 8259U
- Ram 8Gb Ddr4
- Ssd 26GB
- Windows 10 Profesioanal
Essentials
Product Collection Intel® NUC Kit with 8th Generation Intel® Core™ Processors
Code Name Products formerly BEAN CANYON
Status Launched
Launch Date Q3'18
Supported Operating Systems Windows 10, 64-bit*
Board Number NUC8BEB
Board Form Factor UCFF (4" x 4")
Socket Soldered-down BGA
Internal Drive Form Factor M.2 and 2.5" Drive
# of Internal Drives Supported 2
Off Roadmap No
Lithography 14 nm
TDP 28 W
DC Input Voltage Supported 12-19 VDC
Processor Included Intel® Core™ i5-8259U Processor (6M Cache, up to 3.80 GHz)
Intel® vPro™ Platform Eligibility ‡ No
# of Cores 4
# of Threads 8
Processor Base Frequency 2.30 GHz
Max Turbo Frequency 3.80 GHz
Warranty Period 3 yrs
Supplemental Information
Embedded Options Available No
Datasheet View now
Description Other features: Includes Thunderbolt 3 (40Gbps) USB 3.1 Gen 2 (10Gbps) and DP 1.2 via USB-C; also includes microSDXC card slot, dual microphones
Product Brief View now
Processor Graphics
Processor Graphics ‡ Intel® Iris® Plus Graphics 655
Integrated Graphics ‡ Yes
Graphics Output HDMI 2.0a; USB-C (DP1.2)
# of Displays Supported ‡ 3
Expansion Options
PCI Express Revision Gen3
PCI Express Configurations ‡ M.2 slot with PCIe X4 lanes
Removable Memory Card Slot microSDXC with UHS-I support
M.2 Card Slot (storage) 22x42/80
I/O Specifications
# of USB Ports 6
USB Configuration 2x front and 3x rear USB 3.1 Gen2; 2x USB 2.0 via internal headers
USB Revision 2.0, 3.1 Gen2
USB 2.0 Configuration (External + Internal) 0 + 2
USB 3.0 Configuration (External + Internal) 2B 2F + 0
Total # of SATA Ports 2
Max # of SATA 6.0 Gb/s Ports 2
RAID Configuration 2.5" HDD/SSD + M.2 SATA SSD (RAID-0 RAID-1)
Audio (back channel + front channel) 7.1 digital (HDMI mDP)
