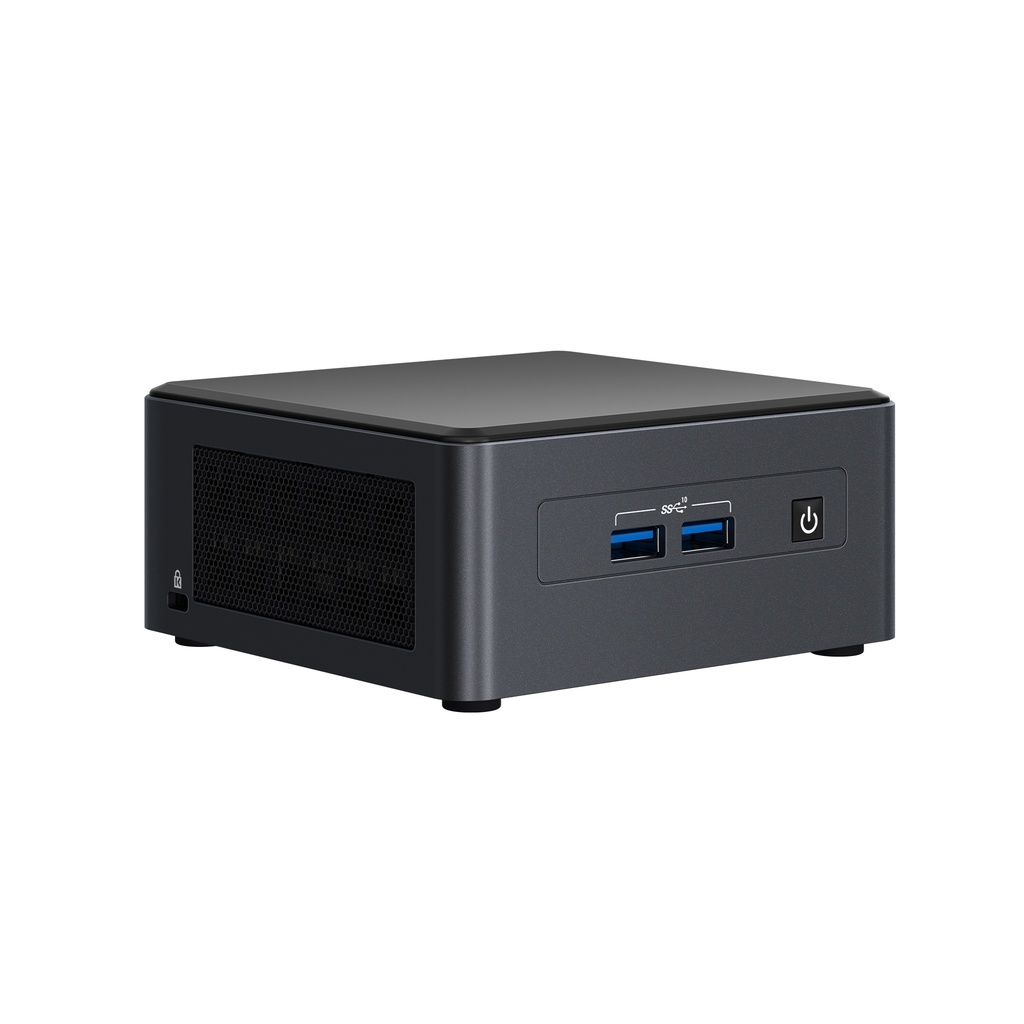

MINI PC INTEL NUC 11TNHI30Z CORE i3 - INTEL NUC11TNHI3

Detail MINI PC INTEL NUC 11TNHI30Z CORE i3 - INTEL NUC11TNHI3

Intel® NUC Kit with 11th Generation Intel® Core™ Processors

Code Name
Products formerly Tiger Canyon

Status
Launched

Launch Date
Q1'22

Expected Discontinuance
1H'24

Supported Operating Systems
Windows 11 Home*, Windows 11 Pro*, Windows 10 Home, 64-bit*, Windows 10 IoT Enterprise*, Windows 10 Pro, 64-bit*, Red Hat Linux*, Ubuntu 20.04 LTS*

Board Number
NUC11TNBi30Z

Board Form Factor
UCFF (4" x 4")

Socket
Soldered-down BGA

Internal Drive Form Factor
M.2 and 2.5" Drive

# of Internal Drives Supported
3

TDP
15 W

DC Input Voltage Supported
12-20 VDC

Processor Included
Intel® Core™ i3-1115G4 Processor (6M Cache, up to 4.10 GHz)

Total Cores
2

Total Threads
4

Lithography
10 nm SuperFin

Max Turbo Frequency
4.10 GHz

Supplemental Information
Embedded Options Available
No

Memory & Storage
Memory Types
DDR4-3200 1.2V SO-DIMMs

Max # of Memory Channels
2

Max # of DIMMs
2

ECC Memory Supported ‡
No

Processor Graphics
Integrated Graphics ‡
Yes

Graphics Output
Dual HDMI 2.0b w/HDMI CEC

# of Displays Supported ‡
2

Expansion Options
PCI Express Revision
Gen 4 (m.2 22x80 slot); Gen 3 (otherwise)

PCI Express Configurations ‡
PCIe x4 Gen 4: M.2 22x80 (key M)
PCIe x1 Gen 3: M.2 22x42 (key B)
PCIe x1: M.2 22x30 (key E)

M.2 Card Slot (wireless)
22x30 (E)6029000
