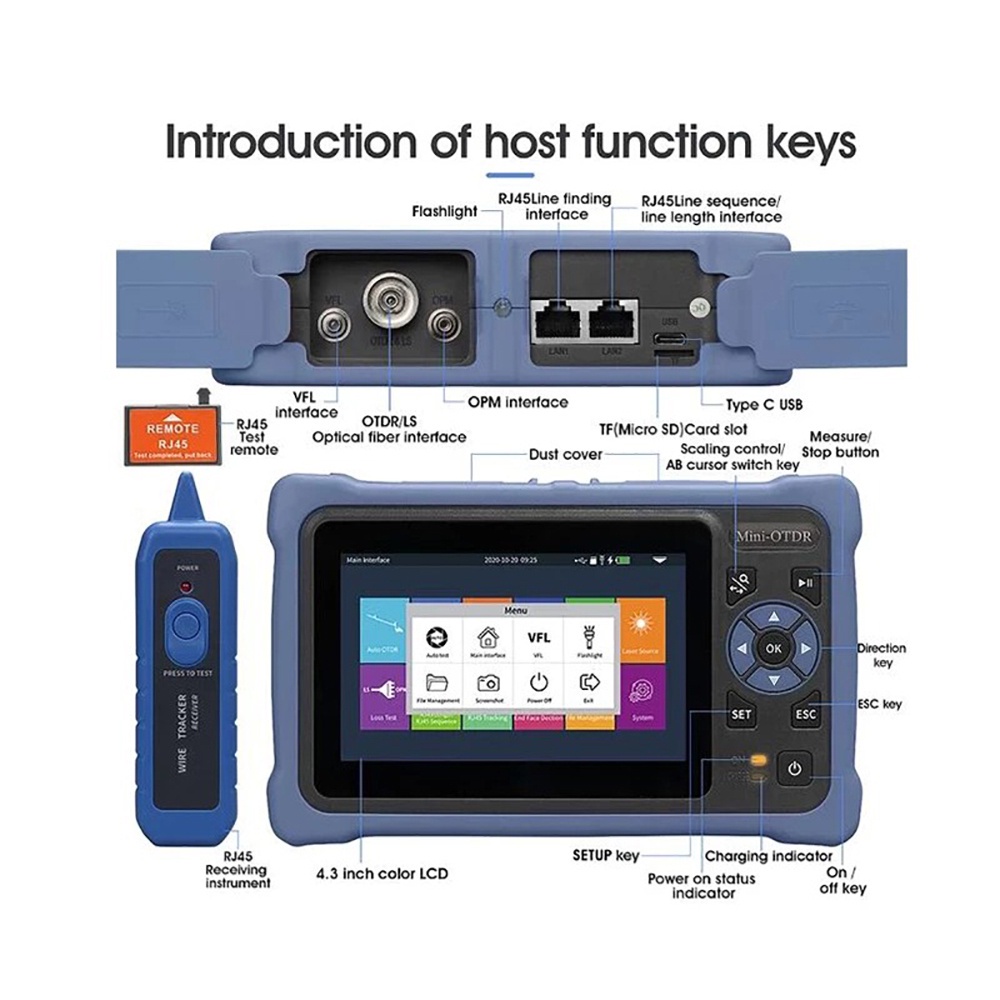

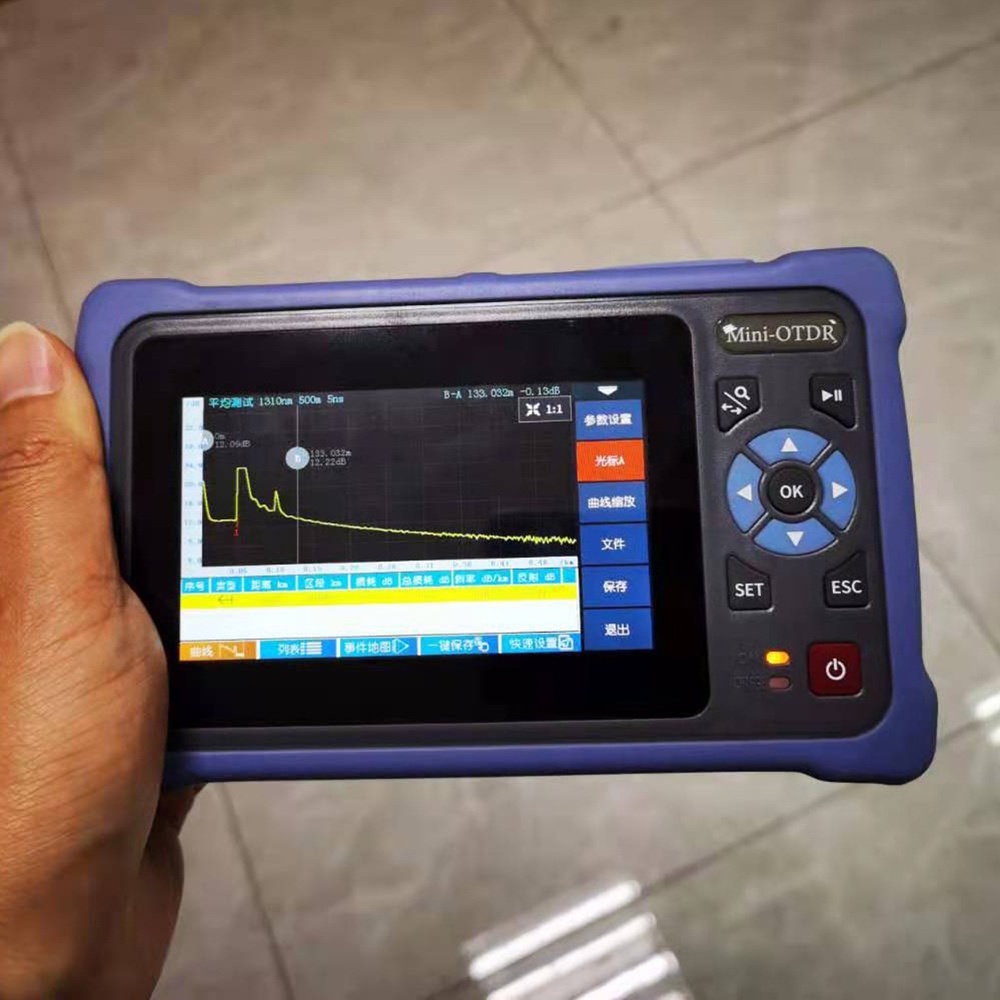

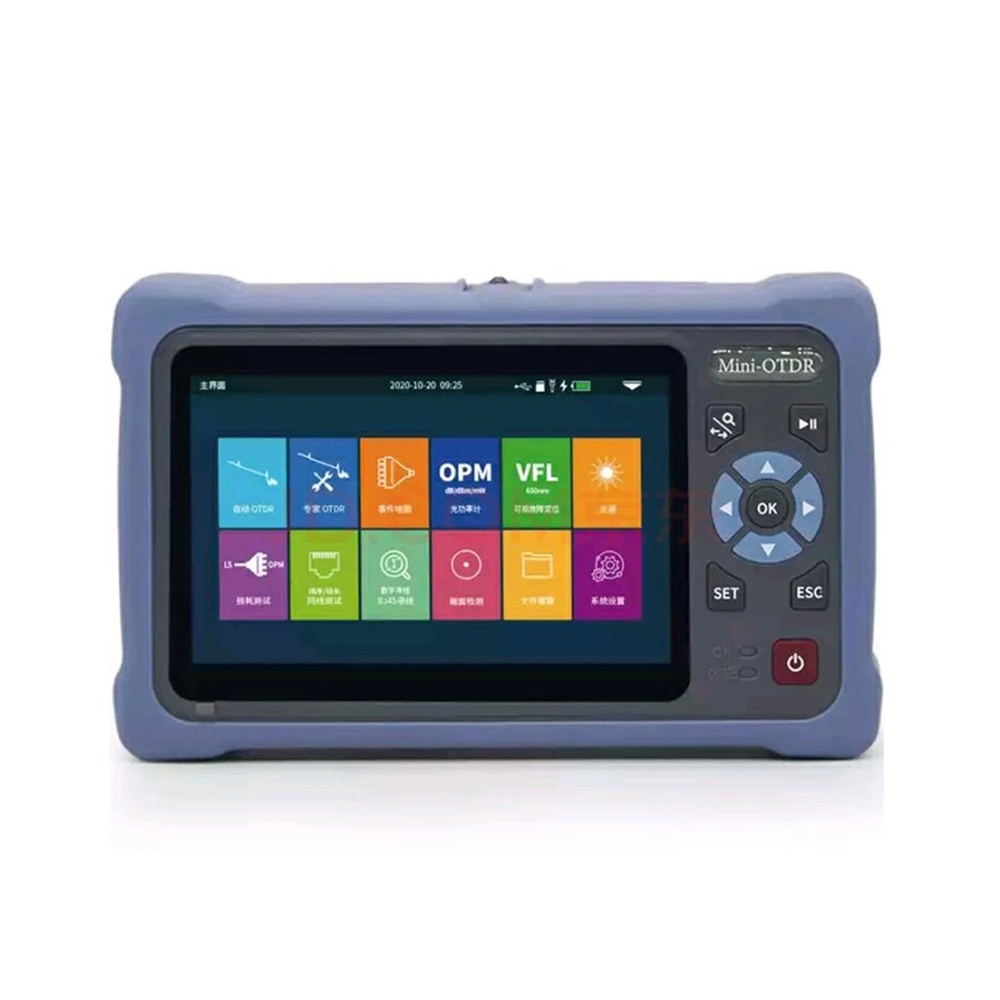

FO - Mini OTDR GT4000D Optical Fiber Tester

Detail FO - Mini OTDR GT4000D Optical Fiber Tester

Meter model: OTDR-4000D

Central wavelength: 1310nm/1550nm + 20nm

Applicable fiber type: single mode

Interface type: FC/PC

Measurement range: 0~60KM

LCD display: 480 x 5.7, 640 inch color LCD

Interface: USB

Output interface: FC/UPC (standard, optional universal joint)

Power supply: AC/DC adapter: voltage range: 100V ~ 240V (1.5A), frequency range:
50/60Hz

DC: 15V ~ 20V (2A

)Internal lithium battery: 7.4V, 4400mAh, battery working time: 10 hours (room
temperature) 3

Interface language: Simplified Chinese / English key switch

Environmental adaptability

Working temperature: 0 C ~ 40 (battery charge: 5 to 40)

Storage temperature: - 40 to 70 DEG C (batteries not included)

Relative humidity: 5%95%, no condensation

Appearance size: 210mm x 100mm x 60mm

Weight: About 1kg




Fungsi:

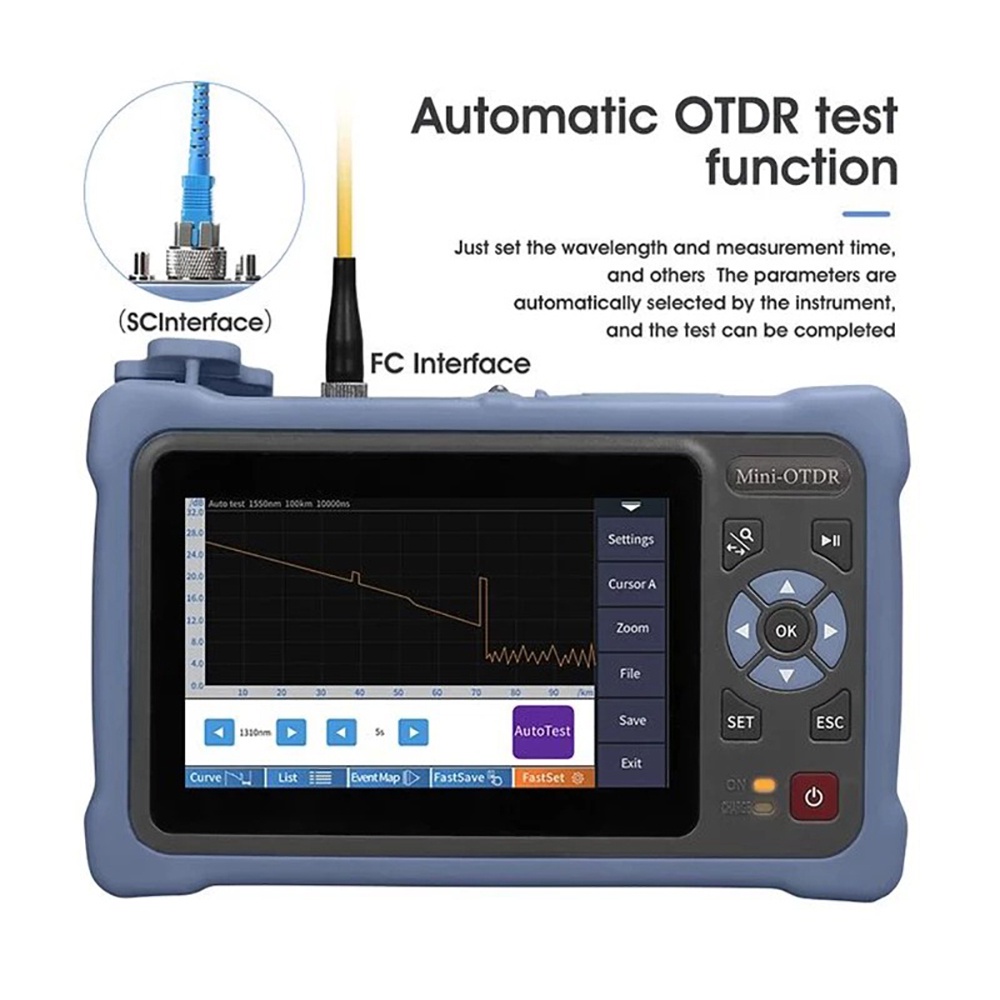

1. OTDR

2. OPM

3. VFL

4. LS

5. NETWORK CABLE TEST

6. FIBER INSPECTION

7. Event map

8. Loss test

9. Flashlight




Kelengkapan :

Unit

Bag

Charger

Remote lan tester

Adapter SC/FC

Kartu garansi

Sertifikat kalibrasi

User manual

Gambar produk
