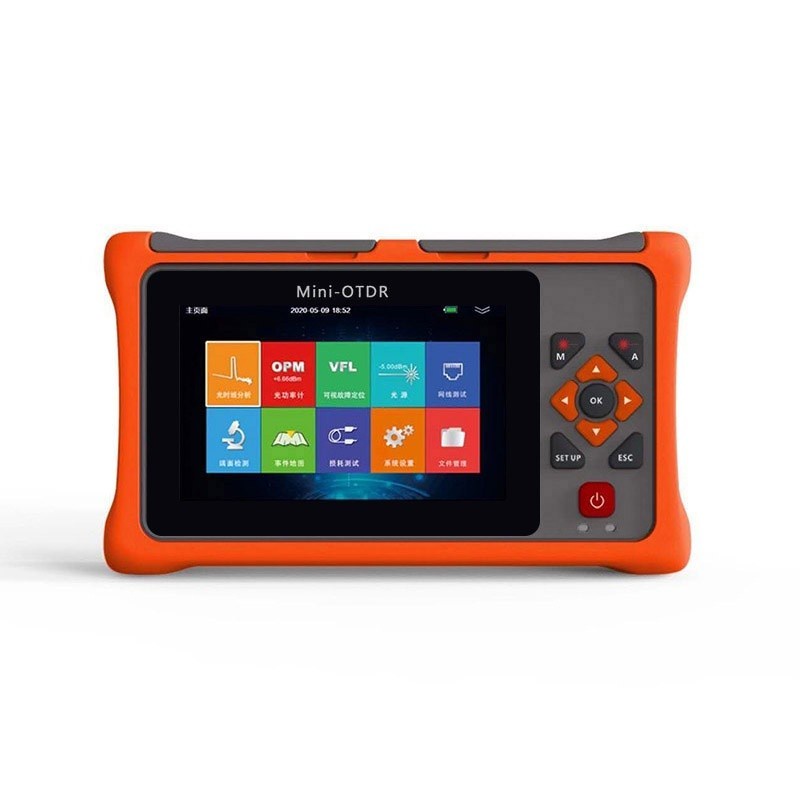

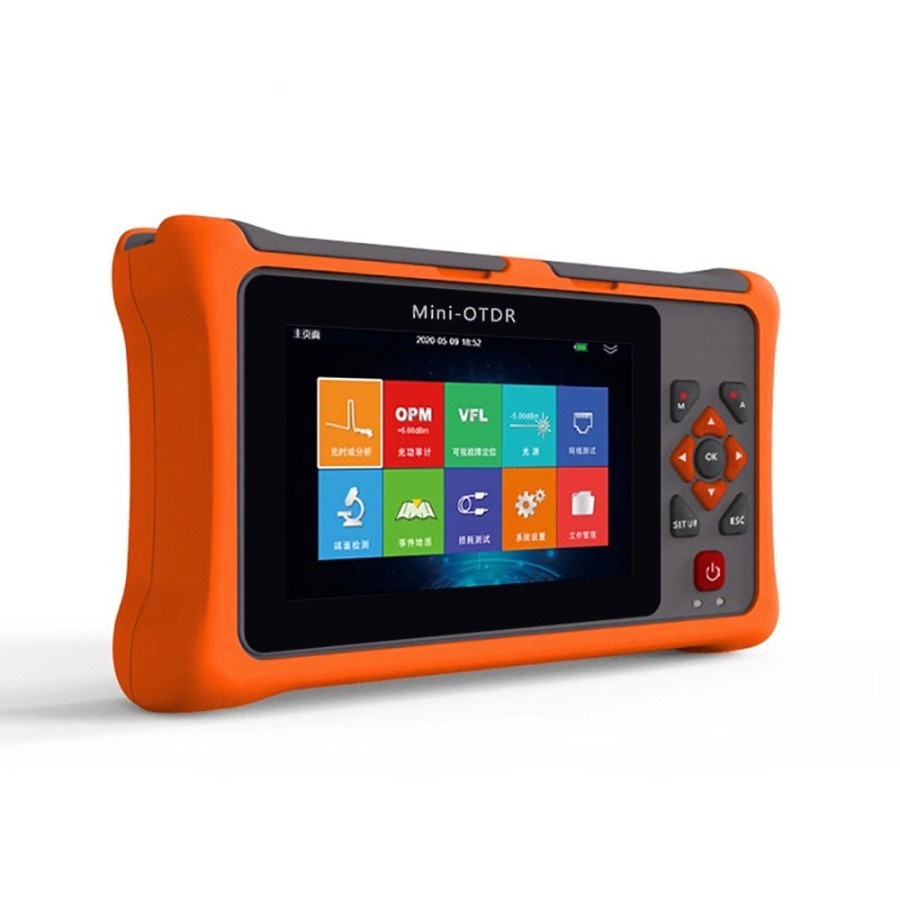

Mini OTDR GT4000 Optical Fiber Tester

Detail Mini OTDR GT4000 Optical Fiber Tester

Mini OTDR GT4000 Optical Fiber Tester Reflectometer
Distance range: Up 100KM

Sampling resolution: 0.2m minimum
Sampling point: 64,000 points
Linearity: =0.05dB/dB
Loss threshold: 0.01dB
Loss resolution: 0.001dB
Range resolution: 0.01m
Distance accuracy: +(0.5+testdistanceX3X 10+samplingesolution)edudingrefractiveinderor)
data storage: More than 80,000 test curves
Red light source: 10mW, CW/2Hz

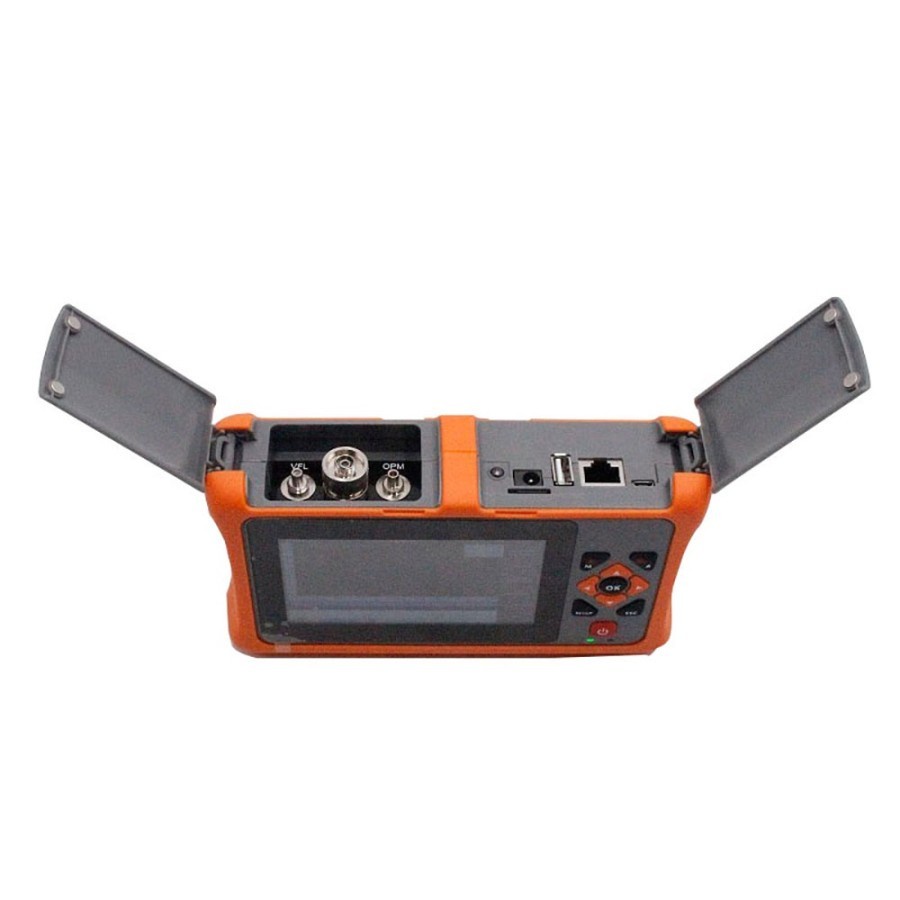

Data interface: 2 USB ports (Type AX 1, Micro usbX 1), SD card
monitor: 4.3 inch TFT-LCD (standard capacitive touch screen)
battery: 3.7V/5200mAh
temperature: Working temperature: -10°C~+55°C, storage temperature: -20°C~ +80°C
humidity: =95% (no condensation)
size: 175X 105X 45mm .
weight: 0.56kg (including battery)
Optical power meter: Type A: -10dBm-~-70dBm, Type B: +26dBm~- 50dBm
Network cable test terminal: Support network cable sequence test

Fungsi:
1. OTDR
2. OPM
3. VFL
4. LS
5. NETWORK CABLE TEST
6. FIBER INSPECTION

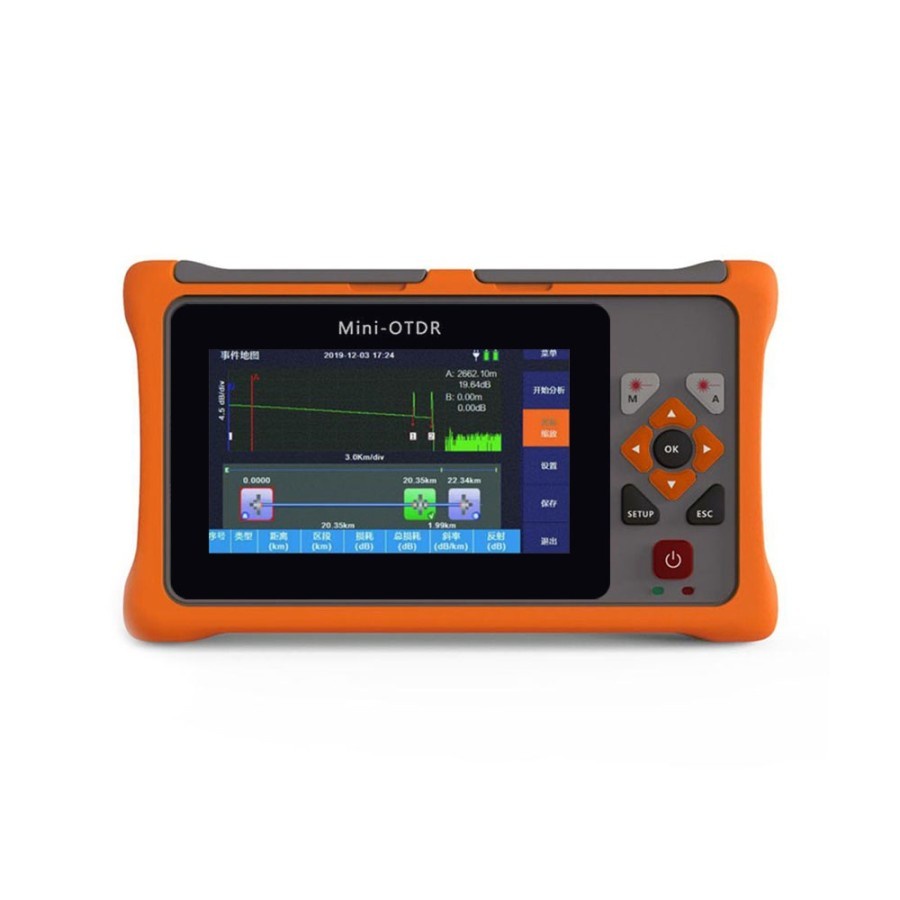

7. Event map
8. Loss test
9. Flashlight

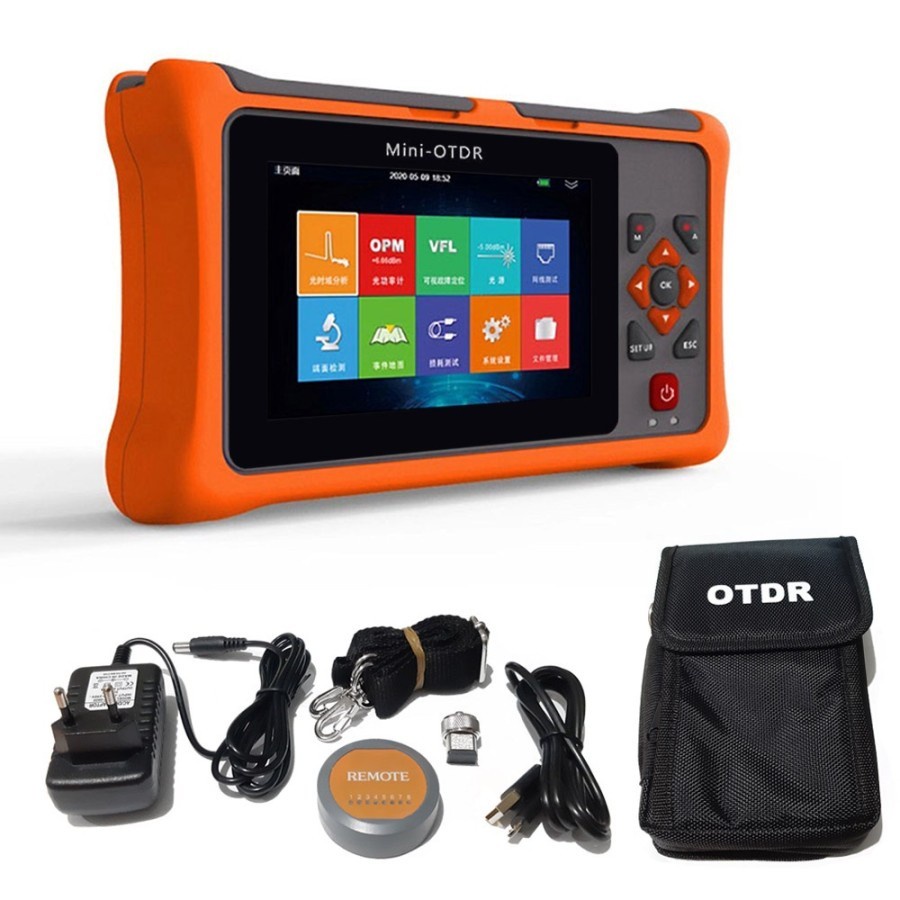

Kelengkapan :
Unit
Bag
Adaptor charger
Kabel micro usb
Remote lan tester
Adapter SC/FC
Kartu garansi
Sertifikat kalibrasi
User manual

Gambar produk
